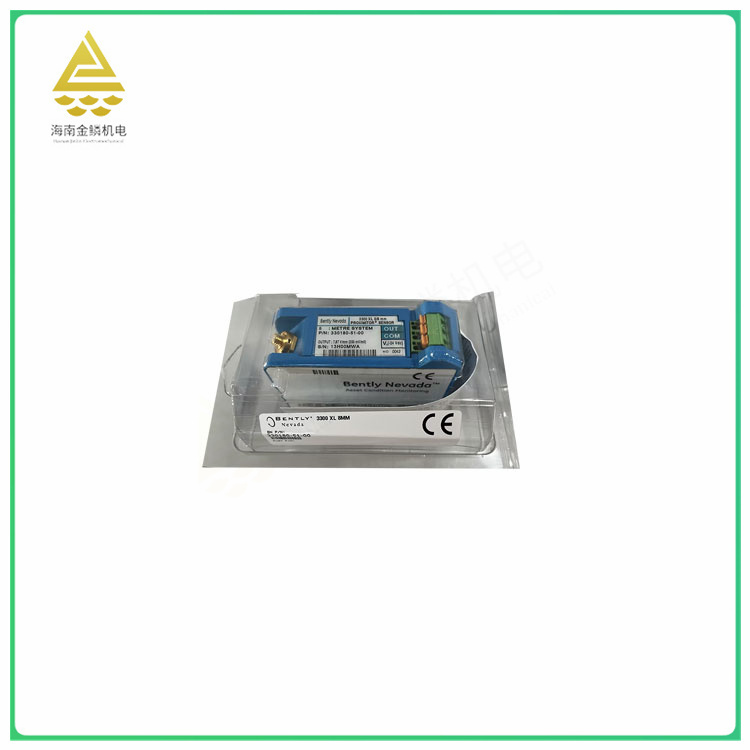

The GE 1 Bently 3300 XL 5/8mm proximity sensor is compatible with all 5 and 8mm 3300 and 3300 XL probes. The 3300 XL proximity sensor features a number of improvements over previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount configuration, which shares the same 4-hole mount "dimensions" as the older Proximitor sensor design. The mounting bases of the options provide electrical isolation and do not require separate isolation plates.
Features:
●ldeal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
●Extended Temperature Range Applications
●Complete Interchangeability of Units and Cabling
●Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The GE 1 Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an
output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The
system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter
system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm
proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench
calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility
includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
