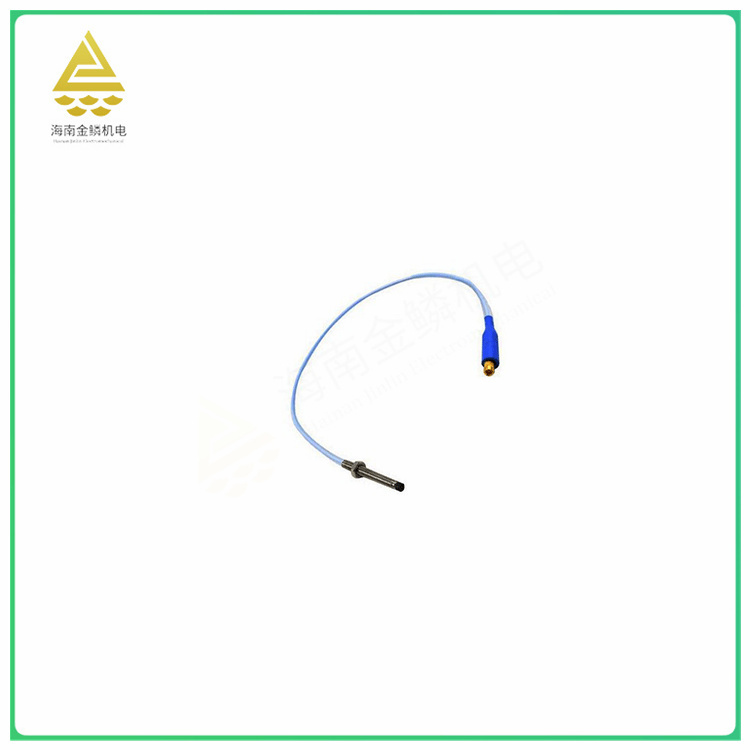

Bentley Bently Nevada 3300 XL NSv series approach eddy current sensor vibration probe, commonly used in centrifugal air compressors, small pumps, motors or fans vibration monitoring, used in steel, electric power, metallurgy, chemical, petrochemical and many other industries. Bentley 3300 XL NSv series approach vibration probe sensitivity of 7.87mV /μm (200 mV/mil) + 6.5%, with suffix -05 or -CN to obtain China instrumentation explosion-proof safety supervision and inspection station explosion-proof certificate, for the need for explosion-proof chemical sites.
Bentley Bently3300 XL NSv Vibration sensor probe 330901, 330902, 330903, 330904, 330905, 330906.330907.330908, 330909, 330910 sensor can be installed in Lower clearance, typical centrifugal air compressor in small areas, the extension cable with the Bently3300 XL NSv vibration sensor probe is available in 5 and 7 m system lengths. Bentley Vibration Sensors and Bently3300 XL NSv precursors and extension cables make up the Bently3300 XL NSv sensor system, with extended cable lengths and probe lengths added together to equal the total length of the sensor system.
Certificate of Origin (COO) can be added
● No thread length option: 00= 0.0 in
● Total shell length option: 40= 4.0in
● Total length options: 05=0.5 m (20 inches)
Connector and cable type options: 02 = Miniature coaxial ClickLoc connector, standard cable
● Agency Approval options: CN = country-specific approval (Quick reference guide for CN Approval Options and on-site notification letter in Download)
● Operating temperature: -34°C to +177°C (-30°F to +351°F)
● Storage temperature: -51°C to +177°C (-60°F to +351*F)
Probe tip material: polyphenylene sulfide (PPS).
● Probe housing material: AISI 304 stainless steel (SST).
● Probe cable specification: 75? Coaxial fluoroethylene propylene (FEP) insulated probe cable, the total length of the probe is as follows: 0.5. 1. 5 or 7 meters.
● Probe pressure: The 3300 NSv probe is designed to seal the pressure difference between the probe tip and the housing. The sealing material of the probe is composed of a fluororubber return 0 ring. Probes are not pressure tested prior to shipment. If you need to test pressure for your application
For force seals, please contact our custom design department
● Shipping weight: 1.5Kg
Warranty period: 12 months!Packing: Original carton.Delivery time: Delivery within 3 days after payment
