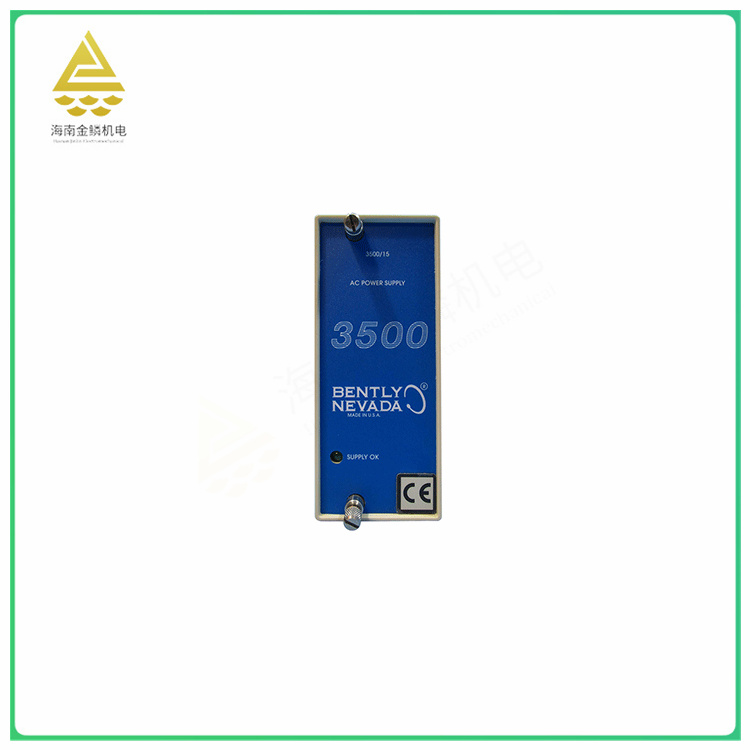

3500/15 Voltage AC/DC power module powered by Bently Nevada. This component is a half-height module and must be installed in a specified slot on the left side of the rack. This component is used as a power module for Bentley Nevada mechanical condition monitoring systems & Legacy 3500 AC power supply, voltage AC PIM, and low voltage AC PIM are incompatible with general purpose AC power supply and PIM (power input module). The Legacy 3500 high voltage and low voltage DC power supply and PIM are incompatible with the Legacy 3500 high voltage and low voltage DC power supply and PIM.
3500/15 features
The 3500 rack can accommodate one or two AC and DC power supplies in any combination. The entire rack can be powered by either power source. When two power supplies are placed in the rack, one of the bottom slots is used as the primary power supply and one of the higher slots is used as the backup power supply. If a power supply is installed, it is used as a backup power supply for a power supply. As long as a power supply is installed, remove or plug in)
Any power module does not affect the running of the rack. Ac and DC power supplies accept a variety of input voltages and convert them into voltages that other 3500 modules can use. The 3500 Series mechanical protection system is equipped with the following power supplies:
● Universal AC power supply
High voltage DC power supply
● Low voltage DC power supply
compatibility
The Legacy 3500 AC power supply, fusion AC PIM, and low-voltage AC PIM are incompatible with the general AC power supply and PIM (power input module).
The Legacy 3500 voltage and low voltage DC power supply and PIM cannot be used with high voltage and low voltage DC power supply and PIM -. 3500/15
Input specification
On-voltage AC
Description - This option uses a universal AC power supply and a Universal AC Power Input Module (PIM).
● Input voltage - nominal 110 to 220Vac
●85 to 264VacRMS
●120 to 373Vacpk
● AC power supplies and power input modules are not compatible with traditional high voltage AC or low voltage AC devices.
High voltage direct current
Description - This option uses both a high voltage DC power supply and a High Voltage DC Power input module (PIM).
● Input voltage -88 to 140 Vdc
Low voltage direct current
Description - This option uses a low voltage DC power supply and a low voltage DC power Input module (PIM).
● Input voltage -20 to 30 Vdc
Physical characteristics
● Power module size: 120.7mmx 50.8mmx 251.5mm (H x W x D)
● Power module weight: 1.39kg
● Power input module size: 120.7mm x 25.4mmx 114.3mm (H x W x D)
● Power input module weight: 0.34kg
