Description

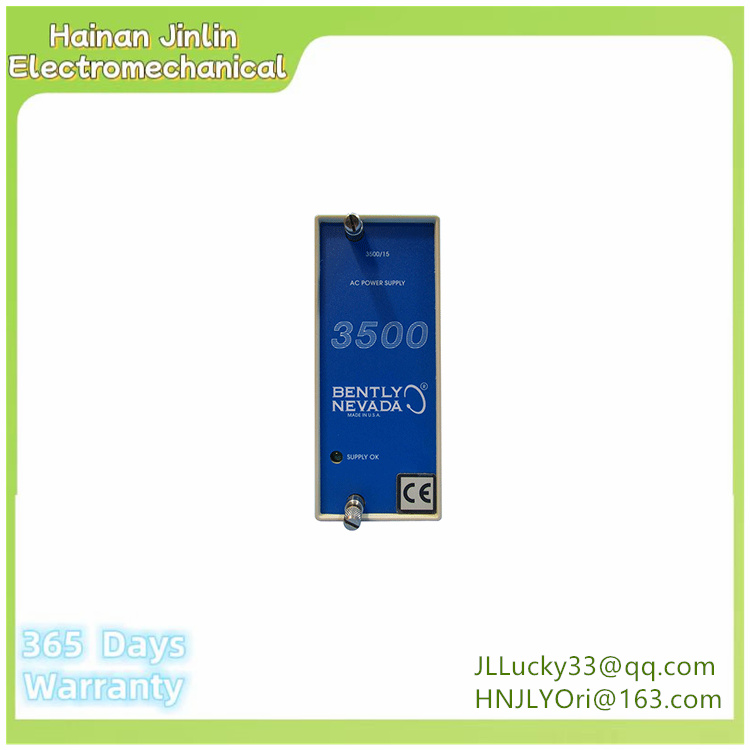

The 3500/15 AC and DC Power Supplies are half-height
modules and must be installed in designated slots on the left
side of the rack. The 3500 rack can contain one or two power
supplies with any combinations of AC and DC. Either supply
can power a full rack.
Dimensions
(Height x width x depth)
120.7 mm x 25.4mm x 114.3mm
Weight
4.75 in x 1.0 in x 4.5 in
0.34 kg
0.75 lb
Description ThisoptionusestheACpowersupplyandthe
HighVoltageAC PowerInputModule(PIM).
Input
voltage
220Vacnominal
175to264Vac
rms247to373Vacpk
InstallationsusingACPowerInputModules(PIM)
priortoRev.RandACPowerSupplyModulesprior
toRev.Mrequireaninputvoltageof175to250
Vacrms.
Input
frequency 47to63Hz
Part
Number
Description
127610-01 AC Power Supply Module
125840-01 High Voltage AC Power Input Module
125840-02 Low Voltage AC Power Input Module
106M1079
01
106M1081
01
Universal AC Power Supply Module
Universal AC Power Input Module
129486-01 High Voltage DC Power Supply Module
129478-01 High Voltage DC Power Input Module
133292-01 Low Voltage DC Power Supply Module
133300-01 Low Voltage DC Power Input Module
01720025 Replacement Fuse (for both AC Power Input Module
and High Voltage DC Power Input Modules)
01720045 Replacement Fuse (Low Voltage DC Power Input
Module)
113M0744
Replacement Fuse
Fast blow rated at 5A/250 Vac
Size 6.3 x 32 mm
(Universal AC Power Input Module)
129767-01 Power Supply Operations and Maintenance
Manual
102M3992 Replacement connector for Universal AC Power
Input Module and DC Power Input Modules
