● Manufacturer: Bentley Nevada
● Product Number :3500/32-01-CN.

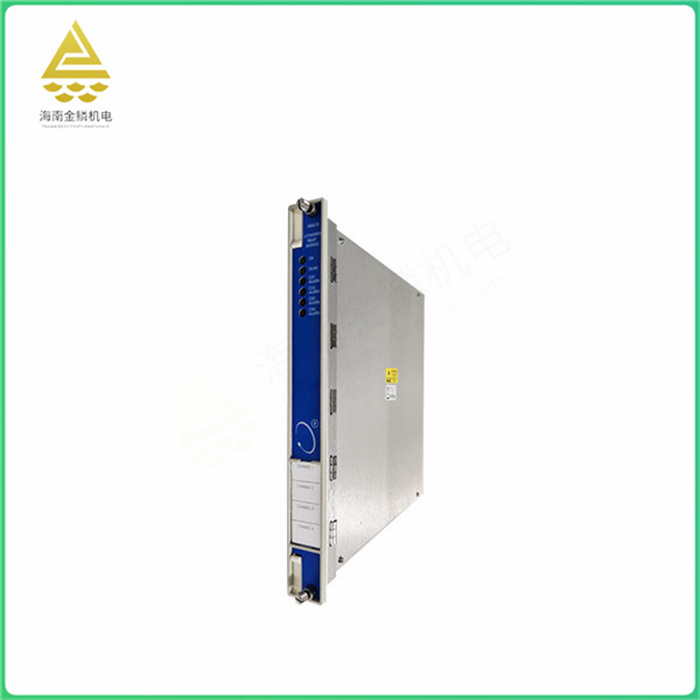

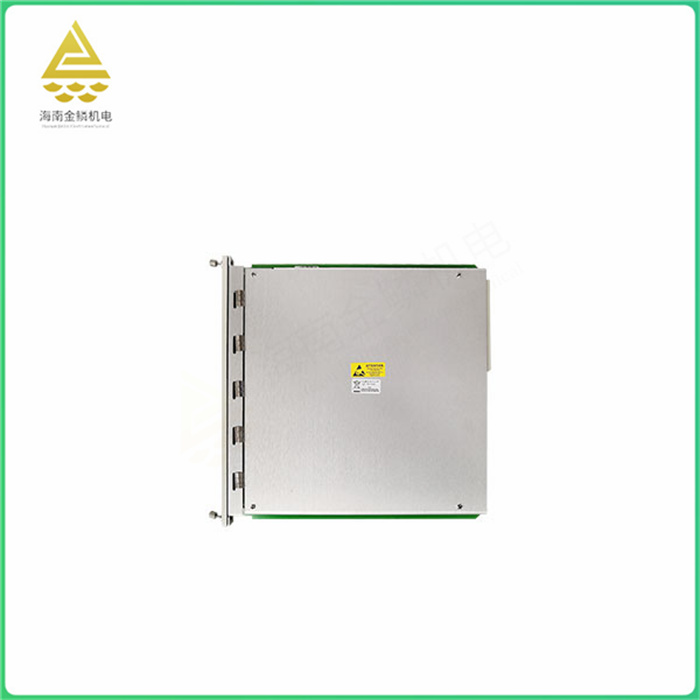

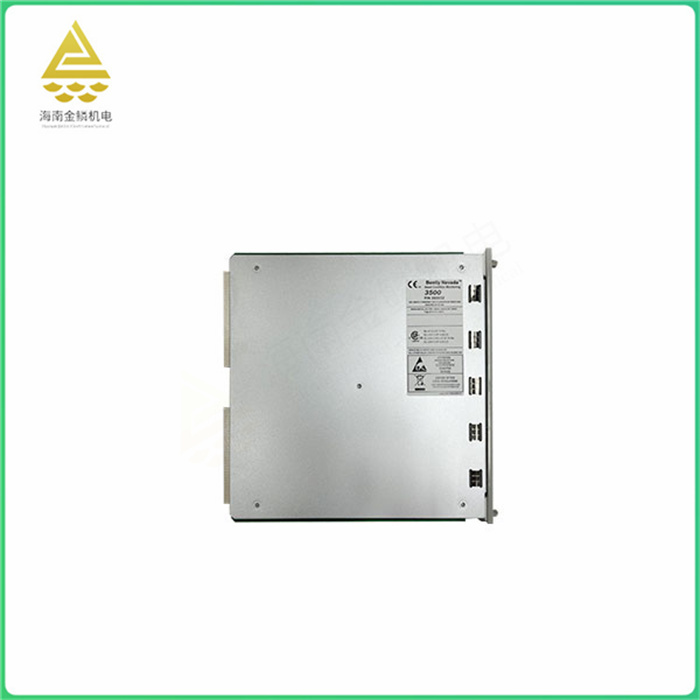

● Product model :3500 4 channel relay module
● Made in the USA
● Output module :01 = 4 channel relay output module
The 4-channel relay module is a full-height module that provides four relay outputs. Any number of 4-channel relay modules can be placed in any slot on the right of the transient data interface module. 4- of each
The output channel relay module can be programmed independently to perform voting logic. Each relay used on the 4-channel relay module includes alarm drive logic. Alarm driver logic is programmed using AND and or
Logic, and can use a combination of alarm inputs (alarm and danger status), normal, or from any monitoring channel or monitor channel in any rack. You can program the alarm drive,
Use the 3500 framework to configure software to meet your application needs.
A 4-channel relay module is a common relay module that has 4 independent relay channels that can be used to control 4 independent load circuits. The module is usually composed of a group of normally closed contacts and a group of normally open contacts. The on-off control of the load circuit can be realized by controlling the closing and breaking of the contacts.
The 4-channel relay module has the advantages of high reliability, high voltage and high current, and can adapt to different industrial environments and application requirements. It is commonly used for data acquisition, processing and control in industrial automation control systems, as well as other application scenarios requiring fast data processing.
When using the 4-channel relay module, it is necessary to select the appropriate model and specification according to the actual demand, and install and use it correctly according to the instructions. At the same time, it is also necessary to pay attention to the load capacity and control signal requirements of the module to ensure that the module can work normally and ensure safety.
The advantages of the 4-channel relay module include:
High reliability: The use of high-quality relays, with a long service life and low failure rate, can ensure stable operation in harsh environments.
High voltage: can withstand high voltage and current, suitable for the control of various load equipment.
High current: It can provide a large load current to meet the control requirements of various load equipment.
High safety: with over current protection and short circuit protection function, can effectively protect the load equipment and personal safety.
Strong versatility: suitable for a variety of different types and specifications of load equipment, convenient for users to expand and upgrade.
Easy maintenance: It has a simple interface and easy to replace the relay, which is convenient for users to maintain and repair.
In short, the 4-channel relay module has the advantages of high reliability, high voltage, high current, high safety, strong versatility, easy maintenance, etc., and is widely used in the data acquisition, processing and control of industrial automation control systems, as well as other application scenarios requiring fast data processing.
