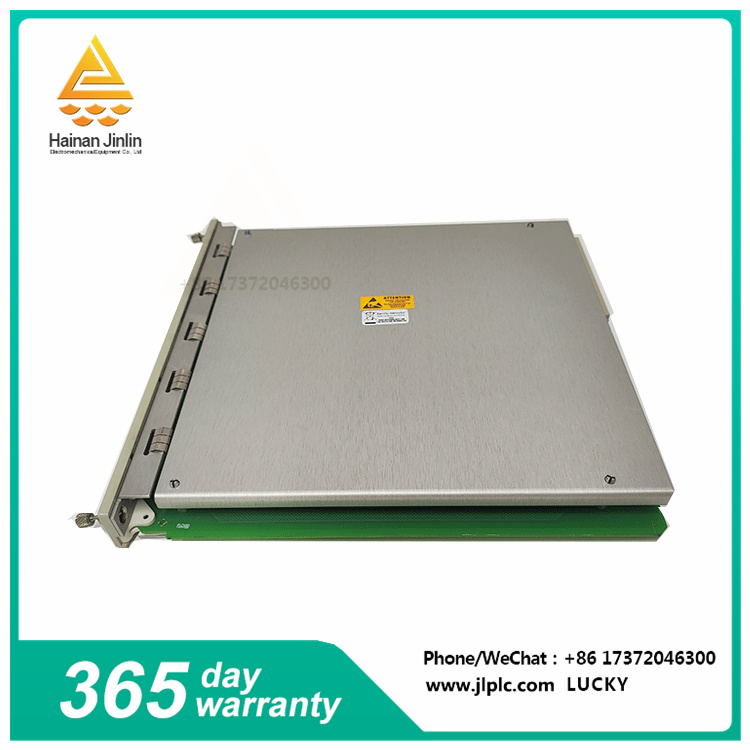

Brand: Bently Nevada
Product Number: 3500/33-01-00
Product Type: 16 channel relay module
Made in the USA
Output module: 01 = 16 channel relay output module
Agency approval option: 00 = None
Dimensions (D x W x H) : 24.20cm x 2.44cm x 24.10cm
Weight: 0.70Kg
Shipping weight: 2 Kg
3500/33-PWA149986-01 16 channel relay module is a 16 relay output and is a full height module for mechanical condition monitoring systems. In any slot to the right of the Transient Data Interface (TDI) module, you can place any number of 16-channel relay modules. The output of the 16-channel relay module can be individually programmed to perform the voting logic. The alarm driver logic is contained in each relay of the module. Alarm driver logic is programmed using AND and OR logic and may include the following:
Inputs that cause alarms (alarm and danger status)
Not so well
Measure variables individually from any monitor channel in the rack or any combination of monitor channels
