● Manufacturer: Bentley Nevada
● Product Number :3500/33-01-CN

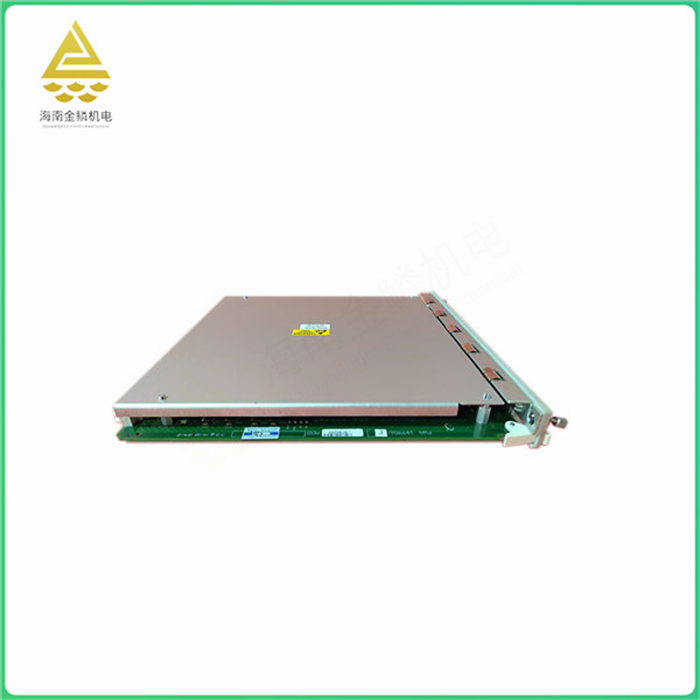

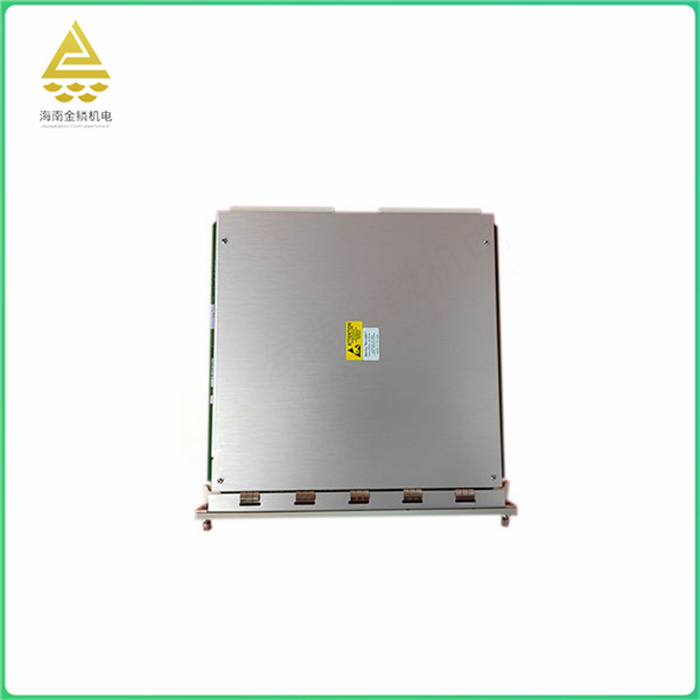

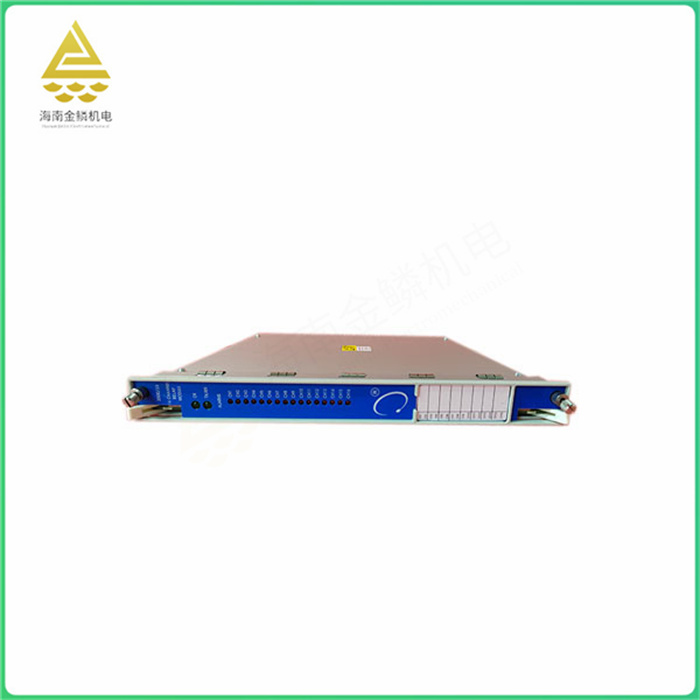

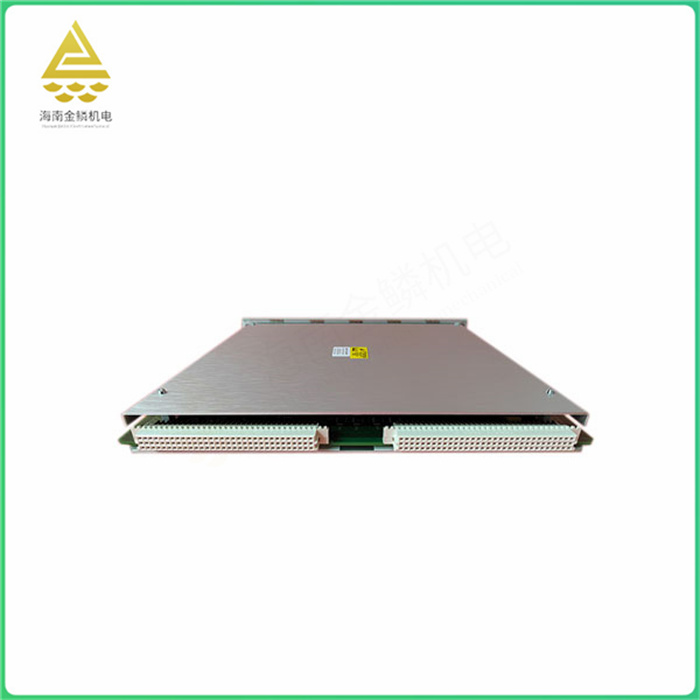

● Product Model :3500/33 16-channel relay module
● Made in the USA
Output module :01 = 1 6 relay output module
The 16 channel relay module is a full height module that provides 16 relay outputs. Any number of 16-channel relay modules can be placed in the right slot of the interface module in any cabinet. Each output 16-channel relay module can be independently programmed to perform the required voting logic.
Each relay used on a 16-channel relay module includes "alarm drive logic". The programmed alarm driver logic adopts with or without logic, and rivers using alarm inputs (alarm and danger status), not OK, or any combination of monitor channels or monitor channels from an individual ppl rack. The user uses 3500 rack configuration software to program this alarm driver to meet the specific requirements of the application.
A 16-channel relay module is a common relay module that has 16 independent relay channels that can be used to control 16 independent load circuits. The module is usually composed of a group of normally closed contacts and a group of normally open contacts. The on-off control of the load circuit can be realized by controlling the closing and breaking of the contacts.
The 16-channel relay module has the advantages of high reliability, high voltage and high current, and can adapt to different industrial environments and application requirements. It is commonly used for data acquisition, processing and control in industrial automation control systems, as well as other application scenarios requiring fast data processing.
When using the 16-channel relay module, it is necessary to select the appropriate model and specification according to the actual demand, and install and use it correctly according to the instructions. At the same time, it is also necessary to pay attention to the load capacity and control signal requirements of the module to ensure that the module can work normally and ensure safety.
The current load capacity of the 16-channel relay module will vary depending on the model and specification. In general, the current load capacity of the 16-channel relay module is between tens of amperes and hundreds of amperes. The specific load capacity depends on the model and specifications of the module, and the user can choose the relay module with the appropriate load capacity according to the actual needs. At the same time, it is also necessary to pay attention not to exceed the load capacity of the module during use to ensure the normal operation and safety of the module.
