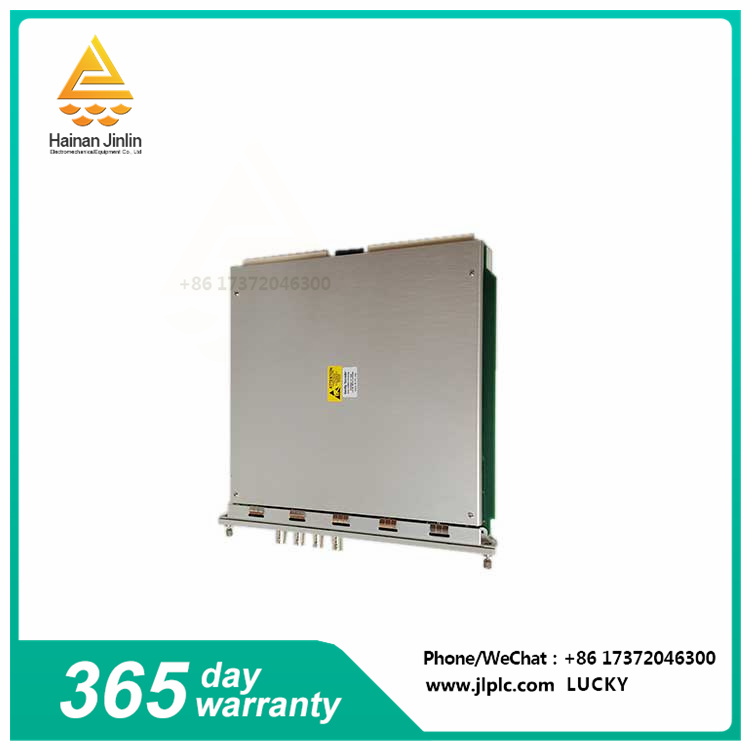

Brand: Bently Nevada
Product Number: 3500/45-01-00
Product Type: 3500/45 Position monitor
Made in the USA
Certificate of Origin (COO) can be added
I/O module: 01 = Position with internal terminating I/O module (Proximitor, RPT, DC LVDT)
Agency approval option: 00 = None
Humidity: 95%, no condensation.
Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
Agency approval option: 00 = Not required
Storage temperature: -40 °C to +85°C (-40 °F to +185 °F).
Rack space: One full-height front slot.
Dimensions (H x W x D), approximately 24.13 cm x 2.44 cm x 24.18 cm (9.50 inches x 0.96 inches x 9.52 inches).
Weight: 0.91 Kg
Shipping weight: 2 Kg
The 3500/45-01-00 is a differential expansion/axial position monitor from Bently Nevada, designed to monitor the differential expansion and axial position changes of large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, mills, gearboxes, motors, etc. This monitor has a wide range of applications in power, metallurgy, chemical, petrochemical and other industries.
The 3500/45-01-00 is a four-channel monitor capable of receiving an input signal from the eddy current sensor and using that signal to drive an alarm. It uses a displacement input/output module to receive input signals from Bentley Nevada sensors such as eddy current sensors (25, 35 and 50mm extended range sensors and LVDTS). Programmed for 3500/45 with the 3500 framework configuration software, any of the following functions can be performed: differential expansion, compensated input differential expansion, housing expansion (CH3, CH4).
In addition, the monitor also has some key technical parameters, such as frequency range 10 Hz to 1 KHZ, sensitivity 100 mV/g, measurement axis X, Y, Z, etc. These parameters ensure that the monitor provides accurate and reliable performance in a variety of application scenarios.
