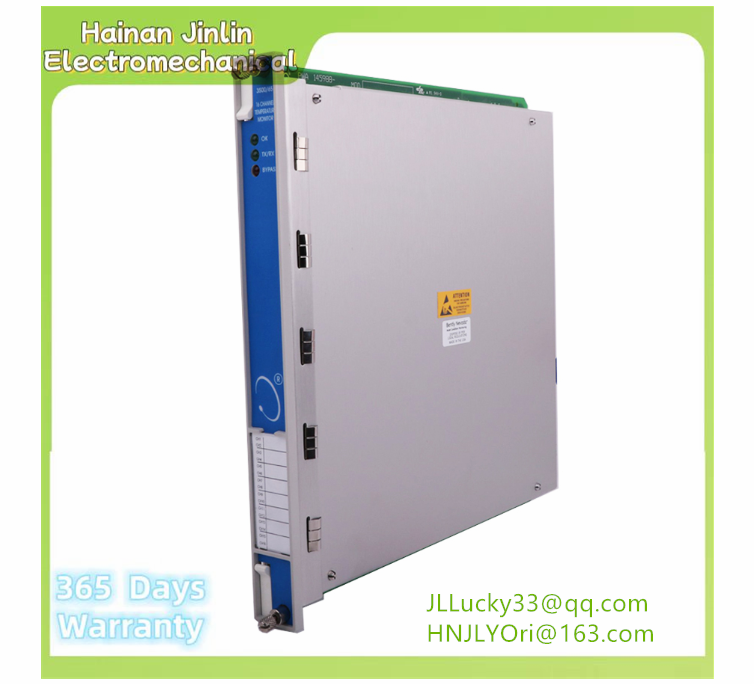

The 3500/65 monitor provides 16 channels of temperature
monitoring and accepts both resistance temperature
detector (RTD) and isolated tip thermocouple (TC)
temperature inputs. The monitor conditions these inputs and
compares them against user-programmable alarm
setpoints.
The monitor is programmed using the 3500 Rack
Configuration Software. You can configure the 16-Channel
Temperature Monitor to accept isolated tip thermocouples,
3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
In Triple Modular Redundant (TMR) configurations, you must
install temperature monitors in groups of 3 adjacent
monitors. In this configuration the monitor uses 2 types of
voting to ensure accurate operation and to avoid single
point failures.
Type E -100°C to +1000°C,
(-148°F to +1832°F)
Type J 0°C to +760 °C
(32°F to +1400 °F)
Type K 0°C to +1370°C
(32°F to +2498°F)
Type T -160°C to +400°C,
( -256°F to +752°F)
Main
Module
1 full-height front slot
I/O Modules 1 full-height rear slo
