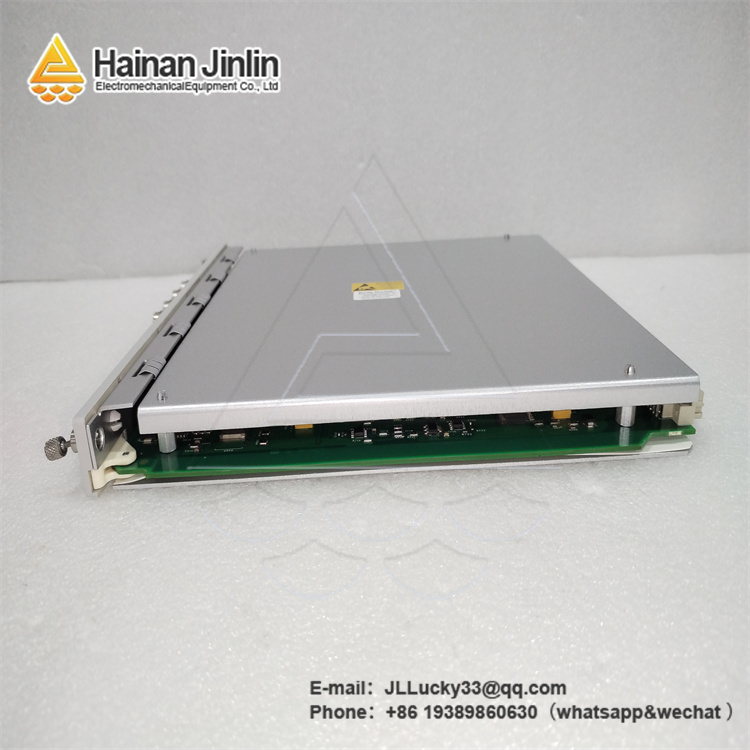

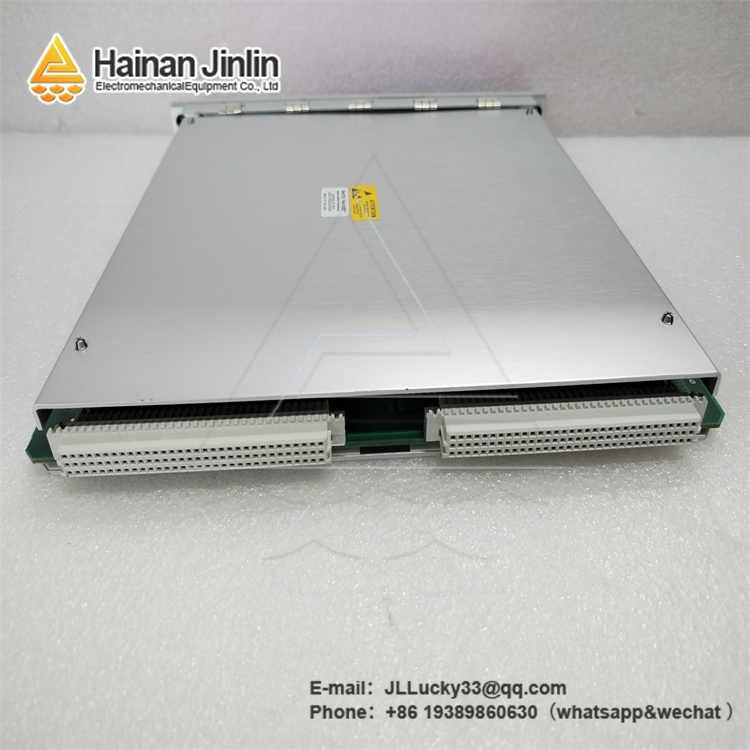

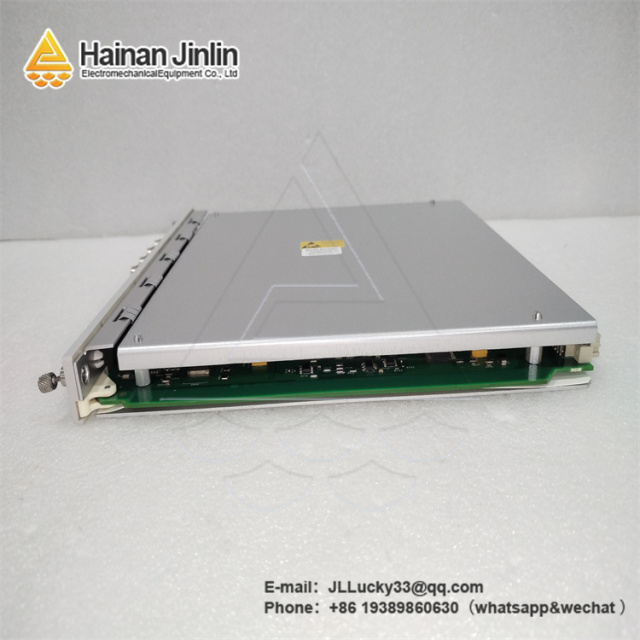

| Product Model | 3500/77M-03-00 |
| Manufacturer | Bently Nevada |
| Product Type | Multi-Channel Vibration Monitoring Module |
| Input Type | Proximity probes, accelerometers |
Product Overview
The BENTLY 3500/77M-03-00 is a multi-channel vibration monitoring module engineered for critical rotating machinery protection in demanding industrial environments. As part of the Bently Nevada 3500 Series, the 3500/77M-03-00 provides high-fidelity monitoring of vibration, shaft position, and process signals, enabling early detection of mechanical anomalies and supporting predictive maintenance programs. This module is ideal for turbines, compressors, pumps, and generators in power generation, petrochemical, and heavy industrial applications.
With its advanced signal processing and multi-channel capability, the BENTLY 3500/77M-03-00 integrates seamlessly into the 3500 Series chassis, providing scalable machinery protection with high accuracy and reliability. Its rugged design ensures stable operation under extreme temperature, vibration, and humidity conditions, making it suitable for continuous monitoring in critical systems.
Hainan Jinlin Mechanical & Electrical is a trusted distributor of industrial automation and machinery protection equipment. Leveraging extensive industry knowledge, we provide professional technical support and high-quality pre-sales and after-sales services to ensure optimal performance of your monitoring systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3500/77M-03-00 |
| Manufacturer | Bently Nevada |
| Product Type | Multi-Channel Vibration Monitoring Module |
| Input Type | Proximity probes, accelerometers |
| Channels | 3 independent vibration channels |
| Measurement Range | ±50 mils peak-to-peak |
| Frequency Range | 0.5–10 kHz |
| Alarm Functions | High, low, and shutdown alarms |
| Mounting Type | 3500 Series rack-mounted chassis |
| Operating Temperature | -40°C to +85°C |
| Communication Interface | 3500 Series bus / Serial |
Key Features and Benefits
The BENTLY 3500/77M-03-00 is designed for precise and reliable machinery protection. Its multi-channel capability allows simultaneous monitoring of multiple bearings or rotating shafts, enhancing situational awareness and system reliability. Each channel provides independent vibration and displacement measurements, enabling flexible configuration for various machinery types.
The module features advanced signal processing for high accuracy in detecting imbalance, misalignment, bearing defects, and other mechanical issues. It supports multiple alarm thresholds, including alert and shutdown, to protect critical assets from damage. Rugged construction and IP-rated components ensure stable operation in harsh industrial conditions, including high vibration, temperature extremes, and humidity.
Integration with Bently Nevada’s 3500 Series system provides real-time monitoring, historical data logging, and comprehensive diagnostics. The module supports predictive maintenance, reduces unplanned downtime, and extends machinery life. Compact and modular, the 3500/77M-03-00 facilitates easy installation, calibration, and maintenance in multi-channel monitoring setups.
Related Models
3500/77M-01-00 – Base multi-channel module with fewer alarm and channel features.
3500/77M-02-00 – Earlier version with firmware support for legacy systems.
3500/70M-01-00 – Single-channel vibration monitoring module for standard machinery.
3500/72M-01-00 – Vibration module with extended frequency range for high-speed machines.
3500/76M-01-00 – Multi-channel module for complex machinery configurations.
3500/71M-01-00 – Shaft displacement module for integration with vibration monitoring.
3500/77M-03-01 – Firmware-upgraded version with improved diagnostics.
3300 XL Series Modules – Legacy modules compatible for system migration.
3500/64M-01-00 – Optimized for pump and compressor monitoring.
3500/65M-01-00 – High-speed monitoring module suitable for turbine applications.
Typical Application Areas
Power Generation: Turbines, generators, and auxiliary equipment.
Oil & Gas: Compressors, pumps, and rotating machinery monitoring.
Petrochemical & Chemical: High-reliability process machinery vibration protection.
Industrial Manufacturing: Motors, gearboxes, and critical production equipment.
All products include a one-year warranty and professional pre-sales and after-sales support. If the model you require is unavailable, please contact us directly for expert assistance.
