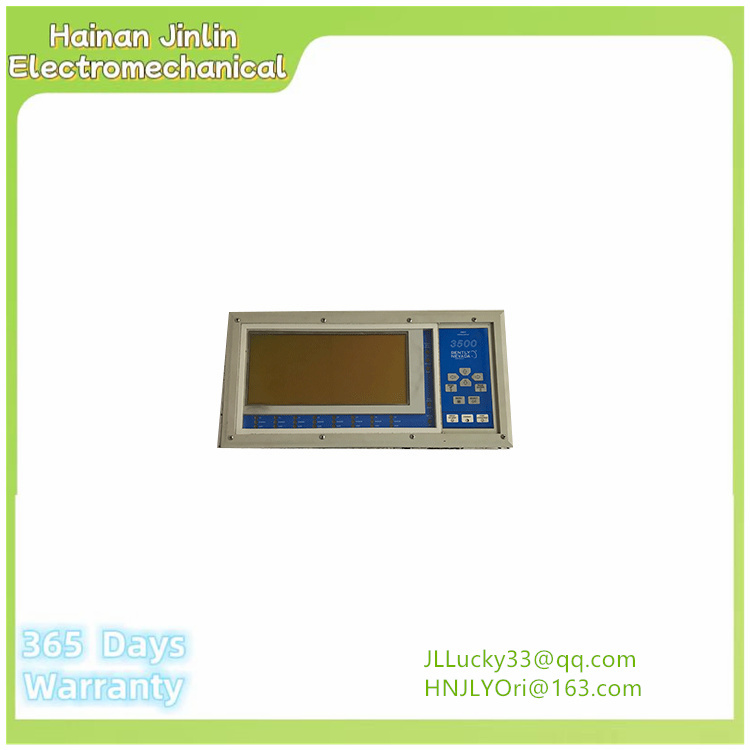

The 3500/93 system display is designed to meet the requirements of the American Petroleum Institute (API) Standard 670 and provides a local or remote visual indication of all 3500 mechanical protection system information in the rack, including: System Event List Alarm Event List All channels, monitors, relay modules, key phaser * modules or tachometer module data 3500/93 System displays are configured using 3500 rack configuration software.
The display can be mounted in any of four ways: Front mounted - The display is mounted directly on the front panel of any full-size 3500 rack using a special hinge bracket. This allows access to the rack's buffered output connectors and user interface buttons and switches without disconnecting or disabling the display. Note: For this installation option only, the display interface module (DIM) must be installed in slot 15 (far right slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.
2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and
located up to 100 feet away from the 3500 System. (Up to 4000 feet
away from the 3500 System when using the External Power Supply).
3. Panel Mounting – display is mounted in a panel cutout located in the
same cabinet or up to 100 feet away from the 3500 System. (Up to 4000
feet away from the 3500 System when using the External Power Supply).
4. Independent Mounting – display is mounted flush against a wall or
panel and located up to 100 feet away from the 3500 System. (Up to
4000 feet away from the 3500 System when using the External Power
Supply).
