In order to are some application areas that may be suitable for the Bently 3500/42M 176449-02 shaft vibration module:
1. Energy industry: The module may be used in power plants, power plants and other energy facilities to monitor the vibration of generators, turbines, wind turbines and other equipment
Move to ensure its normal operation and safety.
2. Oil and gas industry: In the process of oil and gas extraction, vibration monitoring modules can be used to control centrifugal compressors, centrifugal pumps, etc
Vibration of equipment to maintain the stability of production.
3. Chemical industry: This module may be used in the chemical industry to monitor the vibration of reactors, centrifuges, agitators and other equipment.
4. Manufacturing: In the manufacturing sector, such modules may be used to monitor the vibration of machine tools, production lines and other production equipment to ensure product quality
Volume and productivity.
5. Transportation: In the field of transportation, this module may be used to monitor the vibration of vehicles such as trains, ships, and aircraft to ensure safety
Total sum performance.
6. Vibration analysis and fault diagnosis: This module is often used in conjunction with vibration analysis software to help engineers analyze vibration data and identify potential problems
Failure, and develop a maintenance plan.

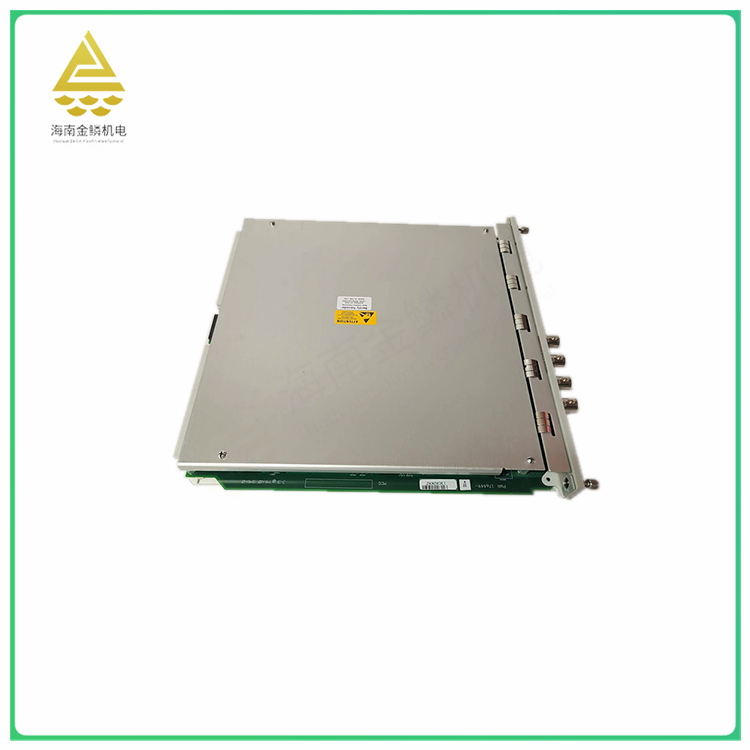

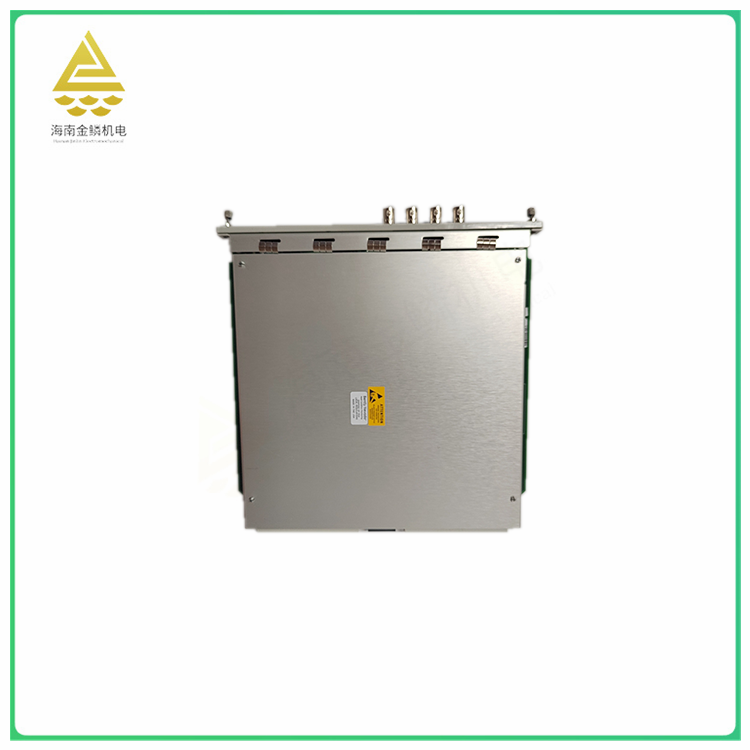

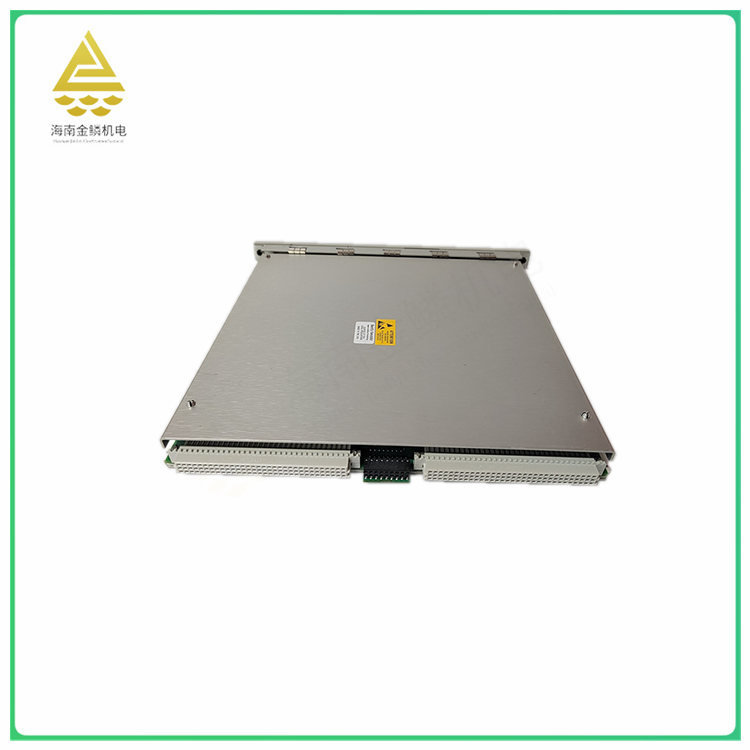

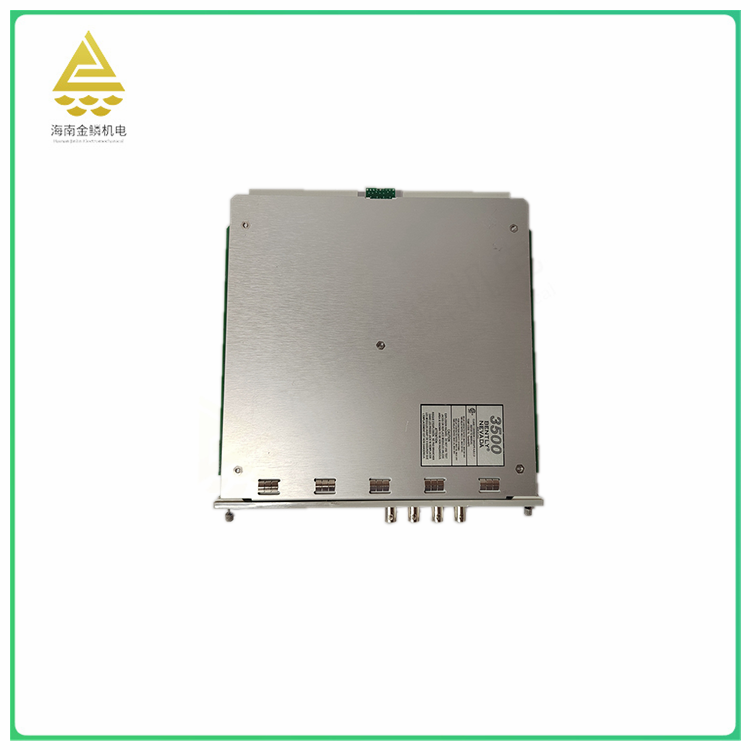

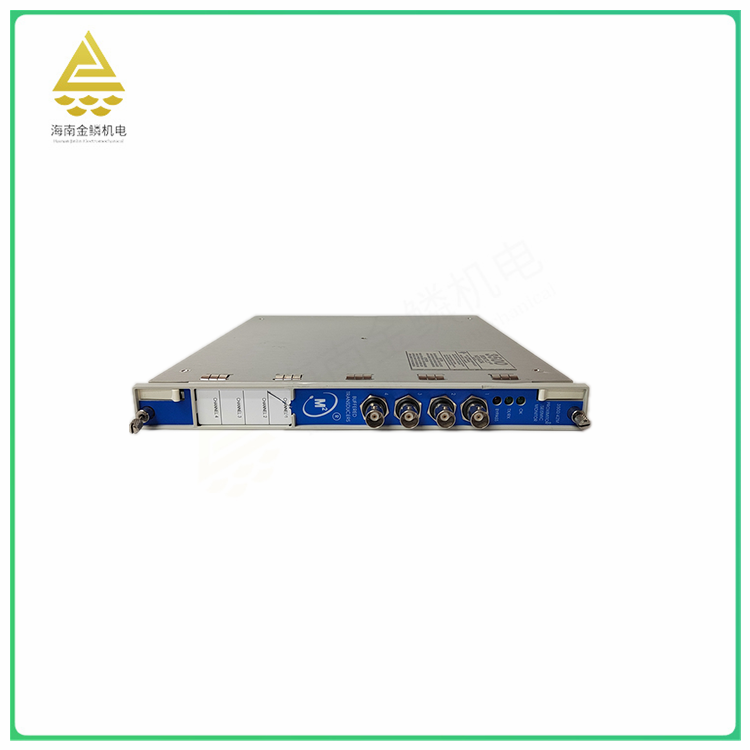

3500/42M-176449-02 is a displacement/velocity/acceleration monitor module manufactured by Bently Nevada (Bentley Nevada). This module has a configured 4-channel monitoring function, in addition to all functions of 3500/40M, it can also receive speed, acceleration and dual probe (speed and displacement) input types and their associated signal adjustments such as filtering and integration. It also performs differential signal processing to extract the housing vibration signal from the relative shaft vibration, providing absolute shaft measurement information for some large gas and steam turbines.
The main functions of this module include:
Displacement, speed and acceleration monitoring: The module can receive different types of input signals, including displacement, speed and acceleration, and carry out real-time monitoring and analysis of the operating state of the machine.
Signal adjustment: The module can filter and integrate the input signal to eliminate noise and interference and improve the accuracy and reliability of the signal.
Differential signal processing: This module has a differential signal processing function, which can extract the housing vibration signal from the relative vibration of the shaft, and provide absolute shaft measurement information for some large gas and steam turbines.
Multi-channel monitoring: The module has a 4-channel monitoring function of configuration, which can simultaneously monitor the operating status of multiple devices and improve monitoring efficiency.
High reliability and stability: The module uses high-quality electronic components and materials, which have been rigorously tested and verified, with high reliability and stability, and can operate stably in harsh industrial environments for a long time.
When using this module, you need to note the following:
Ensure that the input signal type and range of the module matches the output signal type and range of the monitoring device to avoid signal distortion or damage.
When installing and configuring modules, follow the requirements of the product manual to ensure proper connection and configuration.
In the process of use, the appearance and operating status of the module should be checked regularly to discover and solve potential problems in time.
In harsh industrial environments, appropriate protective measures should be taken, such as adding dust cover, isolation protection, etc., to protect the module from damage.
In short, 3500/42M-176449-02 is a powerful displacement/speed/acceleration monitor module, suitable for a variety of industrial automation control systems, can be real-time monitoring and analysis of the running state of the machine, provide accurate measurement information and control signals, to ensure the stable operation of the control system.
