Brand: GE
Features: Simple and flexible control
Output frequency: 50Hz
Operating system: Linux
Ambient temperature: -25 to 65°C
Purpose: Protect motor
General Electric Multilin's 369 H-r-MF-ohe is a 369 motor protection relay. This series of relays is designed to protect the motor (three-phase) and associated systems while providing many basic functions and options at two levels of control input power. While these components are now in old condition and cannot be purchased from Oems, AX Control is committed to maintaining existing inventory of as many models as possible. This allows us to complete your order quickly. Most existing products ship within 3 hours, and many ship in less than 24 hours.

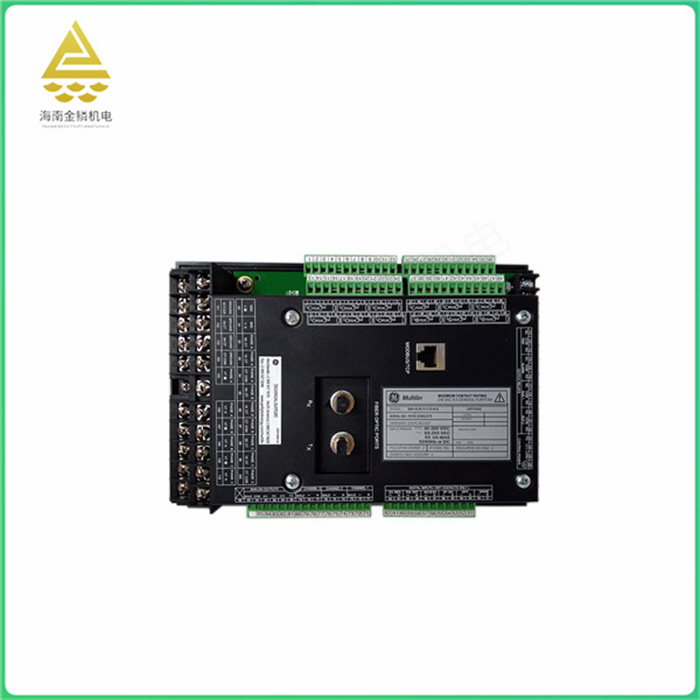

The 369-HI-R-M-F-0-H-E offers a variety of options. This includes 12 RTD inputs. The RTD unit is located on the left side of the back of the device. The device also has an optional run count. The meter package increases access to the VT input, allowing voltage and power components. With this option you can measure Hertz, KVA, kilowatts, kilowatts, volts, and megawatt-hours.
369-LO-0-M_F_E-0 also has an additional fiber optic port installed. The fiber optic port has a baud rate of 1200 to 19200 and uses the Modbus RTU protocol. This is used for channel 3. When used for channel 3, the channel 485 RS485 connection is disabled. However, the unit will still have other RS232 ports available. In addition, the device has an RS<> port that can be used to connect to a PC. This is commonly used to communicate with GE's EnerVista software.
The Series 369 Motor Management relay is a multi-wire motor protection relay manufactured by GE Multilin. It has a variety of optional RTD inputs, does not include metering or backspin detection, and does not have an optional fiber optic port. The relay is mainly used for the protection and monitoring of three-phase motors and their related systems, such as the acceleration time, cooling rate value, motor inrush value monitoring. In the 369-HI-R-0-0-0 model, there is no optional metering package, as it does not include metering or backspin detection. In addition, the relay has an analog output and can communicate with the host computer.
In short, the 369 series motor management relay is a multi-wire motor protection relay, mainly used for the protection and monitoring of three-phase motors and their related systems. During use, pay attention to installation and maintenance matters to ensure that it works properly.

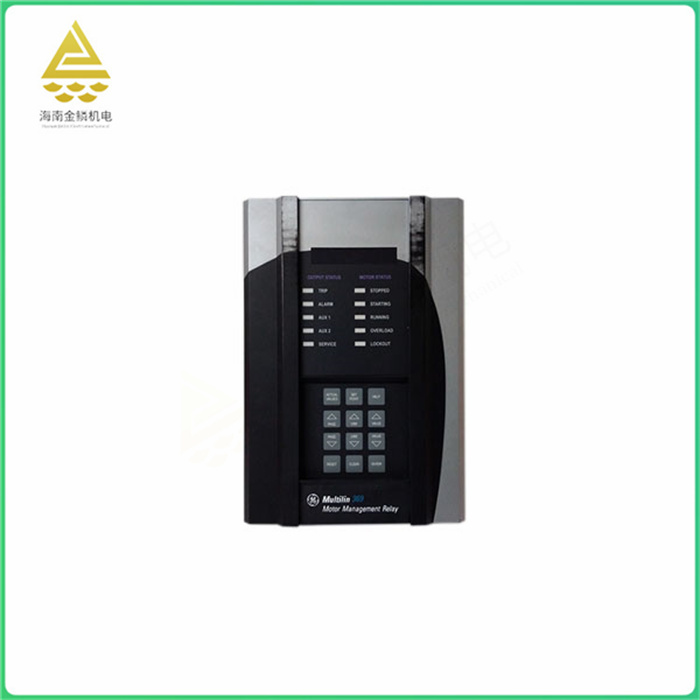

Series 369 motor management relays with multiple protection functions, Including undervoltage automatic restart, reverse power, starter failure, kVA requirements, kvar requirements, kW requirements, current requirements, spin detection, self-test/service, travel counter, RRTD communication loss, RTD disconnect/disconnect, short circuit/low temperature RTD, environmental RTD, acceleration timer, mechanical plugging, etc. In addition, it can display functions such as kilowatts, KVA, frequency, phase voltage, power factor, and megawatt-hours, and can be locally retrieved or remotely managed through its front LCD display or communication with SCADA or workstations.
In summary, the 369 Series motor management relays have a variety of protection and monitoring functions to effectively protect the safe and stable operation of the motor and related systems. During use, pay attention to installation and maintenance matters to ensure that it works properly.
