Size: High 29.6 cm x wide 10.7 cm x long 20.5 cm
Fusion :3.15 Amps 250 volts (5 x 20 mm)
Operating range :-40 ° C to + 60 ° C
Software :EnerVista 369
Storage range :-40 ℃ to + 80 ℃
369-L0-0-M-F-E-0 20-60 VDC 20-48 VAC includes optional metering pack Optional Fiber end C and optional Modbus TCP over Ethernet interface.

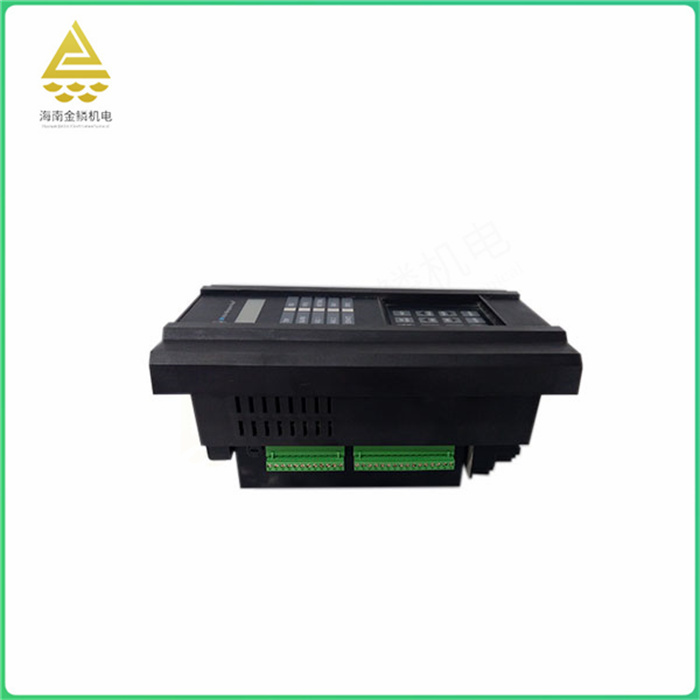

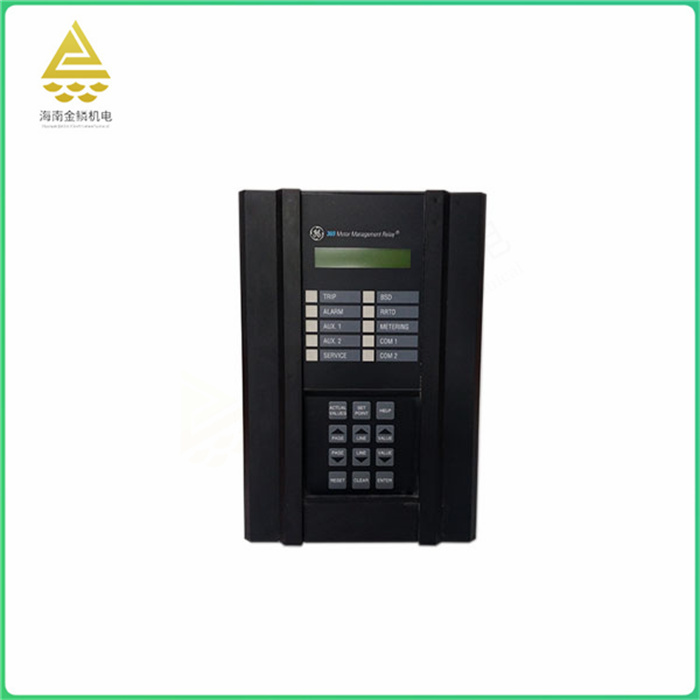

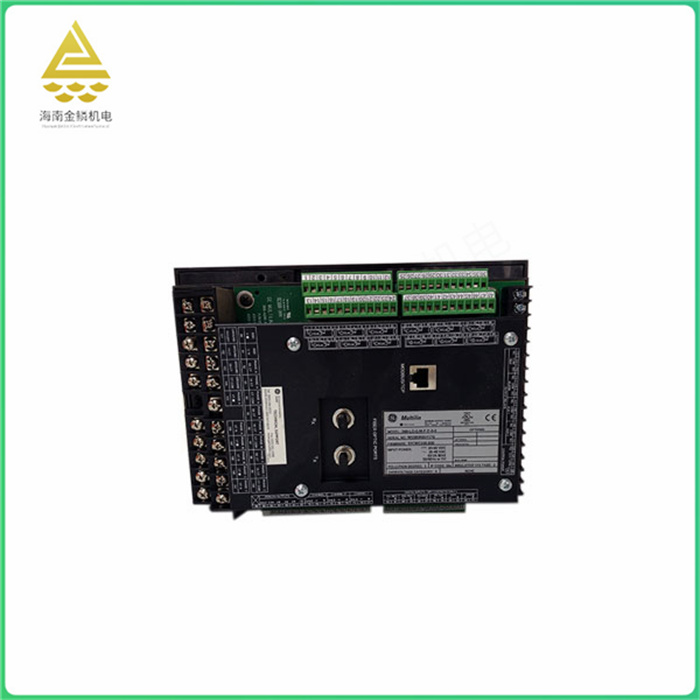

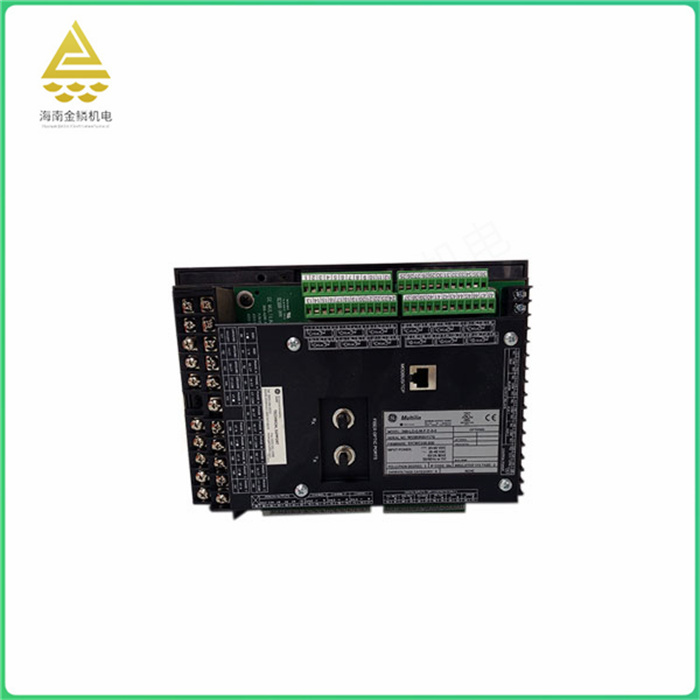

The 369-L0-0-M-F-E-0 is a version of the General Electric Company's 369 motor management relay. This is a digital relay used for the protection and monitoring of mechanical systems and three-phase motors. These systems are designed to "learn" motor parameters and adapt to the application in use.
The 369-L0-0-M-F-E-0 is rated for 20-60 VDC (20-48 VAC) control power. The device has an optional meter, an optional fiber port and an optional Modbus/TCP protocol interface. This optional metering package provides VT input to support both voltage and power components. This can also be used to measure jump watt-hours, Hertz, kilovolts, kilowatts, volts, and PF.
Motor management relay is a relay used for motor protection, with overload, undervoltage, overvoltage, gridlock, lack of phase, unbalance and other protection functions. It is usually modular in design and can be easily combined and expanded with other equipment, suitable for various types of motor protection and control.
The protection function of the motor management relay is usually realized by the internal electronic circuit and the mechanical part. When the motor fails, the corresponding contact of the relay will operate, thus cutting off the power supply or sending an alarm signal. Some motor management relays also have communication functions, which can transmit the operating status and fault information of the motor to the upper computer or PLC system for easy management and monitoring.
When using motor management relays, the following points need to be noted:
Choose the relay model and specification that suits your needs, taking into account the power, voltage, current and other factors of the motor.
Properly install motor management relays to ensure good contact to avoid heat or damage due to poor contact.
Set protection parameters as required, such as the current value of overload protection and the voltage value of undervoltage protection.
During use, the motor management relay needs to be checked and maintained regularly to ensure its normal operation.
When a fault occurs, it is necessary to stop the machine in time for inspection and repair to avoid the expansion of the fault leading to more serious consequences.
In short, the motor management relay is an important motor protection device, which can effectively protect the safe and stable operation of the motor. During use, pay attention to installation and maintenance matters to ensure that it works properly.
