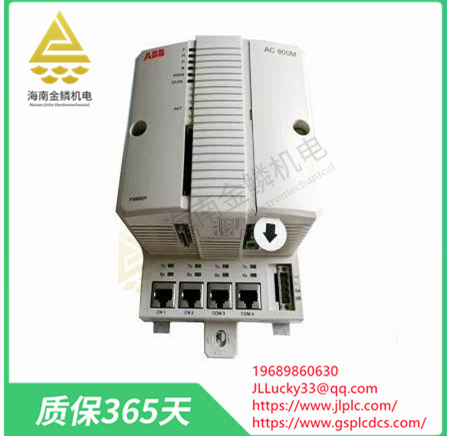

3BSE088386R1 (PM857K02) | CPU redundancy enables high integrity functionality

Basic information

Item No. 3BSE088386R1 (PM857K02)

Redundant Yes

High integrity Yes

Clock frequency 96 MHZ

Performance, 0.17 ms for 1000 Boolean operations

Performance 0.17 ms

Memory 32 megabytes

RAM can be used for applications of 22.184 megabytes

The flash memory used for storage is not

dimension

Width 119 mm (4.7 in)

Height 186 mm (7.3 in)

Depth 135 mm (5.3 in)

Weight (including base) 2700 g (5.95 lb)

The CPU board contains the microprocessor and RAM memory, real-time clock, LED indicator, INIT button, and CompactFlash interface.

The baseplate of the PM857 controller has two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4) for connecting to the control network. One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX bus, communication interface, and S800 I/O).

High integrity functionality is achieved by adding the SM812 module and SIL certification software. In this way, non-critical control schemes can be upgraded to SIL certification schemes by adding a plug-in SM81x module and a range of appropriate software. The AC 800M High-Integrity also offers an IEC 61508 and TUV certified control environment that combines security and critical business process control in a single controller unit without sacrificing safety integrity.

The PM857 can handle up to 128 I/O signals. Passed SIL3 certification. This parameter must be configured according to the security manual.

The package includes:

2 PM857K01, security processor unit

1 TK850, CEX bus expansion cable

1 TK851, RCU-Link cable

Characteristics and advantages

ISA Secure certified - Read more

AC 800M high, up to SIL 3, certified with PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812

Supports S800 I/O high integrity (PM857, PM863, PM865, PM866A and PM891)

The controller can be configured with 800xA control generator

The controller has full EMC certification

TUV certified SIL 2 and SIL 3

Built-in redundant Ethernet communication port
