Basic information

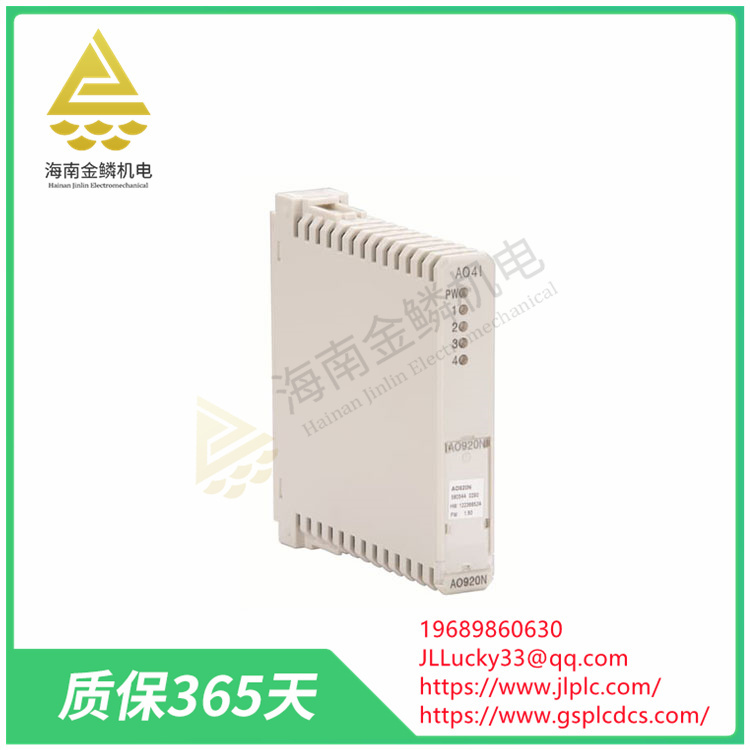

Model: AO920N
Item number 3KDE175533L9200
Type analog output
Number of channels 4
Signal type 0/4... 20 mA for actuators
Basic information
Model: AO920N
Item number 3KDE175533L9200
Type analog output
Number of channels 4
Signal type 0/4... 20 mA for actuators
Hatno
Not applicable to state-owned enterprises
Redundant not
Intrinsically safe
The AO920N Mechanics S900 Series Remote S900 I/O system can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous areas, depending on the system model selected. The S900 I/O uses the PROFIBUS DP standard to communicate with the control system level. The I/O system can be installed directly on site, thus reducing wiring and cabling costs.
The system is robust, fault-tolerant and easy to service. The integrated disconnect mechanism allows for replacement during operation, which means that the power supply unit can be replaced without interrupting the primary voltage.
S900 I/O N type. For installation in safe (= non-hazardous) areas.
AO920N Analog Output (AO4I), actuator output signal 0/4... 20 mA.
AO920N Features and benefits
- Redundancy (power and communication)
- Run
In hot configuration - Hot swap function
- Extended diagnostics
- Via FDT/DTM
For excellent configuration and diagnostics - G3 - all components
The coating - through automatic diagnosis
Simplified maintenance - Output signal 0/4... 20 mA for actuators
- Short circuit and disconnect detection
- Electrical isolation between output/bus and output/power - Electrical isolation channel to channel
-4 channel
