The SR469-P5-HI-A20-E is from GE Multilin and is part of the SR469 motor management relay family. The device is designed with a 5 amp phase CT secondary coil. The SR 469 relay is designed for use in the medium
Motor provides integrated management and protection.
The SR469-P5-HI-A20-E provides 70-265 volts AC and 90-300 volts DC control power. The device has an enhanced front panel. However, if you need one you can make in harsh environments
For the device used, please refer to our SR469-P5-HI-A20-E-H listing, which is similar in all respects except for an additional harsh environmental conformal coating.

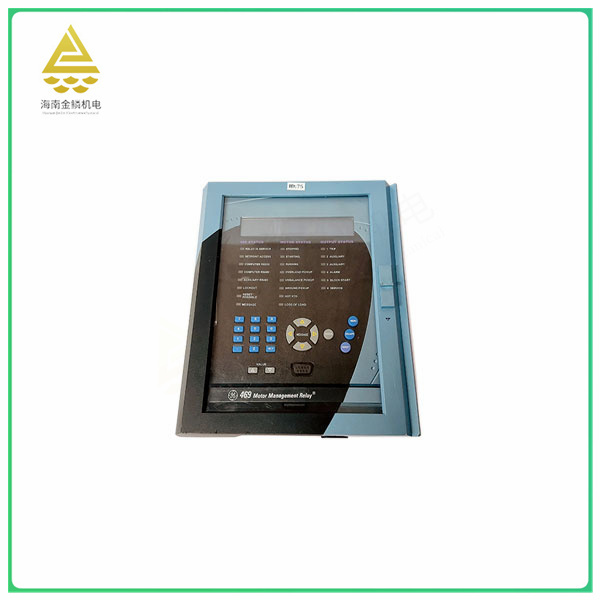

The SR469-P5-HI-A20-E has a well-designed front panel for ease of use. The panel includes an RS-232 program port interface with a baud rate of 9600 and programmable up to 19200 baud. this
The panel has a pull-out handle that can be sealed to prevent any unauthorized movement. The front panel has a large LCD display that can display 40 characters. Users can view it locally through the display
To trip or alarm and other diagnostic information. In addition, the panel has motor and output status indicators, device indicators, numeric keypad, control and programming keys, including reset, exit and menu buttons to enable suction
Donkey changes the numeric key for a fixed value.
GE 469-P1-HI-A20-E is the name or identifier of a modular control system that may be used in a distributed or centralized control system. The design feature of this system is that the main control and auxiliary control can coexist on the same network, while maintaining functional independence. This design provides a great deal of flexibility and can be configured according to actual application requirements.
The master controller can listen for safe inputs without interference, reducing the need to replicate field instruments. This design improves the reliability and security of the system.
At the heart of the system is a single board controller, which enables it to efficiently process and control various input signals. In addition, it also has the characteristics of easy to expand, according to the application needs to add more functional modules.
Overall, the GE 469-P1-HI-A20-E is a high-performance, scalable, and secure control system for a variety of industrial automation and process control applications.
