Sr469-p5-lo-a20-e is an Agdor wire SR469 relay. It is most commonly used to protect large and medium-sized motors in industrial applications such as extruders, fans, blowers, crane coolers, etc.
The SR469-P5-LO-A20-E uses a control power supply rated 24-60 VDC, 20-48 VAC 2 48-62 Hz. The device has an enhanced front panel, but does not include other options such as DeviceNet, Ethernet end [or chemical conformal coating].
The SR469-P5-LO-A20-E includes E standard communication ports. This includes the two RS485 serial ports located on the back of the device. There is also an RS232 port near the bottom of the front panel. RS232 port allowed
Allow quick access.
The SR469-P5-LO-A20-E provides voltage dependent overload curves, rotor break protection, and torque protection and metering. The equipment features advanced thermal models and provides complete asset monitoring. This includes the need
Obtain energy and temperature data. The unit has firmware and Settings that can be upgraded in the field.

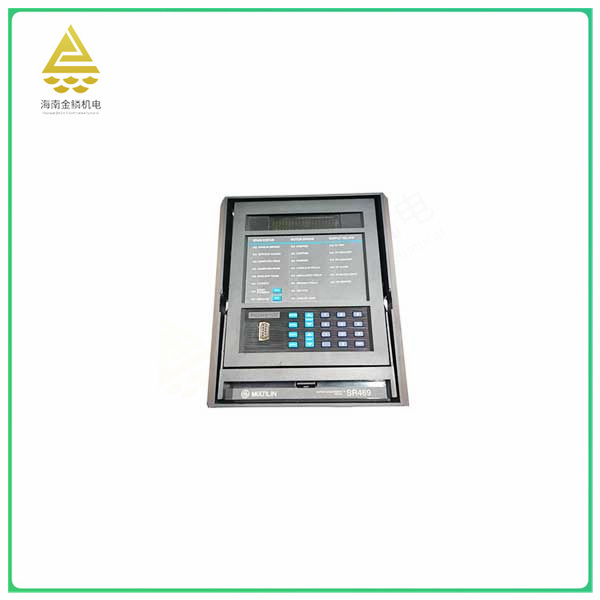

The standard front panel includes a 40-character LCD display. This allows local access to messages and data. The front panel has multiple leds arranged in three rows. Below these, there are multiple input keys that allow you to use
The home interacts with the relays on the panel.
The GE 469-P5-LO-A20-E is a relay module with a number of specific functions and features. First, it monitors when torque exceeds a user-set threshold, thereby protecting the driven load from damage. In addition, this module has the RTD (Resistance Temperature Detector) protection function to alert users to dangerous ambient temperature changes. When a user-set threshold is reached, it can assign alarm, trip, and high alarm functions. In addition, it has ground fault protection, which protects the device by removing the DC component from the dangerous current.
Overall, the GE 469-P5-LO-A20-E is a highly configurable relay module with multiple protection functions for a variety of industrial automation and process control applications.
