Part Number: 531X305NTBANG1 Manufacturer: General Electric
Producing Country: Country (USA)

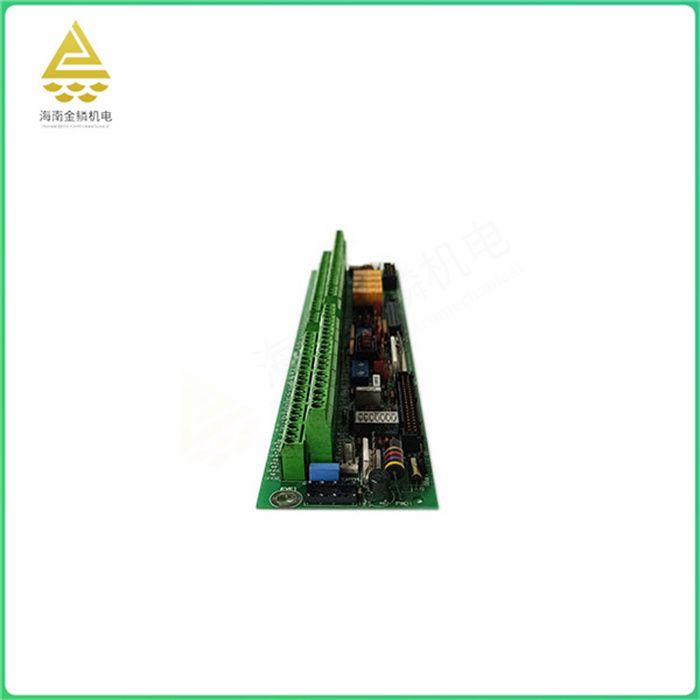

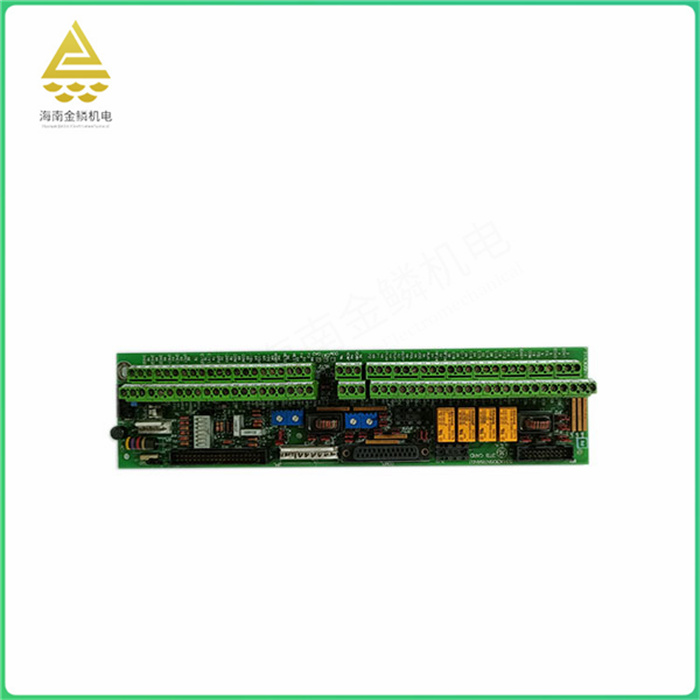

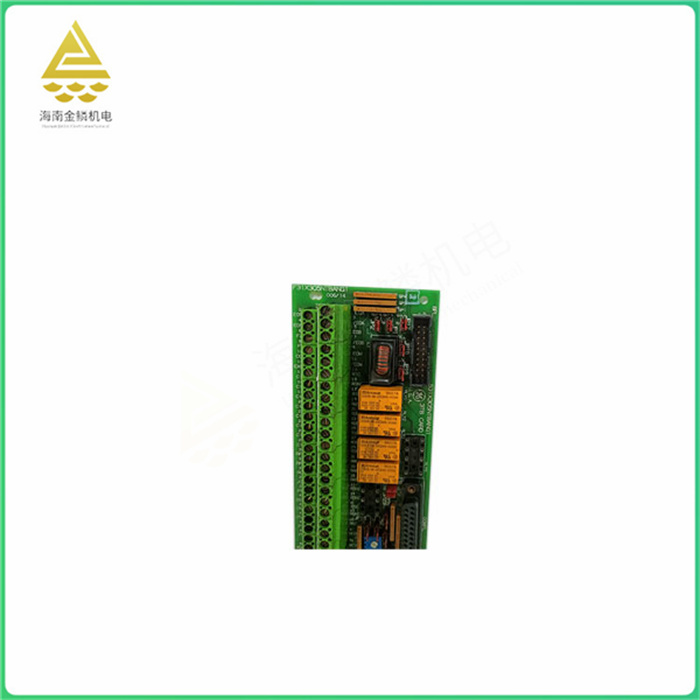

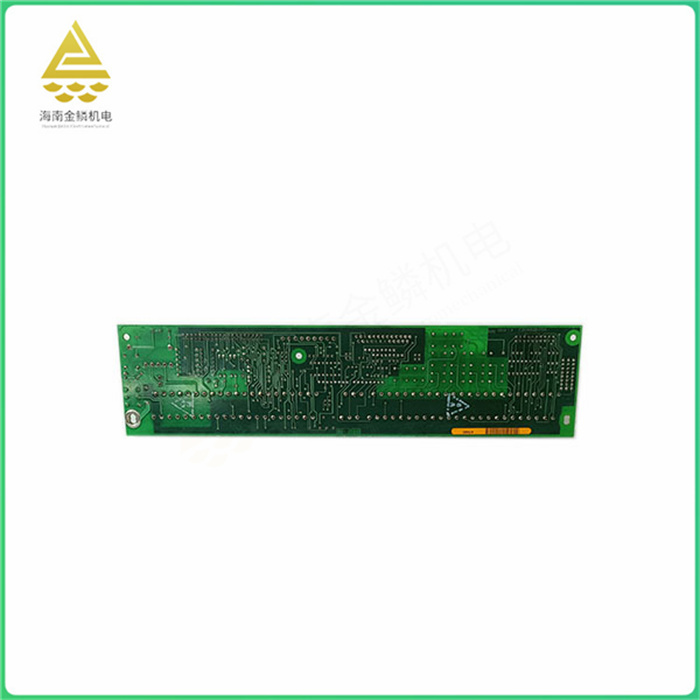

Product type: NTB/3TB terminal board
Series: EX2000
The 531X305NTBANG1 is an NTB/3TB terminal board designed for the EX2000 excitation system. The main CPU and LAN communication card are components of the EX2000 system.
In addition, it provides isolated and non-isolated circuits, communication inputs for the actuator, and programmer modules (keyboard and display). The core software has a complex system program called an independent control simulator that simulates the behavior of the magnetic field and the generator. The microprocessor applies cards to simulate the magnetic field and the generator feedback signal, which is then fed to the transduction algorithm in place of the actual feedback.
The NTB/3TB terminal board is an NTB/3TB terminal board developed by GE in the EX2000 excitation system. It offers both regulated and unregulated power supplies, and the main driver can be powered by regulated power rated at 5VDC and 15VDC, as well as uncontrolled power rated at 24VDC or 120VAC. In addition, users can configure various board Settings to meet individual load requirements. The jumper on the board can be used to change the 5V and 15V encoders. The board also includes A total of seven Type A and Type C relays.
The functions of the NTB/3TB terminal board include the provision of regulated and unregulated power supplies, support for main driver power supply, configurable board Settings to meet individual load requirements, and the ability to change 5V and 15V encoders with jumpers. In addition, the board includes seven Type A and Type C relays.
