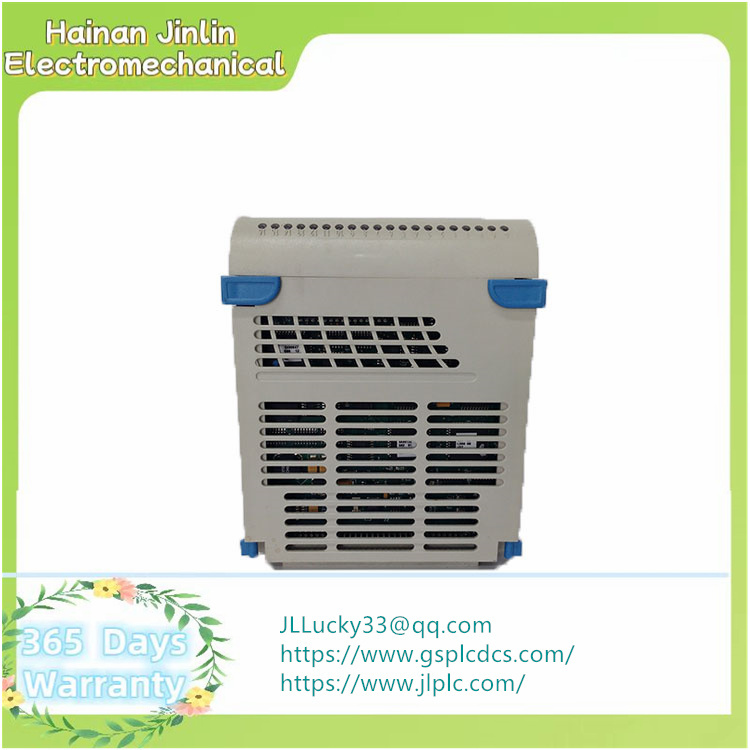

5X00070G03 | The analog input module is used to collect analog signals from remote field

Product description

Model :5X00070G03

Description: Analog input fast, +/ -5V / +/ -10V

Common typographical error :5X00070GO3

The 5X00070G03 analog input module is an intelligent device, which is mainly used to collect analog signals from remote field to computer. It uses RS-485 bus as a data communication line to provide analog to 485 function, which can simultaneously input analog to the module and transmit it to the computer through the RS-485 bus. Because the RS-485 interface is used as the communication interface, the analog input module can support the combination of multiple modules to transmit more analog signals, and realize decentralized configuration on the 485 line, and distinguish by the address code. This makes the analog input module can be directly connected to the configuration software of MODBUS RTU protocol to realize unified docking with the industrial field data acquisition.

An analog quantity is an arbitrary value that represents a continuous change within a certain range, and is a state representation in contrast to a digital quantity. Typically, analog quantities are used to capture and represent parameters such as voltage, current, or frequency of things. The analog input module can collect these analog quantities, such as voltage, current, thermocouple, thermal resistance, temperature and other values, and transmit them to the computer through the 485 bus.

In the circuit design, the 5X00070G03 analog input module plays an important role in solving the analog input of PLC and motion controller, such as current detection, voltage detection, temperature detection, etc. At the same time, the module also supports a variety of acquisition ranges, and can be connected with various configuration software to achieve flexible data acquisition and processing.

Please note that the specific specifications and functions of the 5X00070G03 analog input module may vary by brand and model, so in practical applications, it is necessary to select the appropriate module according to the specific needs, and refer to the corresponding product manuals and technical specifications for correct configuration and use.
