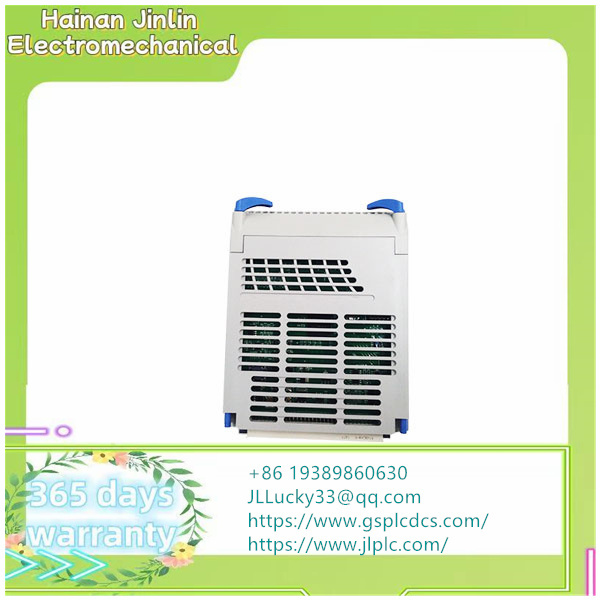

Model: 5X00106G02

Category: HART High performance analog input module

Delivery time: 3-5 days/week

Delivery method: SF Express/Federal

Payment method: Wire transfer/Western Union

Finish: Brand new/used

Warranty: One year

Shipping weight: 2 Kg

Details and features of HART High performance analog input module:

Definition and functions:

The 5X00106G02 HART module is an integrated circuit or component based on the HART protocol (Highway Addressable Remote Transducer) designed to encode, decode, and convert the HART protocol into digital or analog signals.

5X00106G02 The module can process analog signals from 4 to 20mA, and superimpose digital signals on the analog signals through the modulated sinusoidal signals to achieve two-way communication between analog signals and digital signals.

Features:

Communication interface is pure hardware conversion, low delay, high efficiency.

Current loop power supply, MCU (microcontroller) and HART communication parts do not require external power supply.

The MCU uses a 32-bit microcontroller with the new Tang ARM Cortex™-M0 core.

The Bell202 standard FSK frequency shift keying signal is used, and the carrier is 1200Hz and 2200Hz.

The communication interface between HART and field equipment can be customized.

Important data is automatically saved. A power failure and restart do not affect system running.

Data communication magnetic isolation, effectively ensure data accuracy.

The interface type can be SPI (master/slave) or UART (2-way).

Low power consumption, DC12-35V, less than 2.5mA (HART part).

The power supply voltage ranges from 12 to 40VDC. 24VDC is recommended.

Meet intrinsic safety requirements and comply with RoHS standards.

Application field:

Remote monitoring

Intelligent instrument

Industrial control

Equipment manufacturing

Metallurgical industry

Electric traffic

Building automation

Postal communication

Research machinery

Equipment automation

Integration with other systems:

The 5X00106G02 HART module is typically connected to a PLC controller, data collector, or other automation device to process HART protocol signals transmitted between sensors and actuators.

In practical applications, such as Siemens PLC, the HART analog module can read multiple variables in third-party devices directly through the I/O area through the Profibus-DP communication protocol to achieve efficient data reading and writing.
