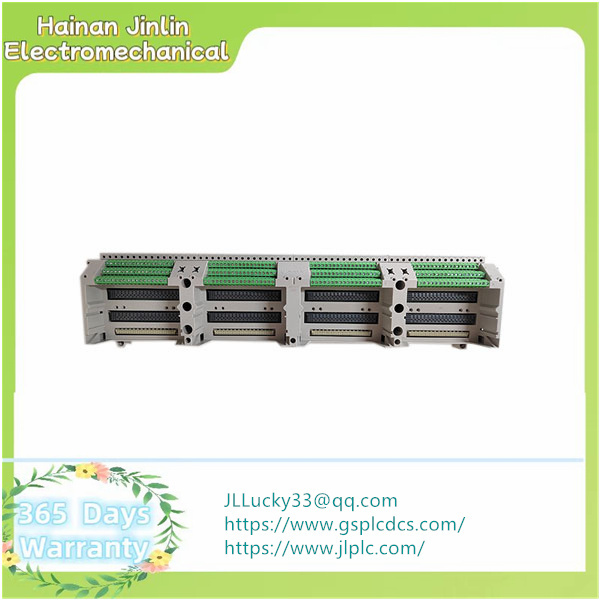

Model: 5X00497G01
Category: Controller module
Quality: New, not new
Power supply: 24VDC
Power consumption: < 50W
Operating temperature: -40°C to +70°C
Humidity: 5% to 95% non-condensing
Dimensions: 233 x 175 x 40 mm
Weight: 1.0 kg
The acquisition and processing of input and output signals of 5X00497G01 controller module is a complex process, involving many technologies and steps.
Acquisition of input signals usually involves the reception of analog signals from various sensors or digital signals from other modules or external devices. These signals are first filtered and amplified, and then converted into digital signals for easy subsequent processing. The acquisition method can be directly connected, or it can be realized through the signal conversion circuit.
When processing the input signal, the process of filtering, amplification, sampling, numerical calculation and so on are usually used. Filtering can remove noise interference, amplification can enhance signal strength, sampling can convert continuous signal to discrete signal, and numerical calculation can add, subtract, multiply and divide the signal. These processing steps help to extract valid information and meet the requirements of the control module.
In the logical judgment stage, the 5X00497G01 control module will judge the current signal state according to the preset conditions and algorithms, and decide the corresponding operation. This process can be performed using conditional statements, loop statements, logical operators, and so on.
As for the processing of the output signal, the 5X00497G01 control module will generate the corresponding output signal according to the result after completing the logical judgment. These signals are sent to the external device through the output module to control its operating state. The output module converts the digital signal into the corresponding analog signal or voltage signal to drive the operation of the external device.
