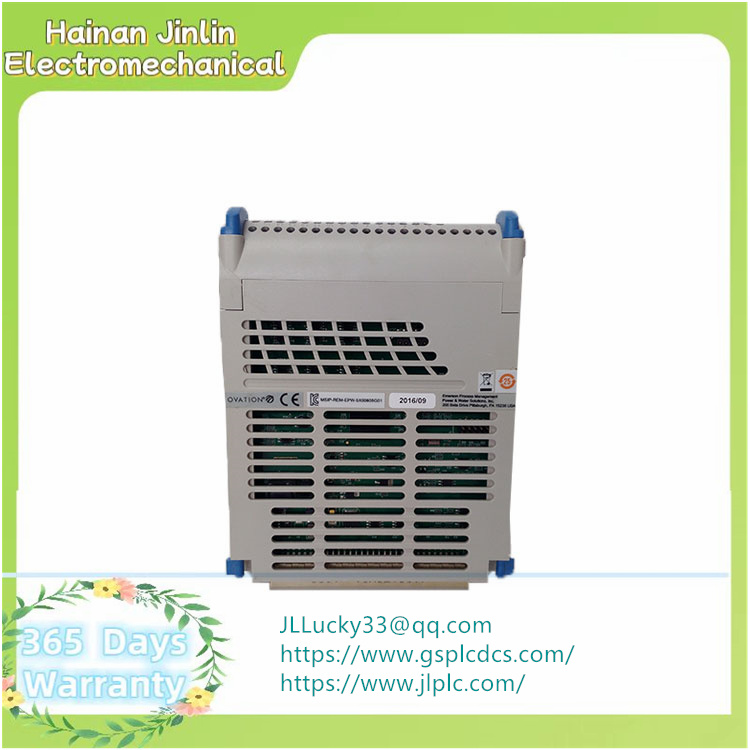

Model: 5X00605G01
Category: Input/Output module
Quality: New, not new
Power supply: 24VDC
Power consumption: <50W
Operating temperature: -40°C to +70°C
Humidity: 5% to 95% non-condensing
Dimensions: 233 x 175 x 40 mm
Weight: 1.0 kg
Input and output module is also known as the control module, when there are control requirements can output signals, or provide a switching signal, so that the controlled device action, at the same time can receive the feedback signal of the device, to report to the host, is an important part of the fire alarm linkage system. Input and output modules on the market can provide a pair of passive normally open/normally closed contacts to control the controlled device, some manufacturers of the module can be set through parameter Settings, set to active output, the corresponding double input and output modules, multiple input and output modules and so on.
In addition, the 5X00605G01 input/output module is also widely used in PLC and computer systems. In the PLC, the role of the output module is to amplify the power of the output signal to drive external devices. In the computer system, the IO interface is the interface connecting the external device and the computer system, and plays the role of a bridge and a link.
When selecting input/output modules, some factors need to be considered, such as voltage level, protection form, module density, etc. For digital input modules, it is necessary to select the appropriate voltage level and protection form, while paying attention to the module density and the number of connection points. For the digital output module, it is necessary to choose the appropriate output mode and output power, and consider the case of using multiple digital output points to drive the load in parallel. For the analog input module, the appropriate analog value input range needs to be selected.
In short, the 5X00605G01 input and output module is an important control device, which is widely used in fire alarm linkage system, PLC and computer system. When selecting and using input and output modules, comprehensive consideration should be made according to the specific situation to ensure the stability and reliability of the system.
