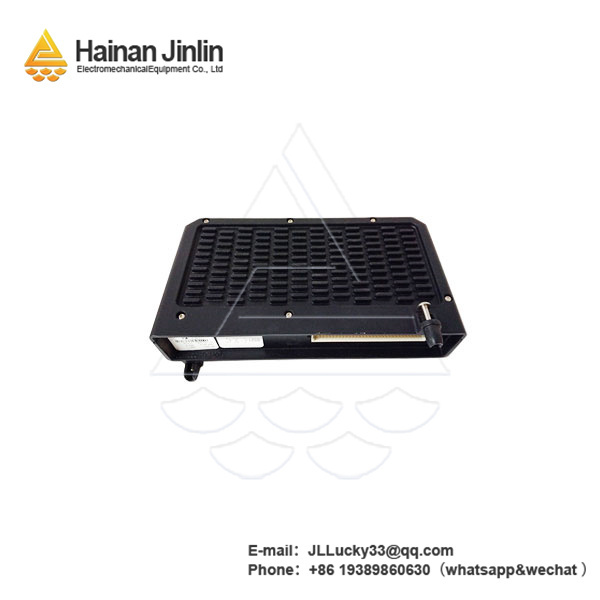

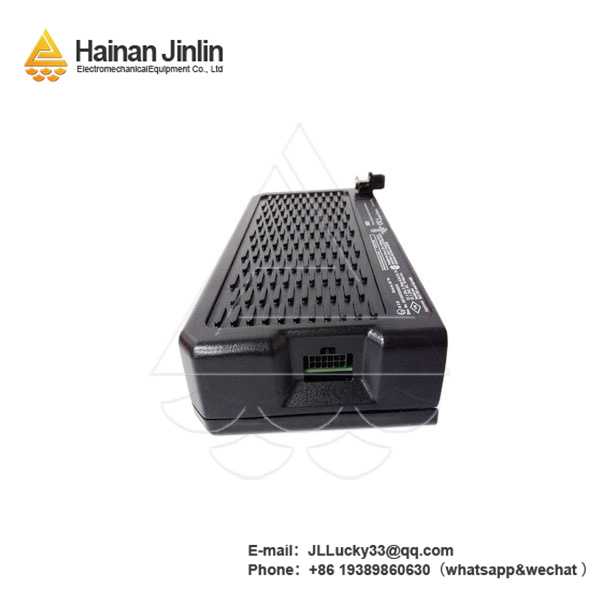

Product Overview
The MTL 8201-HI-IS is a rugged, intrinsically safe (IS) analog input module developed by MTL Instruments—a global leader in hazardous-area industrial automation solutions. Engineered for explosive environments like oil refineries, chemical processing plants, and offshore drilling platforms, the MTL 8201-HI-IS safely acquires and transmits critical analog data (e.g., pressure, temperature, flow rates) from field sensors in Zone 0/1 (ATEX/IECEx) and Class I, Division 1 (NFPA) hazardous areas. Its intrinsic safety design limits electrical energy to non-ignitable levels, eliminating the risk of sparking that could ignite flammable gases or vapors. As a core component of MTL’s IS system portfolio, the MTL 8201-HI-IS ensures high-precision signal processing for real-time process monitoring, while its compatibility with MTL’s power supplies and control interfaces simplifies integration into existing safety-critical setups. Whether monitoring corrosive fluid pressure in a chemical reactor or tracking gas flow in an offshore rig, the MTL 8201-HI-IS stands out for its explosion protection, long-term reliability, and adherence to global safety standards—making it an essential tool for mitigating risks in high-hazard process industries.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
MTL 8201-HI-IS
|
|
Manufacturer
|
MTL Instruments (a Siemens Business)
|
|
Product Type
|
Intrinsically Safe Analog Input Module
|
|
Input Signal Type
|
4-20 mA DC (compatible with 2-wire/4-wire sensors)
|
|
Number of Input Channels
|
8 isolated, independent channels
|
|
Hazardous Area Certifications
|
ATEX Zone 0/1 (II 1G Ex ia IIC T6 Ga), IECEx Ex ia IIC T6 Ga, NFPA Class I, Division 1, Groups A-D
|
|
Measurement Accuracy
|
±0.05% of full scale (4-20 mA range)
|
|
Operating Temperature
|
-40°C to +75°C (-40°F to +167°F)
|
|
Power Requirement
|
24 VDC (from MTL IS power supplies, e.g., MTL 7000 series)
|
|
Compatibility
|
MTL 5000/7000 Series IS Systems, MTL Control Units
|
|
Isolation
|
1000 VAC (channel-to-channel, channel-to-ground)
|
Key Features and Benefits
MTL-Engineered Intrinsic Safety
The MTL 8201-HI-IS leverages MTL’s decades of expertise in hazardous-area solutions to meet the most stringent intrinsic safety standards, including ATEX Zone 0 and Class I, Division 1. Each input channel is equipped with MTL’s proprietary current-limiting and overvoltage protection circuits, ensuring electrical energy remains below ignition thresholds for even the most volatile flammable atmospheres (e.g., methane, hydrogen). This design eliminates the need for costly explosion-proof enclosures or purge systems, reducing installation and maintenance costs while maximizing safety. Unlike generic IS modules, the MTL 8201-HI-IS is rigorously tested to MTL’s internal quality standards, ensuring reliable performance in the harshest industrial conditions.
Superior Precision & Environmental Durability
Equipped with MTL’s advanced 24-bit analog-to-digital (A/D) converters, the MTL 8201-HI-IS delivers industry-leading measurement accuracy of ±0.05% of full scale—critical for applications where precise process data (e.g., pharmaceutical batch temperatures, oil pipeline pressure) directly impacts product quality or safety. It includes MTL’s proprietary noise-filtering technology, which minimizes interference from nearby industrial equipment (e.g., motors, variable-frequency drives) to maintain signal integrity. The module’s rugged construction features a corrosion-resistant aluminum housing and conformal-coated PCB, protecting against moisture, dust, and chemical exposure. Its extended operating temperature range (-40°C to +75°C) ensures stable performance in extreme environments, from arctic offshore platforms to high-temperature chemical reactors.
Seamless Integration with MTL Ecosystem
Designed exclusively for MTL’s 5000/7000 Series IS systems, the
MTL 8201-HI-IS offers plug-and-play compatibility with MTL’s IS power supplies (e.g., MTL 7021) and control units, streamlining system setup. It communicates via MTL’s high-speed IS bus, enabling real-time data transfer (up to 50 ms update rate) to MTL’s control interfaces—ensuring operators receive timely process insights for rapid decision-making. The module also supports MTL’s Asset Management Software, allowing remote configuration, calibration, and diagnostic monitoring. This integration simplifies maintenance workflows: for example, technicians can remotely identify sensor drift or channel faults, reducing the need for on-site inspections in hazardous areas and minimizing unplanned downtime.
Related Models
- MTL 8201-HO-IS – Intrinsically safe analog output module, complementary to the MTL 8201-HI-IS, designed to send 4-20 mA control signals to actuators (e.g., valves) in Zone 0/1 environments.
- MTL 8201-DI-IS – Intrinsically safe digital input module, a counterpart of the MTL 8201-HI-IS, for monitoring discrete signals (e.g., limit switch status) in high-hazard areas.
- MTL 8201-HI-NIS – Non-intrinsically safe version of the MTL 8201-HI-IS, optimized for non-hazardous areas (e.g., control rooms) to reduce costs where IS certification is unnecessary.
- MTL 8202-HI-IS – High-density variant of the MTL 8201-HI-IS, offering 16 input channels (vs. 8) for space-constrained MTL 5000 Series installations (e.g., compact offshore control panels).
- MTL 8201-HI-IS-T – Temperature-specialized model of the MTL 8201-HI-IS, calibrated for RTD (Pt100) and thermocouple (Type K/J) inputs, ideal for high-temperature process monitoring in refineries.
- MTL 7021 IS Power Supply – Companion power supply for the MTL 8201-HI-IS, providing isolated 24 VDC power to IS modules in MTL 7000 Series systems.
- MTL 8201-HI-IS-EX – Enhanced model of the MTL 8201-HI-IS, certified for Zone 0/1/2 and Class I, Division 1/2, offering broader compatibility across mixed-risk industrial sites.
