Product Overview

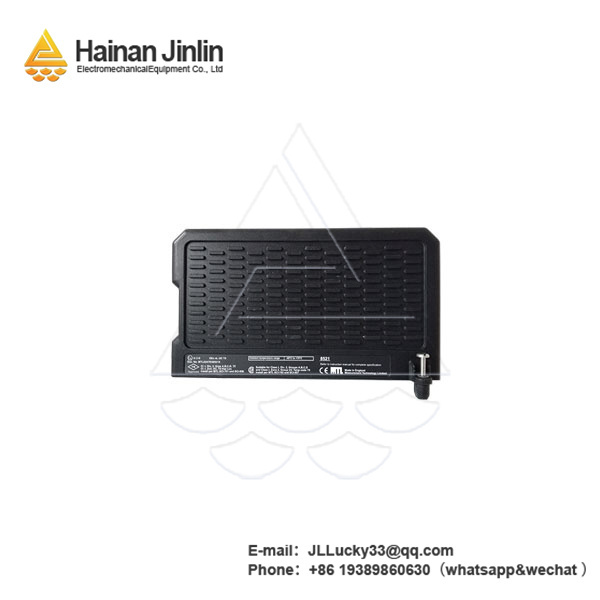

The MTL 8505-BI-MB is a high-performance, multi-channel intrinsically safe (IS) barrier module developed by MTL Instruments—a Siemens Business and global pioneer in hazardous-area automation solutions. Engineered specifically for explosive environments such as oil refineries, chemical processing plants, and offshore drilling platforms, the MTL 8505-BI-MB acts as a critical safety interface, isolating and protecting field devices (e.g., sensors, transmitters) in Zone 0/1 (ATEX/IECEx) and Class I, Division 1 (NFPA) areas from non-hazardous control systems. Its modular design supports multiple input/output (I/O) types, enabling simultaneous handling of analog signals (4-20 mA) and digital signals (dry contacts)—eliminating the need for multiple single-function barriers and reducing cabinet space. As a core component of MTL’s 8500 Series IS portfolio, the MTL 8505-BI-MB ensures reliable signal transmission, energy limitation, and compliance with global safety standards, making it an indispensable solution for streamlining safety-critical I/O architectures in high-hazard process industries.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
MTL 8505-BI-MB
|
|
Manufacturer
|
MTL Instruments (a Siemens Business)
|
|
Product Type
|
Intrinsically Safe Multi-Channel Barrier Module
|
|
Supported Signal Types
|
4-20 mA DC analog (2-wire/4-wire), dry-contact digital (NO/NC)
|
|
Number of Channels
|
4 independent, configurable channels
|
|
Hazardous Area Certifications
|
ATEX Zone 0/1 (II 1G Ex ia IIC T6 Ga), IECEx Ex ia IIC T6 Ga, NFPA Class I, Division 1, Groups A-D
|
|
Signal Isolation
|
1000 VAC (channel-to-channel, channel-to-ground)
|
|
Operating Temperature
|
-40°C to +75°C (-40°F to +167°F)
|
|
Power Requirement
|
24 VDC (from MTL 7000/9000 Series IS Power Supplies)
|
|
Compatibility
|
MTL 8500 Series IS Systems, MTL Control Units, Third-Party DCS (e.g., Siemens PCS 7, Emerson DeltaV)
|
|
Mounting Type
|
DIN Rail (35mm standard), panel-mount optional
|
Key Features and Benefits
Multi-Channel Versatility for Simplified I/O Architecture
The MTL 8505-BI-MB’s 4 configurable channels support both analog (4-20 mA) and digital (dry contact) signals, allowing users to consolidate multiple field devices—such as pressure transmitters (analog) and limit switches (digital)—onto a single module. This eliminates the need for separate analog and digital barriers, reducing cabinet space by up to 50% and simplifying wiring. Each channel can be independently programmed via DIP switches or MTL’s Asset Management Software, enabling quick adaptation to changing process requirements (e.g., reconfiguring a digital channel to analog for a new sensor). For operators managing mixed-signal environments (e.g., a chemical reactor with temperature sensors and safety interlocks), this versatility cuts installation time and lowers overall system costs.
MTL-Certified Intrinsic Safety & Robust Isolation
Built on MTL’s decades of IS expertise, the MTL 8505-BI-MB incorporates proprietary current-limiting and voltage-clamping circuits to ensure electrical energy remains below ignition thresholds for even the most volatile atmospheres (e.g., hydrogen, propane). Its 1000 VAC isolation prevents ground loops and cross-talk between channels, safeguarding both field devices and control systems from electrical faults. Unlike generic barriers, the MTL 8505-BI-MB undergoes rigorous testing to MTL’s internal quality standards, including temperature cycling and vibration resistance, ensuring reliable performance in harsh industrial conditions—from offshore salt spray to high-temperature chemical plants.
Seamless Integration & Remote Diagnostics
Designed for flexibility, the
MTL 8505-BI-MB works seamlessly with MTL’s 8500 Series IS systems and third-party DCS platforms (e.g., Siemens PCS 7), enabling plug-and-play integration into existing setups. It communicates via MTL’s high-speed IS bus, delivering real-time signal status updates (e.g., overcurrent alerts, sensor faults) to control rooms—eliminating the need for manual field checks in hazardous areas. Support for MTL’s Asset Management Software allows remote configuration, calibration, and fault diagnosis: technicians can adjust channel settings or troubleshoot issues from a safe location, reducing exposure to high-risk environments and minimizing unplanned downtime.
Industrial-Grade Durability for Long-Term Reliability
The MTL 8505-BI-MB features a corrosion-resistant aluminum housing and conformal-coated PCB, protecting against moisture, dust, and chemical exposure—critical for longevity in offshore or chemical processing environments. Its extended operating temperature range (-40°C to +75°C) ensures stable performance in extreme conditions, from arctic pipelines to desert refineries. With a mean time between failures (MTBF) of 500,000 hours, the module delivers long-term reliability, reducing maintenance costs and ensuring continuous protection for safety-critical processes.
Related Models
- MTL 8505-BI-MB-8 – High-density variant of the MTL 8505-BI-MB, offering 8 channels (vs. 4) for space-constrained installations (e.g., compact offshore control panels).
- MTL 8505-BO-MB – Analog output counterpart of the MTL 8505-BI-MB, designed to send 4-20 mA control signals to actuators (e.g., valves) in hazardous areas.
- MTL 8505-BD-MB – Digital-only version of the MTL 8505-BI-MB, supporting 8 dry-contact channels for applications requiring only discrete signal isolation (e.g., safety interlocks).
- MTL 7021 IS Power Supply – Companion power supply for the MTL 8505-BI-MB, providing isolated 24 VDC power to 8500 Series modules in hazardous areas.
- MTL 8505-BI-MB-T – Temperature-specialized model of the MTL 8505-BI-MB, calibrated for RTD (Pt100) and thermocouple (Type K/J) inputs, ideal for high-temperature process monitoring.
- MTL 8500-RM – Rack-mount chassis for the MTL 8505-BI-MB, accommodating up to 16 8500 Series modules for centralized I/O management in large-scale DCS systems.
- MTL 8505-BI-MB-EX – Enhanced model of the MTL 8505-BI-MB, certified for Zone 0/1/2 and Class I, Division 1/2, offering broader compatibility across mixed-risk industrial sites.
