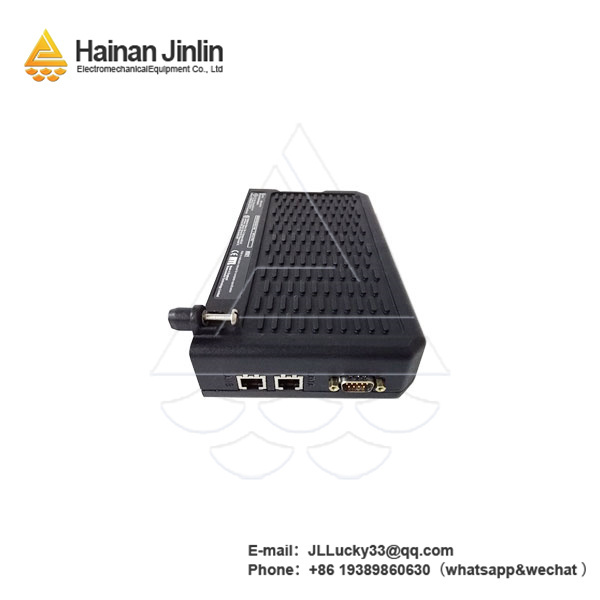

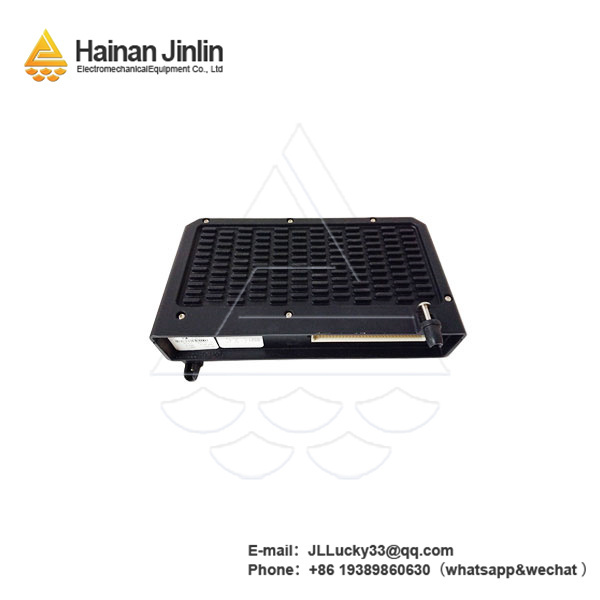

Product Overview
The MTL 8610-FT-NA is a high-reliability fieldbus communication module engineered to enable seamless data exchange between field devices and central control systems in hazardous industrial environments— a key product in MTL Instruments’ (a Siemens company) portfolio of industrial communication solutions. Designed specifically for Foundation Fieldbus (FF) H1 networks, the MTL 8610-FT-NA acts as a rugged interface that extends fieldbus connectivity to Zone 0/1 hazardous areas, eliminating signal degradation from long cable runs and ensuring compliance with global safety standards. Its core features include intrinsic safety (Ex ia) certification, built-in surge protection, and support for up to 32 fieldbus devices per module. The MTL 8610-FT-NA also offers wide environmental tolerance and compatibility with major DCS platforms, making it ideal for oil & gas, petrochemical, and chemical processing facilities where reliable, safe fieldbus communication is critical. With its ability to simplify network design and reduce installation costs, the MTL 8610-FT-NA is a trusted solution for modernizing Foundation Fieldbus-based control architectures.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
MTL 8610-FT-NA
|
|
Manufacturer
|
MTL Instruments (a Siemens company)
|
|
Product Type
|
Foundation Fieldbus (FF) H1 Communication Module
|
|
Supported Protocol
|
Foundation Fieldbus H1 (31.25 kbps)
|
|
Max Connected Devices
|
32 Fieldbus Devices (per module)
|
|
Safety Certifications
|
ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to +158°F)
|
|
Power Supply
|
24 V DC (18-32 V DC), 0.8 A Max
|
|
Communication Ports
|
1 x FF H1 Fieldbus Port (twisted pair); 1 x Ethernet (10/100 Mbps, RJ45) for configuration
|
|
Mounting Type
|
DIN Rail (35 mm, EN 50022)
|
|
Protection Rating
|
IP20 (panel-mounted, indoor use)
|
Key Features and Benefits
Intrinsic Safety for Hazardous Fieldbus Networks
The MTL 8610-FT-NA holds ATEX and IECEx intrinsic safety certifications (Ex ia IIC T4 Ga), which limits electrical energy in the fieldbus circuit to levels that cannot ignite flammable gases, vapors, or dust in Zone 0 (continuous explosive atmosphere) and Zone 1 (intermittent explosive atmosphere) areas. This is critical for applications like offshore oil wellhead monitoring or chemical reactor control, where Foundation Fieldbus devices (e.g., smart transmitters, valves) are installed in hazardous zones—making the MTL 8610-FT-NA a safety-critical component of fieldbus infrastructure.
Foundation Fieldbus H1 Optimization
Purpose-built for Foundation Fieldbus H1 (31.25 kbps) networks, the MTL 8610-FT-NA ensures reliable, low-latency communication between smart field devices and the central DCS. It supports all FF H1 functionality, including device configuration, parameter monitoring, and diagnostic data transmission—enabling users to leverage the full capabilities of smart field devices (e.g., remote calibration, predictive maintenance alerts). This optimization eliminates compatibility issues common with generic communication modules, ensuring seamless integration into FF-based control systems.
Built-In Surge and Noise Protection
The MTL 8610-FT-NA includes integrated surge protection (up to 2 kV) on both fieldbus and power supply ports, safeguarding the module and connected field devices from electrical transients caused by lightning, switchgear operations, or power fluctuations. It also features advanced noise filtering to block electromagnetic interference (EMI) from nearby high-voltage equipment or variable frequency drives (VFDs), ensuring signal integrity even in electrically noisy industrial environments. This protection reduces device downtime and extends the lifespan of expensive fieldbus sensors/actuators.
High Device Density for Cost Efficiency
With support for up to 32 fieldbus devices per module, the MTL 8610-FT-NA minimizes the number of communication modules required for large-scale FF networks. This reduces both upfront hardware costs and installation time (fewer modules to mount and wire), while also simplifying network management—ideal for facilities with hundreds of field devices (e.g., petrochemical refineries with extensive sensor networks). The module’s compact DIN rail design further saves panel space, optimizing control room layout.
Easy Configuration and DCS Integration
The MTL 8610-FT-NA includes an Ethernet port for remote configuration via MTL’s intuitive configuration software or third-party FF engineering tools (e.g., Emerson AMS Device Manager). It also integrates seamlessly with major DCS platforms, including Siemens PCS 7, Emerson Ovation, and Honeywell Experion, via standard FF interfaces. This plug-and-play compatibility eliminates the need for custom drivers or complex programming, reducing engineering time for system commissioning and upgrades.
Wide Environmental Adaptability
Engineered to operate in temperatures ranging from -40°C to +70°C, the MTL 8610-FT-NA performs reliably in extreme cold (e.g., arctic LNG facilities) and heat (e.g., desert-based solar power plants). Its rugged construction resists vibration (per IEC 60068-2-6) and humidity (up to 95% non-condensing), ensuring consistent performance in harsh industrial conditions without the need for climate-controlled enclosures—lowering operational costs and expanding deployment flexibility.
Related Models
- MTL 8610-FT-EU – Region-specific variant of the MTL 8610-FT-NA optimized for European markets, with additional CE marking and compliance with EN 50270 for EMC immunity.
- MTL 8610-FT-H – High-temperature version of the MTL 8610-FT-NA (-40°C to +85°C), designed for extreme-heat applications like asphalt plants or exhaust gas treatment systems.
- MTL 8620-FT-NA – Redundant fieldbus module that pairs with the MTL 8610-FT-NA to create a fault-tolerant FF H1 network, ideal for safety-critical processes (e.g., nuclear power plant auxiliary systems).
- MTL 8610-PA-NA – Profibus PA variant of the MTL 8610-FT-NA, supporting Profibus PA protocol instead of FF H1 for facilities using Profibus-based fieldbus networks.
- MTL 8611-FT-NA – Compact version of the MTL 8610-FT-NA (60% smaller footprint) with support for 16 fieldbus devices, optimized for space-constrained installations (e.g., offshore platform control panels).
- MTL 8750-PWR – Companion redundant power supply module that provides stable 24 V DC power to the MTL 8610-FT-NA in hazardous areas, ensuring uninterrupted fieldbus communication.
Company Expertise & Application Areas
As a certified partner of industry leaders such as MTL Instruments, Emerson, and ABB, we provide key components for critical sectors:
- Oil & Gas: Foundation Fieldbus connectivity for offshore platforms and onshore wellheads (e.g., using the MTL 8610-FT-NA to link smart pressure/temperature transmitters to the DCS in Zone 1 areas).
- Petrochemical Industry: FF H1 network expansion in refineries and chemical plants, leveraging the module’s high device density to connect sensors and valves across large processing units.
- Chemical Manufacturing: Safe fieldbus communication for batch reactors and solvent storage systems, where the MTL 8610-FT-NA’s intrinsic safety certification prevents ignition risks during device data transmission.
We prioritize professionalism in pre-sales and after-sales service: our team of automation experts provides technical consultations to verify the MTL 8610-FT-NA aligns with your fieldbus network requirements, and we offer a one-year warranty on all products. If you cannot find the model you need, please contact us immediately.
