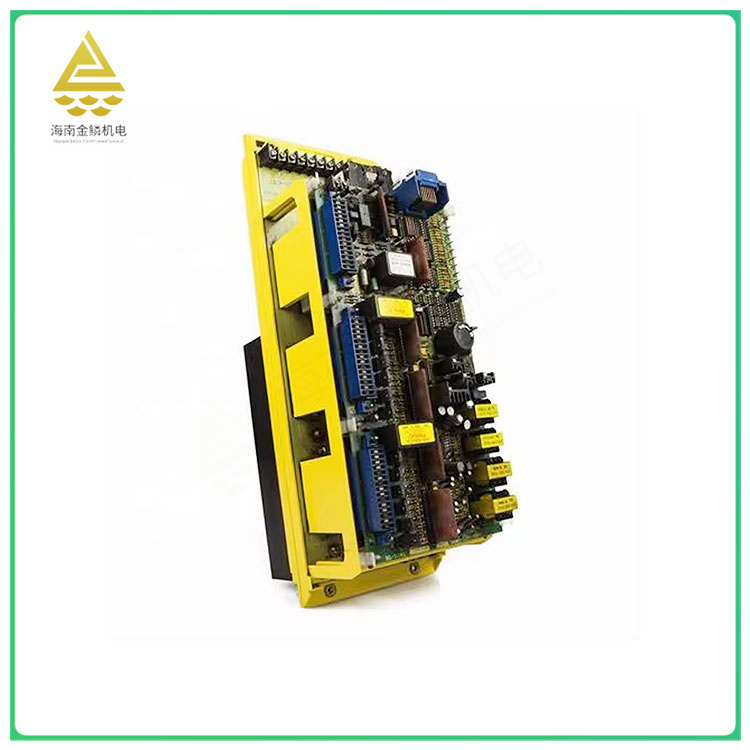

A06B-6058-H223 Ac servo drive unit control circuit and communication interface

A06B-6058-H223 AC servo drive unit is an electronic device for controlling AC servo motors. Its main function is to convert the control signal into the drive signal that the motor can understand, so as to realize the precise control of the servo motor. A06B-6058-H223 AC servo drive unit usually includes power electronic circuit, control circuit and communication interface. The power electronic circuit is responsible for converting AC power to DC power and providing the required voltage and current to the servo motor. The control circuit is responsible for receiving the control signal from the controller and controlling the power electronic circuit according to the requirements of the control signal, so as to realize the accurate control of the servo motor. The communication interface is used to realize the communication between the AC servo drive unit and the controller in order to transmit the control signal and status information. A06B-6058-H223 AC servo drive unit has the advantages of high precision, high speed and GE reliability, and is widely used in industrial automation, robot control, precision instruments and other fields. When selecting the AC servo drive unit, it is necessary to consider its control accuracy, dynamic response, speed regulation range, stability and other performance indicators, and select and configure according to the specific application requirements.
