Product Overview
The

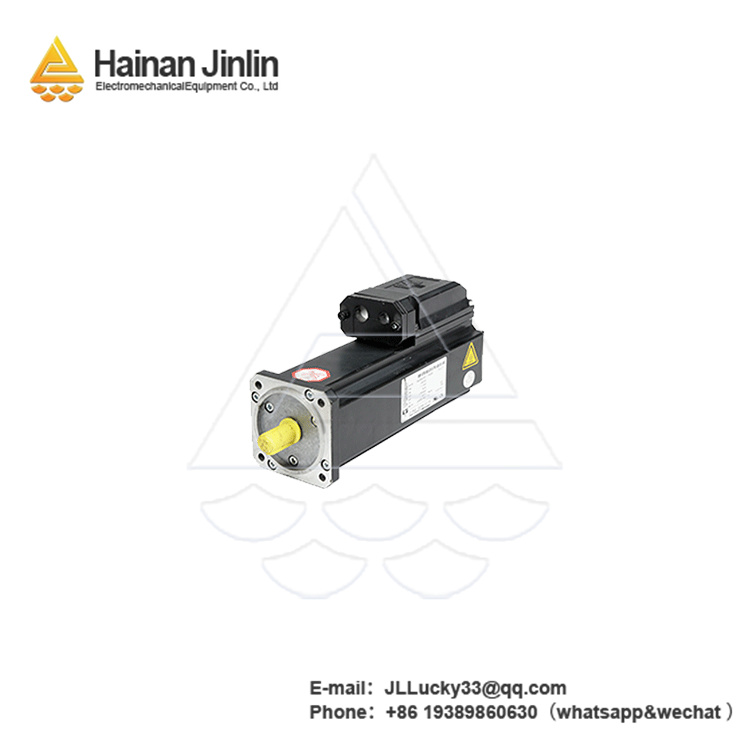

SM-100-30-080-P0-45-S1B1 is a precision-engineered servo motor designed to deliver high-performance motion control in industrial automation applications. Built with advanced motor technology, this servo motor excels in providing accurate speed and position regulation, making it ideal for sectors such as robotics, CNC machining, and packaging machinery. Key features of the
SM-100-30-080-P0-45-S1B1 include a compact frame size, high torque output, and seamless integration with servo drives, ensuring reliable operation in demanding production environments. Whether deployed in high-speed assembly lines or precision manufacturing processes, the
SM-100-30-080-P0-45-S1B1 offers consistent performance, minimizing positioning errors and maximizing throughput. Its robust construction and efficient heat dissipation further enhance its durability, making the
SM-100-30-080-P0-45-S1B1 a trusted solution for critical motion control tasks.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Product Type
|
AC Servo Motor
|
|
Rated Power
|
1.0 kW
|
|
Rated Torque
|
3.0 Nm
|
|
Maximum Speed
|
3000 RPM
|
|
Voltage Rating
|
380-480V AC
|
|
Frame Size
|
80 mm (flange diameter)
|
|
Protection Class
|
IP65
|
|
Operating Temperature
|
-10°C to +40°C
|
|
Feedback Device
|
Absolute encoder (17-bit resolution)
|
Key Features and Benefits
High Precision Motion Control
The
SM-100-30-080-P0-45-S1B1 integrates a high-resolution 17-bit absolute encoder, enabling precise position feedback with minimal latency. This ensures accurate positioning down to micrometer levels, critical for applications like CNC machining and electronic component assembly, where even minor deviations can compromise product quality.
Robust Torque and Speed Performance
With a rated torque of 3.0 Nm and a maximum speed of 3000 RPM, the
SM-100-30-080-P0-45-S1B1 delivers the power needed for both heavy-duty tasks and high-speed operations. Its ability to maintain consistent torque across a wide speed range makes it versatile for dynamic applications, such as robotic arm movements and conveyor belt synchronization.
Durable and Reliable Design
Engineered to withstand harsh industrial conditions, the SM-100-30-080-P0-45-S1B1 features an IP65 protection rating, shielding internal components from dust, water jets, and oil contamination. Its rugged housing and efficient heat sink design prevent overheating during prolonged operation, extending service life and reducing maintenance needs.
Seamless System Integration
The
SM-100-30-080-P0-45-S1B1 is compatible with Bosch Rexroth’s IndraDrive servo drives, as well as third-party controllers supporting standard communication protocols like EtherCAT and PROFINET. This flexibility simplifies system setup and allows for easy integration into existing automation architectures, reducing installation time and costs.
Energy Efficiency
Designed with low-loss motor windings and optimized magnetic circuits, the SM-100-30-080-P0-45-S1B1 minimizes energy consumption without sacrificing performance. This efficiency not only lowers operational costs but also reduces heat generation, contributing to a more sustainable production environment.
Related Models
- SM-100-20-080-P0-45-S1B1 – Lower torque variant (2.0 Nm) of the SM-100-30-080-P0-45-S1B1, suitable for lighter load applications.
- SM-100-30-080-P0-60-S1B1 – High-speed version with a maximum speed of 6000 RPM, ideal for rapid positioning applications.
- SM-100-30-080-P1-45-S1B1 – Explosion-proof variant of the SM-100-30-080-P0-45-S1B1, certified for hazardous environments.
- SM-110-30-100-P0-45-S1B1 – Larger frame size (100 mm) model with extended torque capacity, compatible with the same drive systems.
- SM-100-30-080-P0-45-S2B1 – Alternative feedback version with a 20-bit encoder, offering enhanced resolution for ultra-precise tasks.
We provide expert pre-sales support to help integrate the
SM-100-30-080-P0-45-S1B1 into your motion control system, including compatibility checks and technical guidance. All units come with a one-year warranty and dedicated after-sales service. For further inquiries or assistance with related models, contact us via WhatsApp: [
