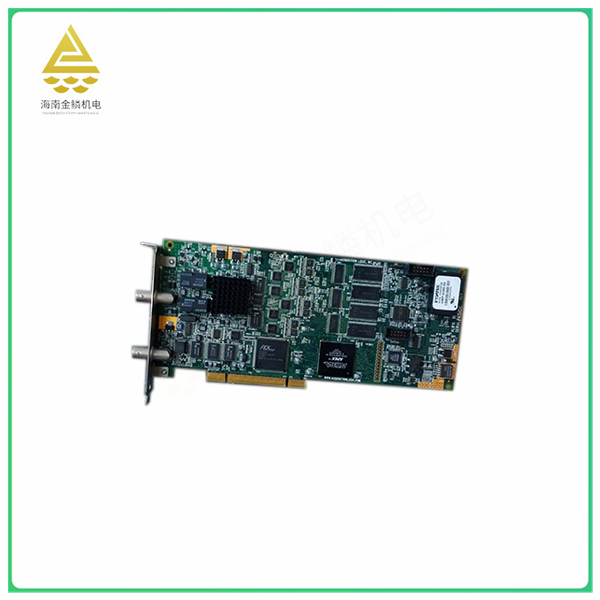

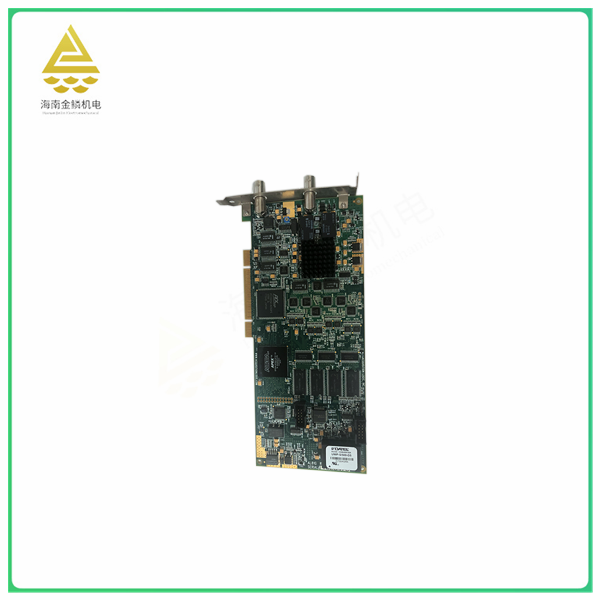

The AL81G is an analog-to-digital converter board with single-channel digitization with 8-bit resolution and sampling frequencies up to 1 GHz. It has a useful dynamic range of about 40 dB, suitable for digitizing RF signals up to about 200 MHz. The AL81G also features a single input function for an orthogonal encoder or step and direction signals, allowing the digitizer to keep up with the movement of the high-speed scanning system.
In addition, the AL81G analog-to-digital converter board has a variety of communication interfaces, such as Ethernet, serial ports, etc., in order to communicate and exchange data with other devices and systems. It also has programmable capabilities that can be configured and customized for specific application needs.
Overall, the AL81G ADC board is a high-performance module suitable for digitizing signals from UT340 or other high frequency pulse receivers, and is widely used in industrial automation, sensors, actuators and other fields.

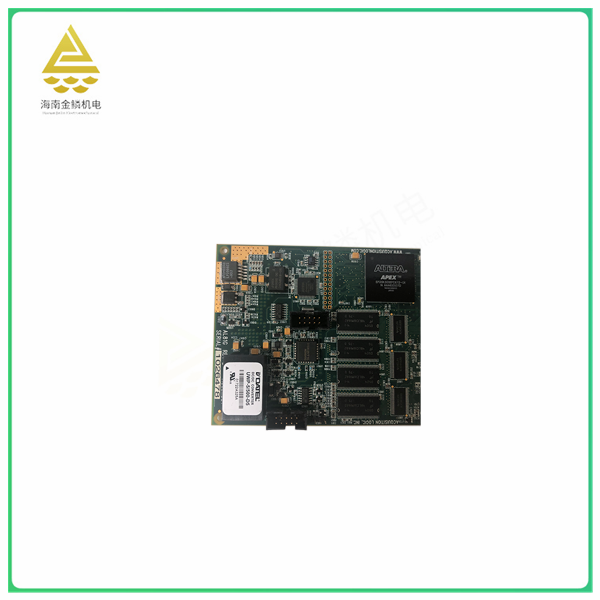

The AL81G analog input electronic module is an electronic component or circuit board used to receive and process analog signals. Its main function is to convert analog signals into digital signals for further processing, analysis or control.
Analog input electronic modules typically include the following components:
Analog input interface: AL81G is used to receive analog signal inputs, such as voltage, current, thermocouple, resistance sensors, etc.
Signal conditioning circuit: the input analog signal is amplified, filtered, calibrated and other processing to improve the quality and accuracy of the signal.
AL81G analog-to-Digital Converter (ADC) : Converts an analog signal to a digital signal so that it can be processed by a microcontroller or digital signal processor (DSP).
Microcontroller or DSP: The AL81G is used to control and process digital signals and perform tasks such as data acquisition, calculation, and logical judgment.
AL81G communication interface: Used to communicate with other devices or systems, such as serial ports, USB, and Ethernet.
Power supply and clock: Provides the power supply and clock signals required by the module.
AL81G analog input electronic module is widely used in industrial automation, instrumentation, medical equipment, environmental monitoring and other fields, used to collect and process analog signals of various physical quantities.
The benefits of this module include:
High performance: The AL81G has high resolution, high sampling frequency and wide dynamic range to provide high-quality digital signals.
Various communication interfaces: The AL81G provides a variety of communication interfaces, such as Ethernet, serial port, etc., for easy connection and integration with other devices and systems.
Programmability: The AL81G has programmable capabilities that can be configured and customized to meet specific application requirements, increasing its flexibility and adaptability.
However, the AL81G also has some drawbacks:
Higher cost: Compared to some low-cost analog-to-digital converters, the AL81G has a higher cost, which may increase the cost of the entire system.
High power consumption: Due to the high performance of the AL81G and various communication interfaces, its power consumption is relatively high, which may have a certain impact on the system power consumption.
Need professional maintenance: AL81G is a professional high-performance analog-to-digital conversion board, requiring professional maintenance and operation, increasing the difficulty of use and maintenance costs.
Overall, the AL81G ADC board is a high-performance, fully functional module for applications that require high signal quality. However, its cost, power consumption and professional maintenance requirements also need to be considered when choosing and using.
