Product Overview

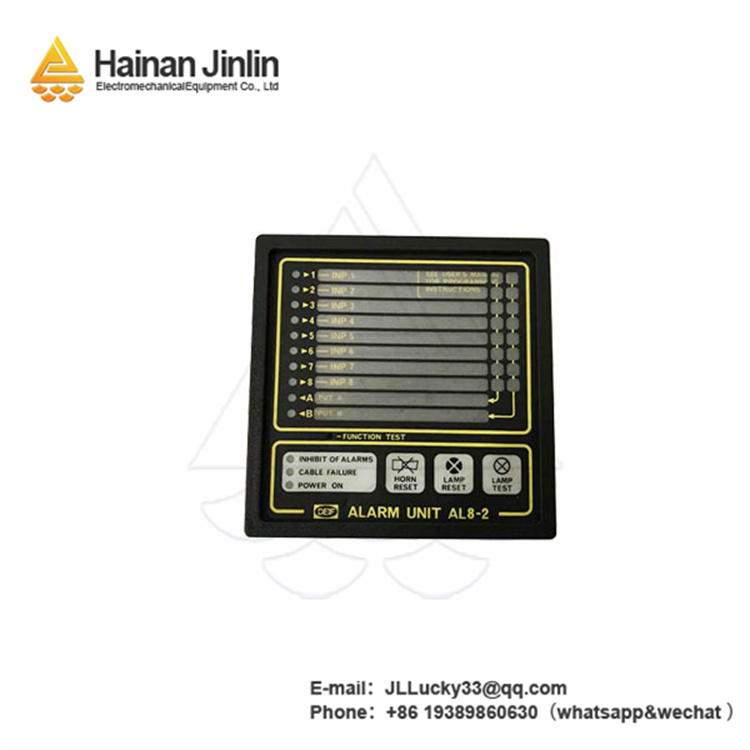

The DEIF AL8 - 2 is a highly efficient alarm panel meticulously designed for industrial and marine applications. With its array of advanced features, it serves as a reliable solution for monitoring and managing alarms in critical environments such as industrial plants, power generation facilities, and marine vessels.
This alarm panel is equipped with eight digital alarm inputs, allowing for seamless connection with external mechanical alarm contacts. Whether it's detecting equipment malfunctions in a manufacturing line or safety hazards on a ship, the AL8 - 2 ensures comprehensive alarm coverage. Complemented by three relay outputs, it provides flexibility in terms of how alarms are communicated and acted upon. One of the relay outputs is dedicated to connecting to an audible/visual alarm, ensuring immediate alert to operators, while the other two can be programmed by the user based on specific alarm input conditions. This adaptability makes the AL8 - 2 suitable for a wide range of scenarios where custom alarm responses are required.
Hainan Jinlin Mechanical & Electrical, as a distributor of industrial control products, brings you the DEIF AL8 - 2. We are committed to providing top - notch products along with our extensive industry knowledge and market insights. Operating under the "Customer First, Forge Ahead" philosophy, we strive to offer high - quality customer service to meet all your industrial control needs.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Manufacturer
|
DEIF
|
|
Product Type
|
Alarm Panel
|
|
Alarm Inputs
|
8 digital inputs
|
|
Relay Outputs
|
3 relay outputs
|
|
Input Voltage
|
12 - 48 VDC
|
|
Alarm Input Configuration
|
Individual programming for NO (Normally Open) or NC (Normally Closed) contacts
|
|
Delay Function
|
Adjustable delay for alarm inputs from 0.40 s to 40 s in 1 - s intervals
|
|
Alarm Indicators
|
8 LEDs (1 - 8) for precise alarm indication
|
|
Dimensions
|
Compact Q96 design (dimensions may vary, but typically fits standard industrial enclosures)
|
|
Weight
|
Approximately 350 - 420 gm
|
|
Certification
|
Approved by classification societies (suitable for use in industries with strict safety and quality standards)
|
Key Features and Benefits
Advanced Alarm Input Capabilities
The eight digital alarm inputs of the AL8 - 2 are highly configurable. Each input can be individually set to respond to either NO or NC alarm contacts. This level of customization ensures compatibility with a wide variety of sensors and alarm - triggering devices, regardless of their default contact state. For example, in an industrial setting where different types of machinery may have different alarm contact configurations, the AL8 - 2 can easily adapt.
Adjustable Delay Feature
The ability to program a delay for each alarm input is a significant advantage. In situations where short - term fluctuations may cause false alarms, the delay function can be used to filter out these transient events. For instance, in a power plant where equipment may experience momentary voltage dips that are not indicative of a real problem, the delay can be set to ignore these brief anomalies and only register an alarm if the abnormal condition persists for a pre - defined period. This not only reduces unnecessary alarm notifications but also helps operators focus on actual issues that require attention.
Clear Alarm Indicators
Equipped with eight LEDs, the AL8 - 2 provides clear and immediate visual feedback. When an alarm is triggered, the corresponding LED flashes red, making it easy for operators to identify the source of the alarm at a glance. In the event of multiple alarms occurring simultaneously, the panel is designed to prioritize and flash the LED of the first - received alarm first. This feature is crucial in high - stress situations where quick identification of the most urgent alarm is essential for efficient response.
Versatile Relay Outputs
As mentioned earlier, the three relay outputs offer great flexibility. The dedicated audible/visual alarm output ensures that alarms are not only detected but also effectively communicated to the relevant personnel. The two user - programmable relay outputs can be configured to perform various functions. They can be used to activate additional safety systems, such as emergency shutdowns or ventilation systems, based on specific alarm conditions. This allows for a more integrated and automated response to alarms, enhancing overall system safety and efficiency.
Compact and Easy - to - Program Design
The compact Q96 design of the AL8 - 2 makes it suitable for installation in spaces with limited room, such as control panels on ships or in small industrial enclosures. Programming the panel is extremely user - friendly, with push - button controls that enable operators to set up input configurations, delay times, and output responses without the need for extensive technical knowledge. This ease of use reduces installation and setup time, getting the alarm monitoring system up and running quickly.
We stand behind the quality of the DEIF AL8 - 2 with a one - year warranty. Our technical team offers pre - sales support to help you determine the best fit for your specific application and post - sales assistance for installation, calibration, and any troubleshooting needs.
Related Models
- AL8 - 1: A simplified version of the AL8 - 2 with four digital alarm inputs and two relay outputs. Ideal for smaller - scale applications where a reduced number of alarm monitoring points are required, such as in a small workshop or a single - unit production facility.
- AL8 - 2 Plus: An upgraded model of the AL8 - 2 that includes additional communication interfaces, such as Modbus RTU or Ethernet. This allows for seamless integration with larger industrial control systems, enabling remote monitoring and control of the alarm panel. It is well - suited for modern industrial plants with complex automation setups.
- AL8 - 2 Marine - Grade: Specifically designed for marine applications, this variant has enhanced protection against saltwater corrosion and extreme environmental conditions. It may also have additional certifications required for use in the maritime industry, making it a reliable choice for vessels operating in harsh sea environments.
- AL8 - 2 - R: A redundant version of the AL8 - 2 with dual power inputs and automatic failover capabilities. In critical applications where continuous alarm monitoring is essential, such as in a hospital's emergency power system or a data center's backup power supply, the AL8 - 2 - R ensures that the alarm system remains operational even in the event of a power failure or component malfunction.
