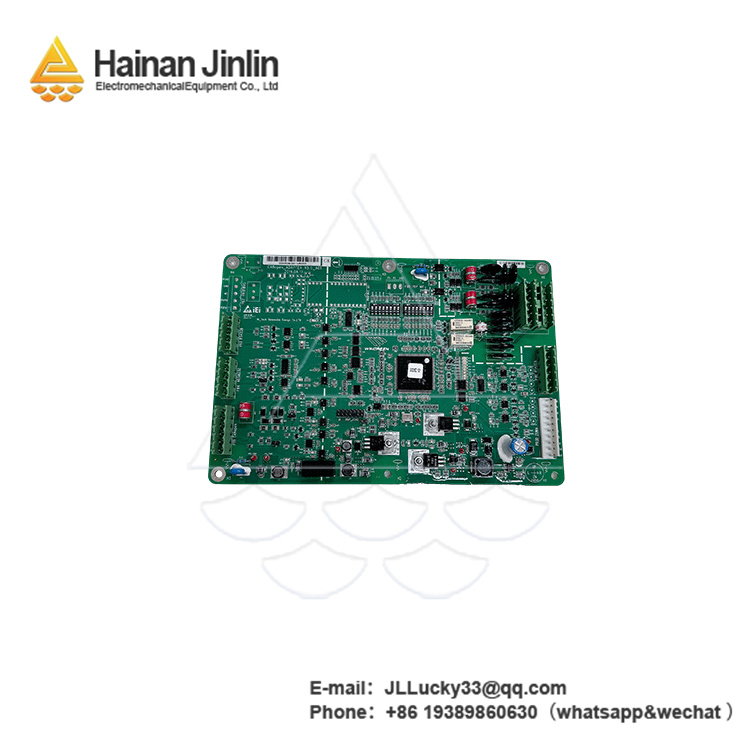

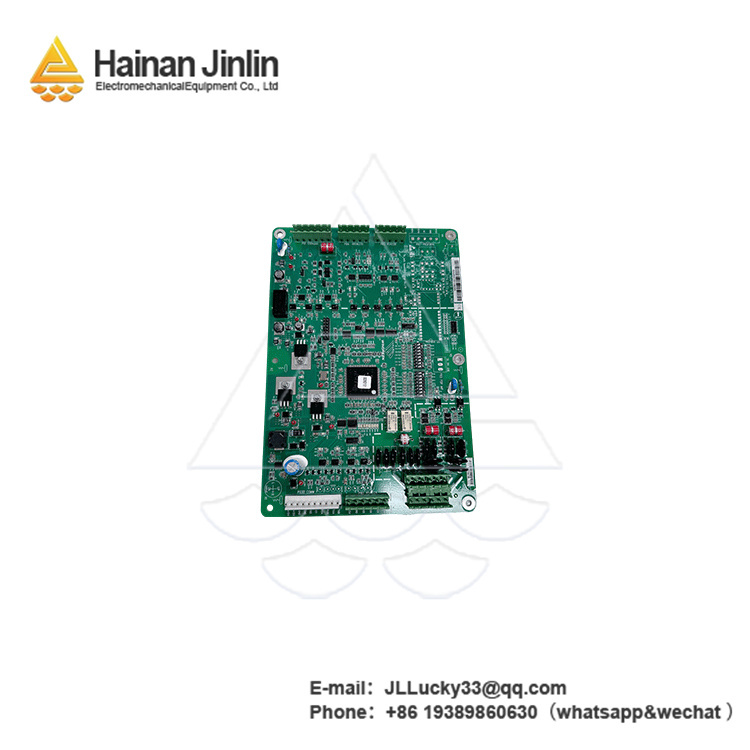

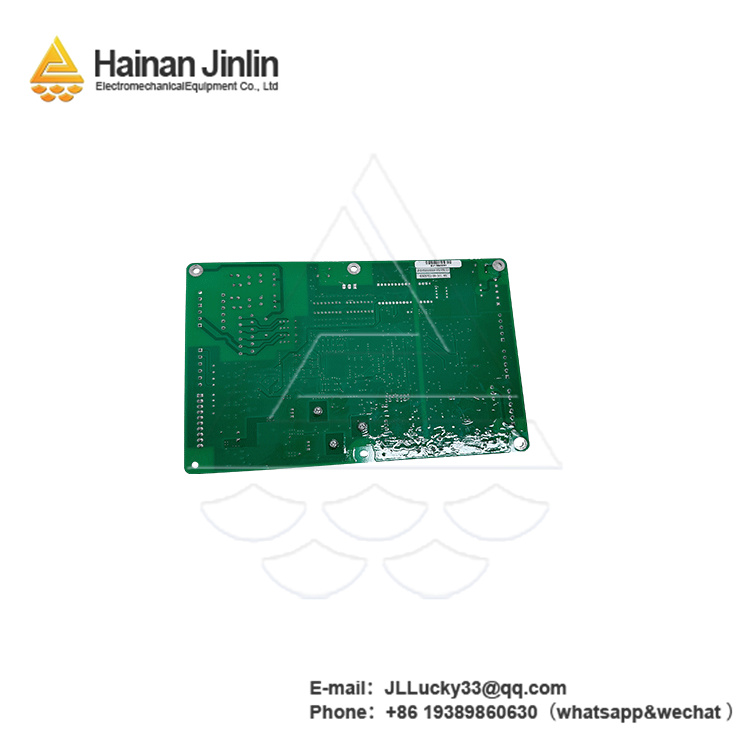

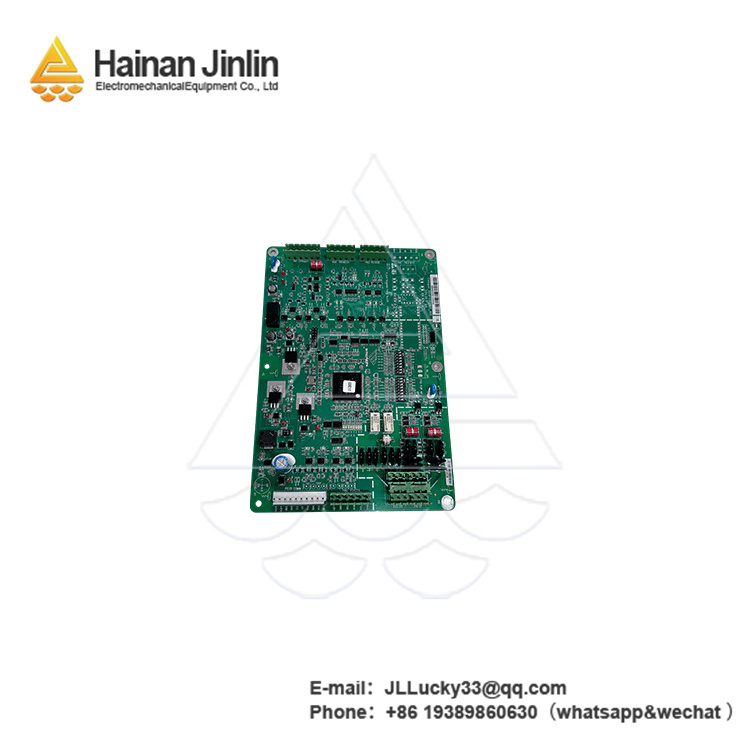

Product Overview
The 03ZSTI2-00-501-R is a high-precision industrial input module designed to excel in critical automation and control systems. As a key component in industrial sensing and data acquisition, the 03ZSTI2-00-501-R specializes in converting analog signals from sensors and transducers into digital data for processing by PLCs or DCSs. This module is engineered to deliver exceptional accuracy and reliability, making it ideal for applications where precise measurement is paramount—such as in chemical processing, pharmaceutical manufacturing, and energy production. The 03ZSTI2-00-501-R stands out for its robust construction, wide input range, and advanced filtering capabilities, ensuring stable performance even in noisy industrial environments. With its seamless integration with common control systems and user-friendly calibration features, the 03ZSTI2-00-501-R simplifies system setup and maintenance, making it a valuable asset for optimizing process control and ensuring product quality.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
03ZSTI2-00-501-R
|
|
Product Type
|
Analog Input Module
|
|
Input Channels
|
8 differential channels
|
|
Input Signal Range
|
4-20 mA, 0-10 V DC
|
|
Resolution
|
16-bit
|
|
Power Requirements
|
24V DC, 0.25A typical
|
|
Operating Temperature Range
|
-5°C to 60°C (23°F to 140°F)
|
|
Isolation
|
500V AC channel-to-backplane isolation
|
|
Mounting Type
|
DIN rail mounting (35mm standard)
|
Key Features and Benefits
The
03ZSTI2-00-501-R is designed to meet the rigorous demands of industrial measurement, offering a blend of precision, durability, and flexibility. Its 16-bit resolution ensures accurate conversion of analog signals, enabling precise monitoring of critical process variables such as pressure, flow, and temperature. This level of accuracy is essential for maintaining tight process control, reducing waste, and ensuring compliance with industry regulations.
Equipped with 8 differential channels, the 03ZSTI2-00-501-R supports both 4-20 mA and 0-10 V DC input signals, making it compatible with a wide range of industrial sensors and transducers. This versatility eliminates the need for multiple modules, simplifying system design and reducing costs. The module’s advanced filtering technology minimizes the impact of electrical noise and interference, ensuring stable and reliable data acquisition even in environments with heavy machinery or high electromagnetic activity.
Durability is a core strength of the 03ZSTI2-00-501-R. Its rugged design, combined with 500V AC isolation between channels and the backplane, protects against voltage spikes and ground loops, enhancing system safety and longevity. The module operates reliably across a temperature range of -5°C to 60°C, making it suitable for harsh industrial settings where environmental conditions may vary.
Installation and maintenance are streamlined with the
03ZSTI2-00-501-R’s DIN rail mounting design and tool-free wiring terminals, reducing setup time and simplifying replacements. Additionally, its compatibility with major PLC and DCS platforms ensures easy integration into existing systems, minimizing downtime during upgrades or expansions. Backed by a one-year warranty and expert technical support, the
03ZSTI2-00-501-R provides a cost-effective solution for precise analog data acquisition, enhancing process efficiency and reliability.
Related Models
- 03ZSTI2-00-500-R – Base model with 12-bit resolution, suitable for less demanding applications
- 03ZSTI2-00-502-R – Enhanced version with 24-bit resolution and extended temperature range (-20°C to 70°C)
- 03ZSTI2-00-503-R – Isolated variant with 1000V AC isolation, ideal for high-voltage environments
- 03ZSTO2-00-501-R – Analog output counterpart, designed to pair with the 03ZSTI2-00-501-R for complete I/O solutions
- 03ZSTI2-00-511-R – High-speed model with 1ms sampling rate, perfect for dynamic process monitoring
- 03ZSTI2-00-521-R – Compact version with 4 channels, optimized for space-constrained installations
- 03ZSTI2-00-531-R – Safety-rated model compliant with SIL 2, suitable for safety instrumented systems
- 03ZSTI2-00-541-R – Wireless-enabled variant with Bluetooth connectivity for remote calibration and monitoring
As a reliable distributor, we offer expert pre-sales guidance to help you determine if the
03ZSTI2-00-501-R aligns with your analog input needs, along with dedicated after-sales support to ensure seamless integration and operation. All products, including the
03ZSTI2-00-501-R, come with a one-year warranty. If you need a specific model not listed, please contact us via WhatsApp: [
https://wa.me/+86 19389860630] or email:
jllucky33@qq.com for prompt assistance.
