Product Overview

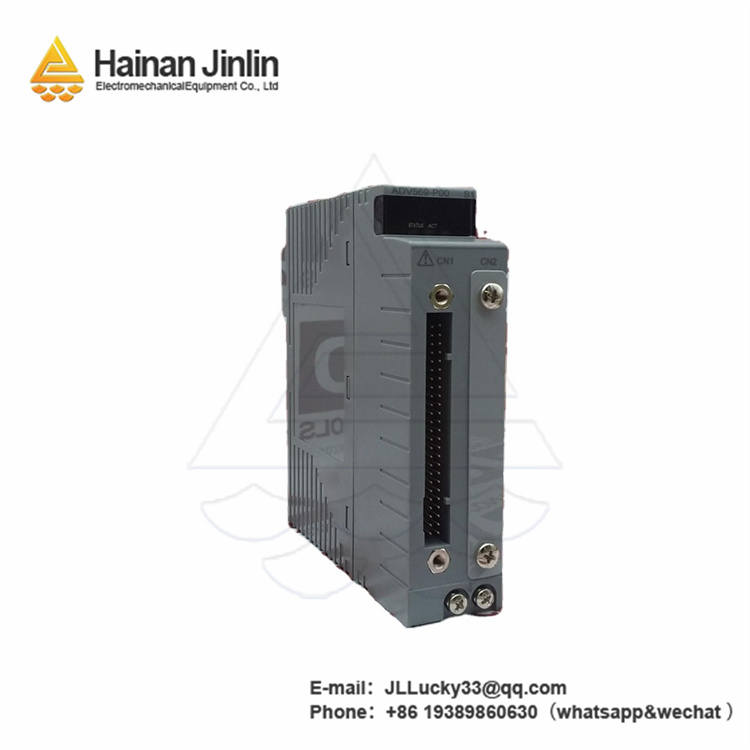

The ADV569-P00 is a high-performance analog input module designed to deliver accurate signal acquisition and processing in industrial automation systems. Developed for seamless integration into distributed control systems (DCS) and PLC-based setups, this module is a critical component in applications such as process monitoring, energy management, and quality control. Core features of the ADV569-P00 include high-resolution data conversion, wide input range, and robust noise immunity, ensuring reliable measurement of variables like temperature, pressure, and flow in harsh industrial environments. Whether deployed in chemical plants, power stations, or manufacturing facilities, the ADV569-P00 stands out for its precision and durability, making it a trusted choice for critical monitoring tasks. Its modular design and easy configuration further enhance its usability, solidifying the ADV569-P00 as a versatile solution for industrial data acquisition.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
ADV569-P00
|
|
Manufacturer
|
Advantech
|
|
Product Type
|
Analog Input Module
|
|
Input Channels
|
8 differential channels
|
|
Input Range
|
±10V, ±5V, 0-10V, 0-5V
|
|
Resolution
|
16 bits
|
|
Sampling Rate
|
100 kS/s (per channel)
|
|
Communication
|
Modbus TCP, Ethernet/IP
|
|
Operating Temp
|
-10°C to 60°C
|
Key Features and Benefits
The
ADV569-P00 excels in measurement accuracy, with a 16-bit resolution and low total error (±0.01% of full scale) that ensures precise capture of even small signal variations—essential for applications like pharmaceutical manufacturing where tight process control is required. Its high sampling rate (100 kS/s per channel) enables real-time monitoring of fast-changing processes, such as transient pressure spikes in hydraulic systems.
Robust noise immunity is a standout feature of the ADV569-P00, achieved through advanced signal filtering and isolation (2.5 kV DC between channels and ground). This makes it ideal for use in environments with high electromagnetic interference (EMI), such as near heavy machinery or power distribution systems, where signal integrity is critical.
Integration with industrial networks is streamlined through support for Modbus TCP and Ethernet/IP, allowing the ADV569-P00 to connect seamlessly with PLCs, SCADA systems, and cloud-based monitoring platforms. This interoperability simplifies data aggregation and analysis, enabling proactive decision-making based on real-time process data.
The ADV569-P00 features a ruggedized design with DIN-rail mounting, ensuring easy installation in control cabinets. It also includes built-in diagnostics for channel faults and communication errors, providing instant alerts to maintenance teams and reducing troubleshooting time. Backed by a one-year warranty and expert technical support, the ADV569-P00 offers long-term reliability and peace of mind for industrial operators.
Related Models
- ADV569-P01 – Enhanced version of the ADV569-P00 with 16 input channels, suitable for large-scale monitoring systems.
- ADV568-P00 – 12-bit resolution model, offering a cost-effective alternative to the ADV569-P00 for less demanding applications.
- ADV569-P00-EX – Explosion-proof variant of the ADV569-P00, certified for use in hazardous areas (ATEX Zone 2).
- ADV570-P00 – Analog output module designed to complement the ADV569-P00 in closed-loop control systems.
- ADV569-P00-L – Low-power version of the ADV569-P00, ideal for remote installations with limited power supply.
- ADV569-P02 – High-temperature model (-20°C to 70°C) built on the ADV569-P00 platform, suitable for extreme environments.
- ADV569-P00-W – Wireless-enabled model with Wi-Fi connectivity, expanding the ADV569-P00’s flexibility for remote monitoring.
