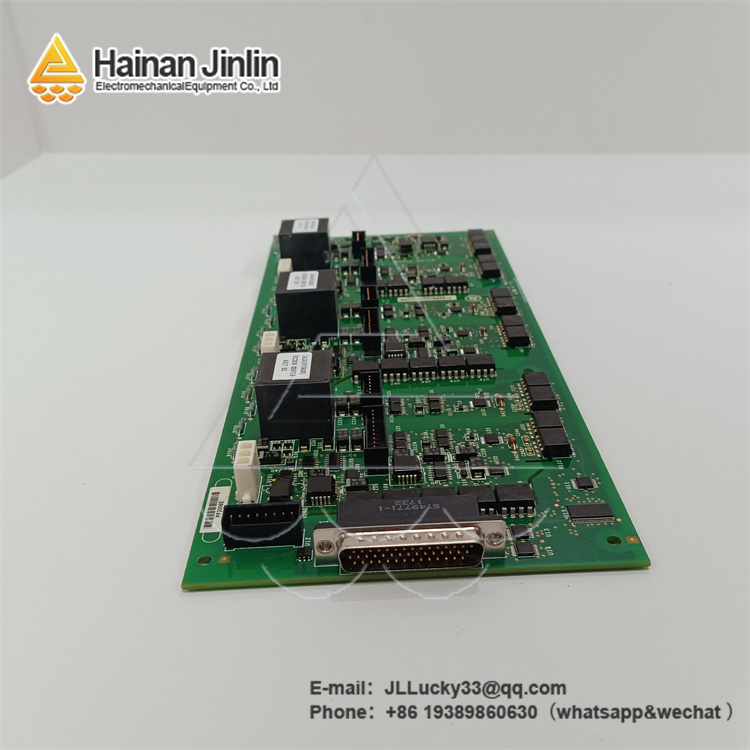

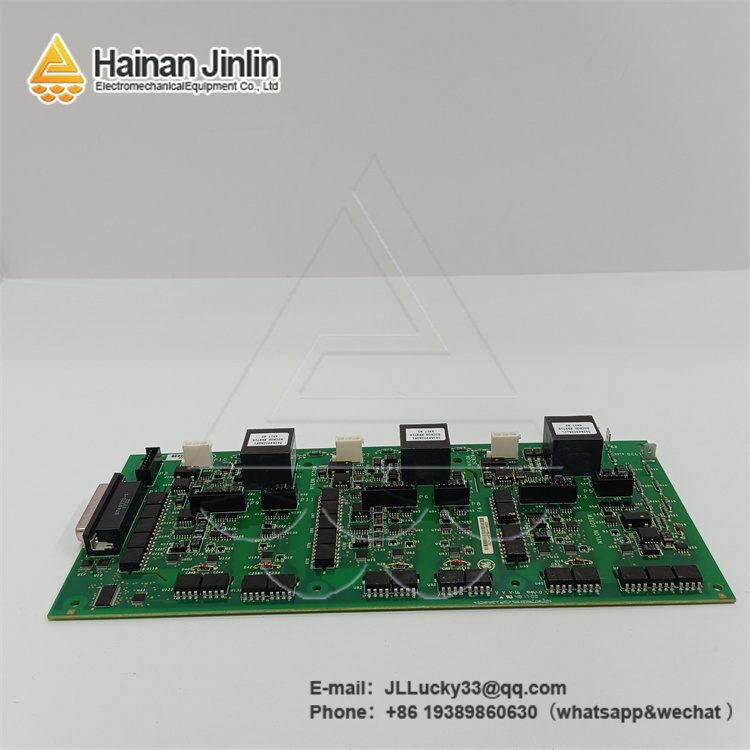

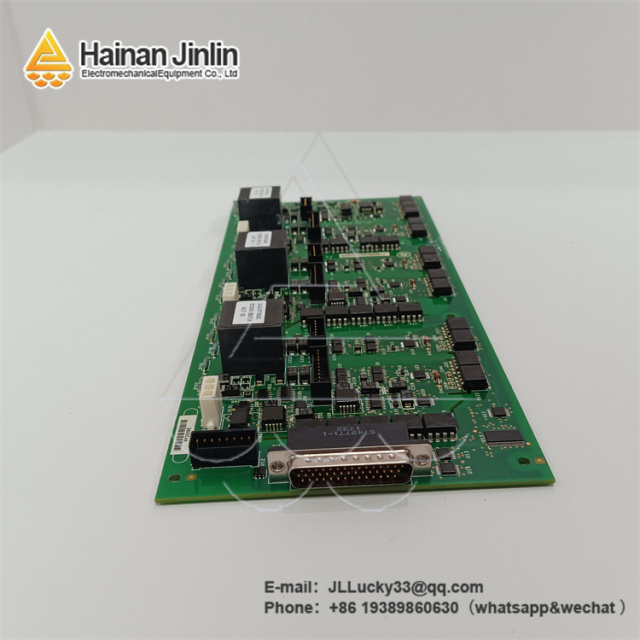

GE IS210BAPAH1A module technical specifications
Core function: Analog signal processor, used for emergency protection and acoustic monitoring subsystems of gas/steam turbine control systems
System Platform: GE Mark VI/Mark VIe Industrial Control System
Signal processing capability: Provide sensor analog signal conditioning (remove DC bias/amplify AC content)
• Supports voltage transformer (PT) input
16 bit resolution analog-to-digital conversion
Redundancy design supports triple module redundancy (TMR) configuration, eliminating single point of failure 5
Electrical characteristics Operating voltage: 24VDC ± 10%
Temperature range: -40 ° C~+70 ° C (industrial grade)
Key application scenarios
▶ Emergency protection system
Integrated voltage transformers (PTs) handle bus/generator voltage inputs, monitor anomalies in real-time, and trigger safe shutdowns.
▶ Acoustic dynamic monitoring
Collaborate with SAMB terminal board to collect mechanical vibration acoustic data of gas turbines (Frame 6/7/9 series).
▶ Industrial Process Control
Precision sensor signal processing covering fields such as oil and gas, power and water conservancy, and automobile manufacturing.
Physical and Interface Characteristics
Size: 130 × 233 × 52 mm (rail installation)
Connector: DC-37 pin industrial interface
Protection: Anti electromagnetic interference (EMI) design, dust-proof and anti-corrosion coating
Maintenance: Supports hot swappable replacement
