AO801 3BSE020514R1 | Analog input module | AO920N 3KDE175533L9200

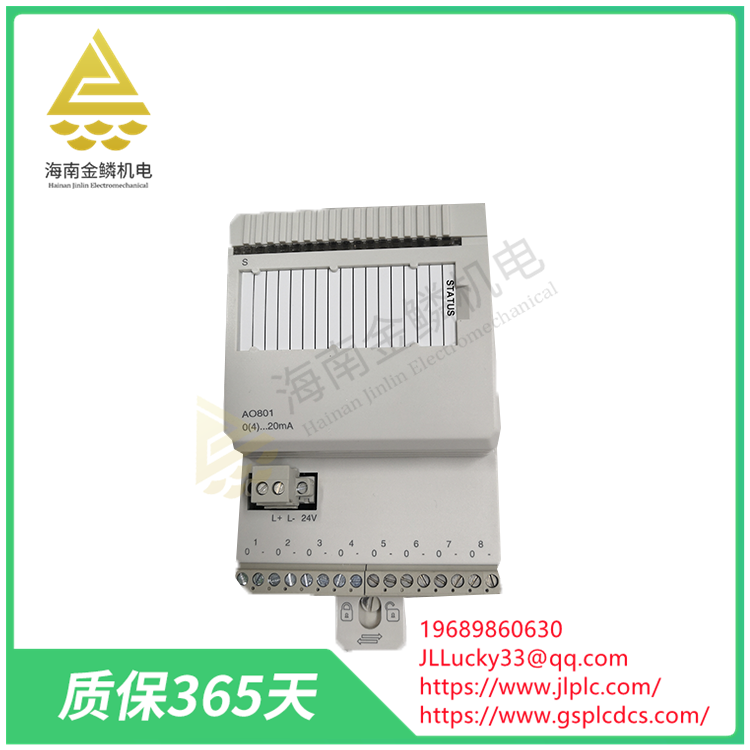

Product model: AO801
Item number: 3BSE020514R1
Category Description: Analog input module
Product color: new, not new
Warranty: One year
Stock: Yes
Brand: ABB
dimension
Width 86.1 mm (3.4 in)
Depth 58.5 mm (2.3 in)
Height 110 mm (4.33 in)
Weight 0.24 kg (0.53 lb)
Detailed data
Resolution 12 bits
Isolation groups are isolated from the ground
Below/out of range - / +15%
The maximum output load is 850 OhMs
Error 0, 1%
The typical temperature drift is 30 ppm/°C and the maximum is 50 ppm/°C
Ascent time 10 microseconds
The update cycle time is 1 ms
Current limiting Short circuit protection Limited current output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 volts
Dielectric test voltage 500 V AC
Power consumption 3.8 Watts
Current consumption +5 V Modulebus 70 MA
The AO801 analog output module has 8 unipolar analog output channels. The module performs self-diagnosis periodically. Low internal power Set the module to INIT state (no signal from the module).
Characteristics and advantages
8 channel 0... 20 mA, 4 to 20 mA output
The OSP sets the output to a scheduled state when an error is detected
Analog output should be shorted to ZP or +24 V
This is achieved with a detachable connector
Process and power connection
