Product parameter

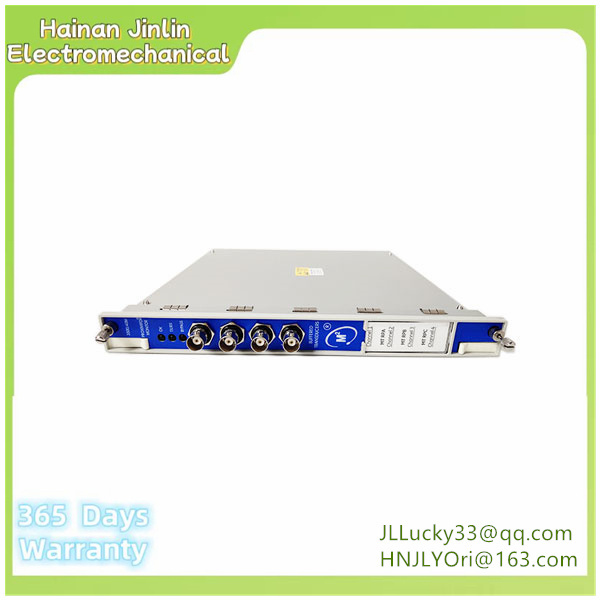

Part Number :3500/40M 176449-01
Dimensions: 2.2cm x 12.4cm x 12.6cm
Weight: 0.1kg
Country of origin: USA
Category: Monitor
Series and function
Series: Part of the Bently Nevada 3500 series of mechanical protection systems.
Function: It is mainly used to monitor the vibration and position of rotating machinery and other parameters, through real-time monitoring of these parameters, potential faults can be discovered in advance, so as to avoid the shutdown and loss caused by equipment failure.
The main purpose of 3500/40m monitoring is to provide:
one. Mechanical protection for driving alarms is set by constantly comparing and configuring monitoring parameters for alarms.
2. Basic machine information for operators and maintenance personnel.
Each channel, depending on the configuration, typically has various parameters of its input signal called "static values". The user can configure the static value and danger value for each activity to any two alert setpoints for the active static value.
3500/40 position display
The 3500/53 modules can be combined into a two out of two or two (recommended) system.
Redundant power supply in 3500 includes overspeed detection system use requirements.
The highly modular design of the 3500 system includes:
.3500/05 Instrument frame (required)
.One or two 3500/15 power supplies (required)
.3500/22M Transient Data interface module or 3500/20 Frame interface module (required)
. One or two 3500/25 key phase modules (optional)
Purpose:
Monitor the health of rotating machinery
Fault diagnosis
forewarning
Trend analysis
Application field:
Power industry: Vibration monitoring of generator sets, motors and other equipment
Petrochemical industry: Health monitoring of rotating machinery such as pumps and compressors
Aerospace industry: Vibration analysis of engines, turbines and other components
Paper industry: Vibration monitoring of paper machines, blowers and other equipment
