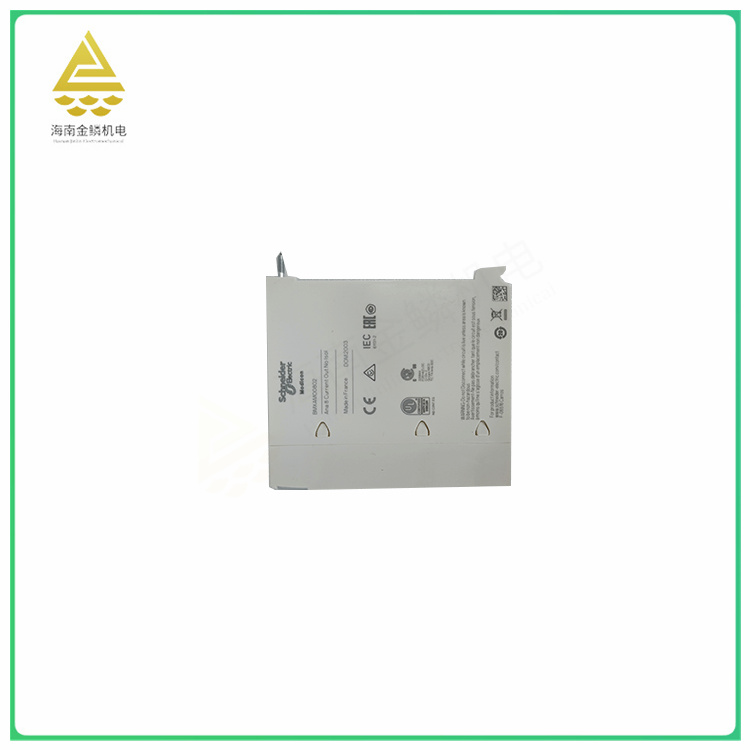

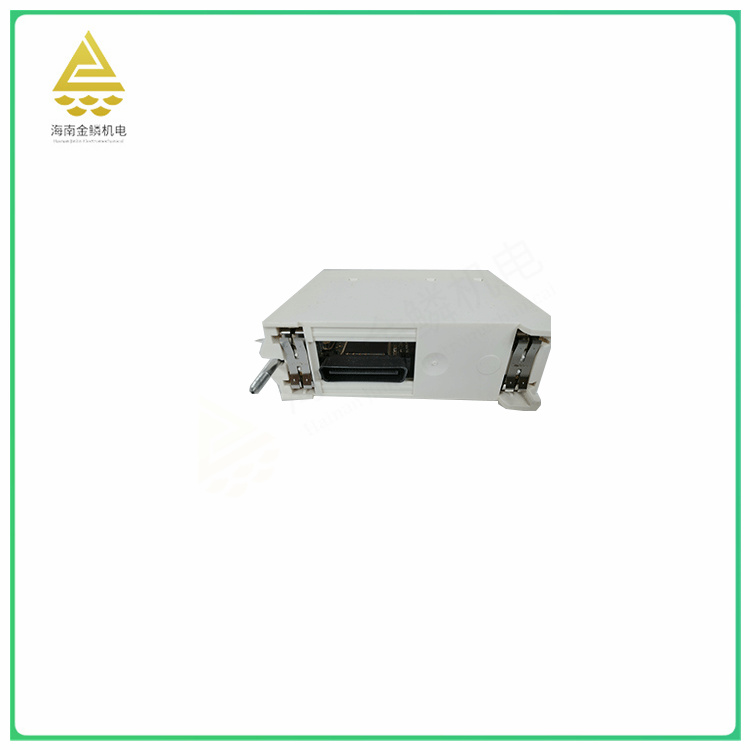

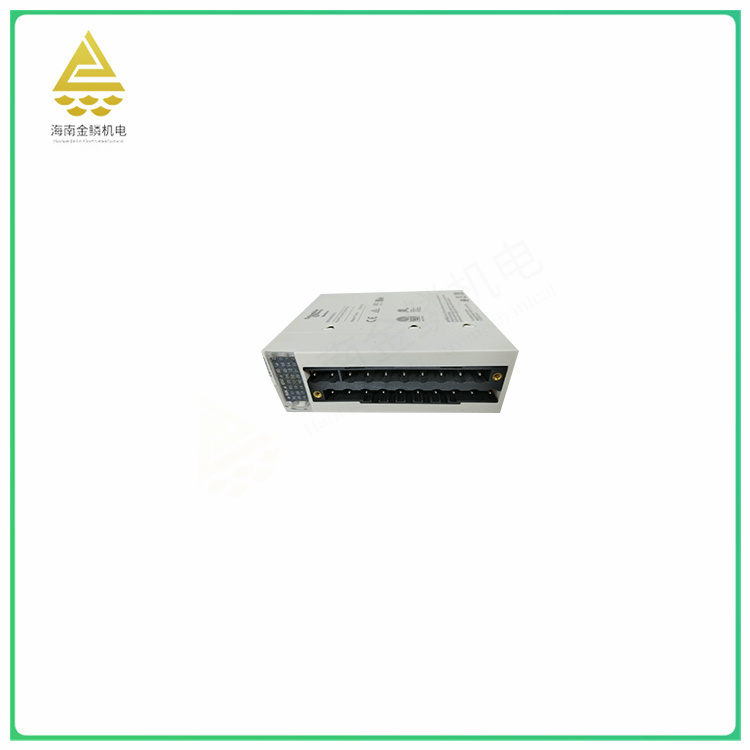

The BMXAMO0802 is a Schneider Electric non-isolated analog output module with 8 channels. It is sold on an original, off-the-shelf basis and has a 30% return rate. At Hunan Songyang Automation Equipment Co., LTD., the module has a two-year warranty period, but specific sales information was not disclosed. In addition, the modules are also sold in Jiangsu, Guangdong, Fujian and Shandong provinces, with prices ranging from 1,000 yuan to 2,700 yuan. These vendors offer different warranty periods and prices, but specific sales information is not fully disclosed.
Overall, the BMXAMO0802 is a powerful, high-performance analog output module, suitable for a variety of high-precision, high-reliability control scenarios, such as industrial automation, intelligent manufacturing, energy management and other fields.
Function and application of BMXAMO0802 non-isolated analog output module
A non-isolated analog output module is an electronic device that converts a digital signal to an analog signal and outputs it to an external system or device. The main functions of the non-isolated analog output module include:
Digital to analog signal conversion: The BMXAMO0802 converts digital signals to analog signals, such as digital control signals to analog voltage or current outputs.
Output range and resolution: Provides adjustable output range and resolution to meet the needs of different applications.
Electrical isolation: Non-isolated analog output modules usually do not provide electrical isolation, meaning that there is no electrical isolation between the input and output signals. This may require special attention in some applications to ensure signal integrity and security.
Linearity and accuracy: Maintain the linear relationship between the output signal and the input signal, and provide a certain degree of accuracy and stability.
Applications of the BMXAMO0802 non-isolated analog output module include:
Industrial control: used to control and monitor various parameters in industrial processes, such as temperature, pressure, flow, etc.
Automation system: Used in automated production lines, robots, instrumentation and other fields to achieve the control and regulation of physical quantities.
Data acquisition: BMXAMO0802 is used for the acquisition and transmission of analog signals, such as sensor signals.
Laboratory and test equipment: for the generation and testing of analog signals, as well as for the commissioning and evaluation of electronic equipment.
It is important to note that in some applications, isolated analog output modules may be required to protect the system from electrical interference or to improve safety. Isolated analog output modules provide electrical isolation between input and output signals to reduce signal interference and protect equipment. The choice of the appropriate analog output module should be determined according to the specific application requirements and environmental conditions.
BMXAMO0802 In order to ensure the accuracy and stability of the analog output module, the following measures can be taken:
Select high-quality components: Use high-precision, low-drift analog components such as operational amplifiers, resistors and capacitors to ensure signal accuracy and stability.
Temperature compensation: BMXAMO0802 considers the impact of ambient temperature on the analog circuit and uses temperature compensation technology to reduce temperature drift.
Signal filtering: The use of suitable filters to remove noise and interference, improve the quality of the output signal.
Calibration and commissioning: Before installation and use, the analog output module is calibrated and commissioned to ensure that its output matches the desired signal range and accuracy.
Avoiding electromagnetic interference: The BMXAMO0802 takes appropriate electromagnetic compatibility measures, such as shielding, grounding, and filtering, to reduce the impact of external interference on analog signals.
Design stability considerations: In circuit design, consider stability factors, such as the gain of the feedback loop, phase margin, etc., to ensure the stability of the system.
Regular maintenance and inspection: Perform regular maintenance and inspection of analog output modules, clean connectors, check cable connections, and replace aging or damaged components.
Follow the manufacturer's recommendations: The BMXAMO0802 uses the analog output module according to the recommended operating methods and environmental conditions by referring to the user manual and technical specifications provided by the manufacturer.
