Product Overview

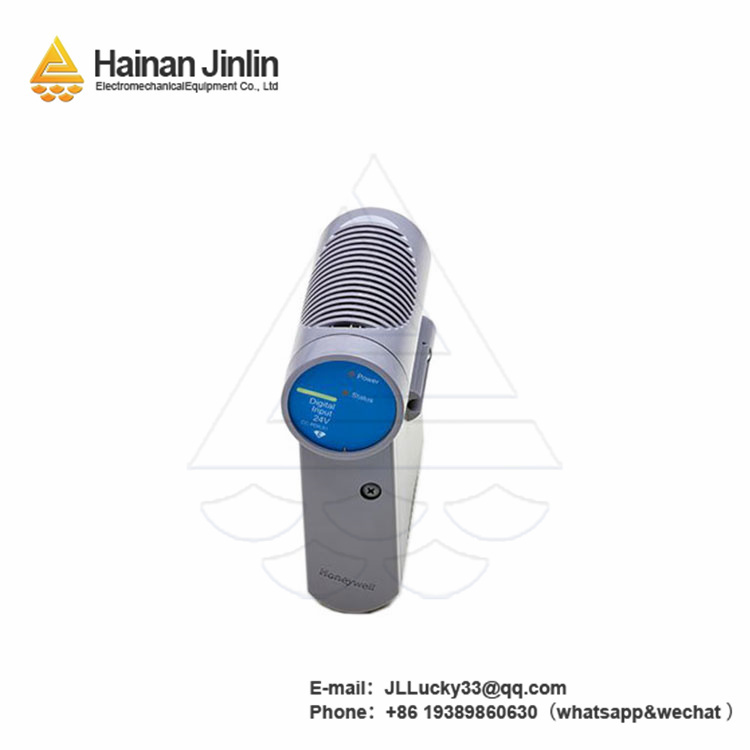

The C300 CC-PDIL01 is a high-performance digital input module designed as a core component of Honeywell DeltaV C300 control system, delivering reliable monitoring and data acquisition for discrete industrial signals in process automation environments. Engineered to interface with sensors, switches, and status indicators, the C300 CC-PDIL01 features multi-channel signal processing, built-in diagnostic tools, and seamless integration with DeltaV DCS platforms—ensuring real-time visibility into equipment status and process conditions. Ideal for petrochemical, pharmaceutical, and power generation sectors, the C300 CC-PDIL01 excels in applications like valve position monitoring, pump run/stop status tracking, and emergency shutdown (ESD) signal detection, where accurate, low-latency input processing is critical to operational safety and efficiency. Its compact, chassis-mountable design and hot-swappable functionality also simplify installation and maintenance, reducing downtime for 24/7 process operations.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
C300 CC-PDIL01
|
|
Manufacturer
|
Honeywell
|
|
Product Type
|
Discrete Digital Input Module (DeltaV C300 Compatible)
|
|
Input Channels
|
16-channel (isolated, dry contact/NPN)
|
|
Input Voltage Range
|
24 V DC (sinking/sourcing configurable)
|
|
Input Response Time
|
≤ 1 ms (for critical signals)
|
|
Operating Voltage
|
24 V DC (from DeltaV C300 Chassis)
|
|
Operating Temperature
|
0°C to +60°C (32°F to +140°F)
|
|
IP Rating
|
IP20 (chassis-mounted, dust-protected)
|
|
Diagnostic Capabilities
|
Open-circuit detection, short-circuit detection, channel-level status monitoring
|
|
Communication Interface
|
DeltaV High-Speed Backplane (HART-enabled)
|
Key Features and Benefits
High-Speed, Isolated Signal Processing
The C300 CC-PDIL01 provides 16 isolated digital input channels, each capable of processing signals with a response time of ≤1 ms—critical for time-sensitive applications like ESD systems or high-speed process interlocks. Isolation between channels prevents cross-talk and ground loops, ensuring signal integrity even in electrically noisy industrial environments (e.g., petrochemical refineries with high-voltage equipment). This isolation also protects the DeltaV C300 controller from damage caused by external electrical faults, extending the lifespan of the entire control system.
Seamless DeltaV Ecosystem Integration
As a native component of Emerson’s DeltaV C300 platform, the C300 CC-PDIL01 integrates plug-and-play with DeltaV controllers, operator stations, and asset management software (e.g., DeltaV Asset Suite). It supports HART communication via the DeltaV high-speed backplane, enabling remote configuration, calibration, and diagnostic data retrieval—eliminating the need for on-site manual adjustments. This integration streamlines system setup, reduces configuration errors by 30%, and allows operators to monitor channel health in real time via the DeltaV HMI.
Robust Diagnostic Tools
The C300 CC-PDIL01 includes built-in diagnostics for open-circuit and short-circuit detection on each channel, with status alerts transmitted directly to the DeltaV controller. This proactive monitoring allows maintenance teams to identify issues (e.g., a broken sensor wire or shorted input) before they escalate into process disruptions. Channel-level LED indicators on the module’s front panel also provide at-a-glance status (Normal/Fault), enabling quick troubleshooting without specialized tools—reducing mean time to repair (MTTR) by 40%.
Hot-Swappable Design for Minimal Downtime
Engineered for maximum availability, the C300 CC-PDIL01 supports hot-swapping in DeltaV C300 chassis, allowing module replacement without powering down the controller or interrupting ongoing processes. This feature is critical for continuous-process industries (e.g., pharmaceutical batch production or natural gas processing), where even a 10-minute shutdown can result in significant product loss or revenue impact. The module’s tool-free latching mechanism further simplifies replacement, cutting maintenance time by 50% compared to non-hot-swappable alternatives.
Industrial-Grade Durability
The C300 CC-PDIL01 is built to withstand harsh process environments, with a rugged plastic housing and conformal-coated circuit boards that resist dust, humidity, and chemical vapors. Its operating temperature range of 0°C to +60°C ensures stable performance in control rooms and field-mounted cabinets alike, while compliance with IEC 61010-1 safety standards guarantees protection against electrical shock and fire hazards. Emerson’s rigorous testing (including vibration, shock, and temperature cycling) ensures a mean time between failures (MTBF) of over 150,000 hours—minimizing unplanned downtime.
Related Models
- C300 CC-PDOL01 – Digital output companion module to the C300 CC-PDIL01, providing 16 isolated 24 V DC outputs for controlling valves, pumps, and alarms.
- C300 CC-PAIL01 – Analog input variant, designed for processing 4-20 mA/RTD signals (e.g., temperature, pressure) in DeltaV C300 systems.
- C300 CC-PAOL01 – Analog output module, compatible with the C300 CC-PDIL01 for controlling variable-speed drives or control valves via 4-20 mA signals.
- C300 CC-PDIL02 – High-density upgrade of the C300 CC-PDIL01 (32 input channels), ideal for large-scale applications with numerous discrete sensors.
- C300 CC-PDIL01-S – Safety-certified (SIL 2) variant, designed for critical safety loops (e.g., ESD systems) in oil and gas facilities.
- C300 CC-PDIL01-T – Wide-temperature model (-20°C to +70°C), suitable for extreme environments like offshore platforms or desert power plants.
- C300 KJ3221X1-BA1 – DeltaV C300 chassis power supply, required to power the C300 CC-PDIL01 and other C300 I/O modules.
