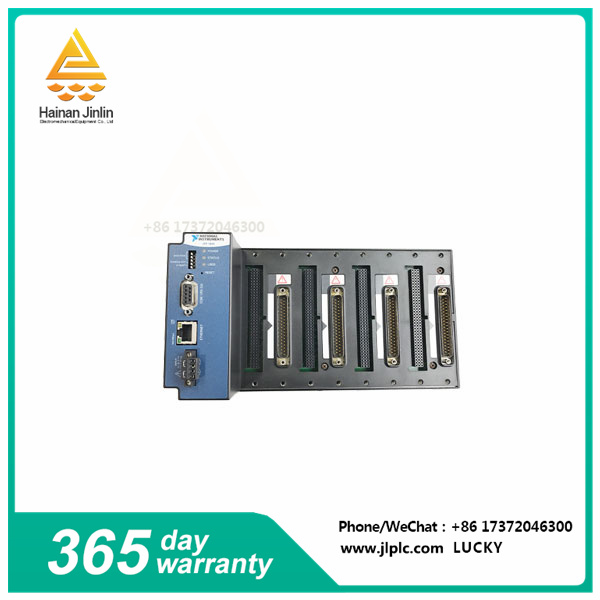

CFP-1804 Ethernet/serial backplane Ethernet/serial backplane

The cFP-1804 is an Ethernet/serial backplane mainly used in industrial automation systems. This backplane has the following features and functions:

Versatility: The cFP-1804 backplane offers a variety of communication interfaces, including Ethernet and serial interfaces, which allows it to meet different communication needs. Whether you need a high-speed Ethernet connection or traditional serial communication, the cFP-1804 provides a stable and reliable communication channel.
High-speed transmission: The cFP-1804 backplane supports high-speed Ethernet connectivity, enabling fast data transmission and exchange. This is important for applications that require real-time monitoring and control to ensure the timeliness and accuracy of data.
Flexible expansion: The cFP-1804 backplane has a modular design and can be easily expanded and upgraded. Users can choose suitable modules for expansion according to specific application requirements, so as to build a system that meets their needs.
Interface and connectivity: The cFP-1804 backplane connects Compact FieldPoint I/O modules to a high-speed Ethernet or RS-232 serial port via a 9-pin D-SUB male-to-female direct cable. To connect I/O modules to input signals or external loads, users need to install cFP-CB-x connector blocks or other connection accessories for each I/O model on the backplane.
Network interface: The cFP-1804 backplane features 10BaseT and 100BaseTX Ethernet network interfaces and is compatible with the IEEE802.3 standard.
