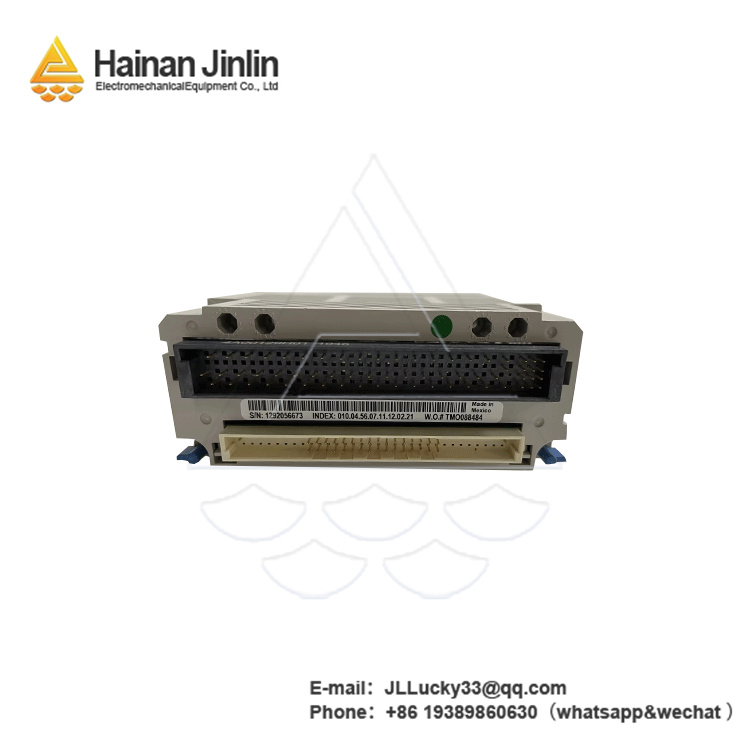

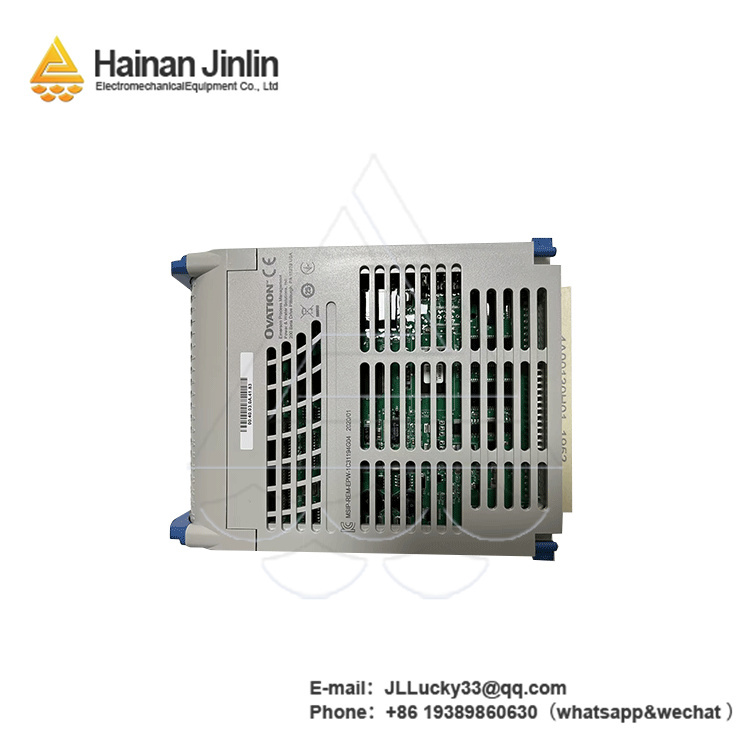

Product Overview
The 1C31194G04 is a high-performance control module designed to play a pivotal role in industrial automation systems, ensuring seamless operation and precise control of complex processes. As a key component in critical control architectures, this module facilitates efficient data processing and communication between various system elements, making it indispensable in sectors such as power generation, chemical processing, and manufacturing. The 1C31194G04 stands out for its robust build quality, high processing speed, and exceptional compatibility with a wide range of industrial protocols, enabling it to integrate effortlessly into existing systems. With its compact design, the 1C31194G04 optimizes space within control cabinets, while its advanced diagnostic capabilities minimize downtime by enabling quick identification of potential issues. Whether deployed in new installations or as a replacement in legacy systems, the 1C31194G04 delivers the reliability and performance required to maintain consistent industrial operations.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
1C31194G04
|
|
Product Type
|
Control Module
|
|
Processor
|
32-bit RISC, 200 MHz
|
|
Memory
|
128 MB RAM, 256 MB Flash
|
|
Communication Protocols
|
Modbus, Ethernet/IP, Profibus
|
|
Operating Temperature Range
|
0°C to 60°C
|
|
Power Requirements
|
24 VDC ±10%
|
|
I/O Interface
|
8 digital inputs, 8 digital outputs
|
|
Mounting
|
DIN rail (35mm)
|
|
Certifications
|
CE, UL, ATEX
|
Key Features and Benefits
The
1C31194G04 is engineered to deliver superior performance in industrial control applications, starting with its powerful processing capabilities. Equipped with a 32-bit RISC processor running at 200 MHz, the module handles complex control algorithms and real-time data processing with ease, ensuring rapid response to changing process conditions. This high processing speed translates to precise control, reducing process variability and improving product quality in manufacturing environments.
A defining feature of the 1C31194G04 is its extensive communication capabilities. Supporting widely used protocols such as Modbus, Ethernet/IP, and Profibus, the module seamlessly connects with other system components, including PLCs, HMIs, and sensors. This interoperability simplifies system integration, whether upgrading an existing setup or building a new control network, and enables efficient data exchange for monitoring and control purposes.
Reliability is a core strength of the 1C31194G04. Its rugged construction ensures stable operation in harsh industrial environments, withstanding temperature fluctuations (0°C to 60°C), vibration, and electrical noise. The module’s robust design, combined with high-quality components, minimizes the risk of unplanned downtime, a critical factor in maintaining productivity in continuous process industries.
Advanced diagnostics are another key advantage of the 1C31194G04. The module continuously monitors its own status and connected devices, providing real-time alerts for faults such as communication errors, power issues, or I/O malfunctions. This proactive monitoring allows maintenance teams to address problems before they escalate, reducing troubleshooting time and minimizing operational disruptions.
Installation and configuration of the
1C31194G04 are streamlined for user convenience. Its DIN rail mounting design enables quick and secure installation, while intuitive software tools simplify setup and parameter configuration. The module’s compact size also allows for flexible placement within control cabinets, optimizing space utilization in crowded industrial settings.
Related Models
- 1C31194G05 – Enhanced version of the 1C31194G04 with expanded memory (256 MB RAM, 512 MB Flash) for handling larger datasets in complex applications.
- 1C31193G04 – Previous generation control module with similar functionality to the 1C31194G04 but with a lower processing speed, suitable for less demanding control tasks.
- 1C31194G06 – Redundant control module designed to work in pairs with the 1C31194G04 to ensure system continuity in mission-critical applications.
- 1C31195G04 – I/O expansion module that complements the 1C31194G04, adding 16 digital inputs and 16 digital outputs for larger-scale control systems.
- 1C31194G07 – Isolated variant of the 1C31194G04 with enhanced electrical isolation, providing additional protection in high-noise environments.
- 1C31194G08 – High-temperature model rated for operation up to 70°C, outperforming the 1C31194G04 in extreme thermal conditions.
- 1C31196G04 – Communication gateway module that extends the 1C31194G04’s connectivity to additional protocols, facilitating integration with legacy systems.
We offer comprehensive support for the 1C31194G04 and its related models. Our pre-sales team provides expert advice on product selection, ensuring the 1C31194G04 aligns with your specific control system requirements. Post-purchase, our after-sales service includes technical troubleshooting, configuration assistance, and maintenance guidance. All products come with a one-year warranty, ensuring your investment is protected. If you require a model not listed, please contact us promptly.
