Product Overview

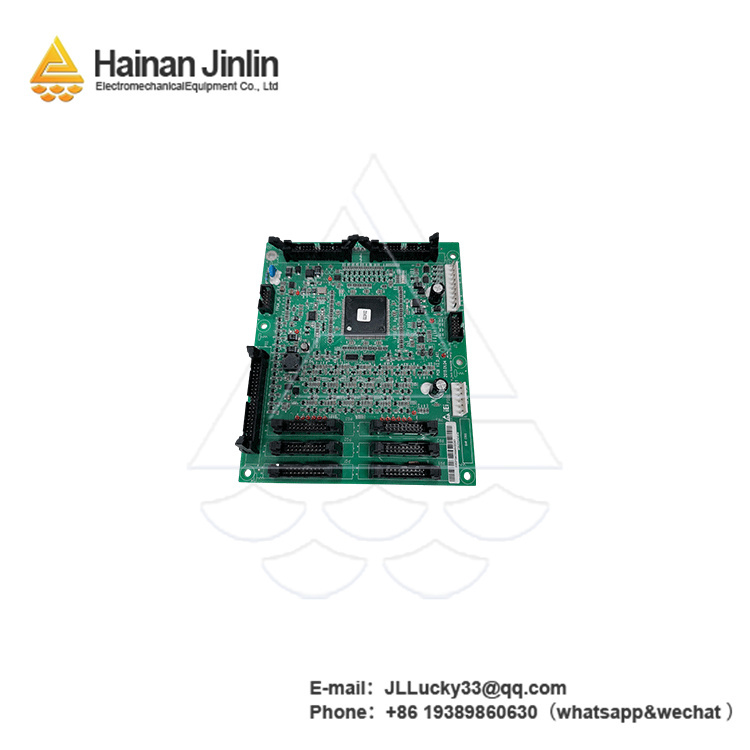

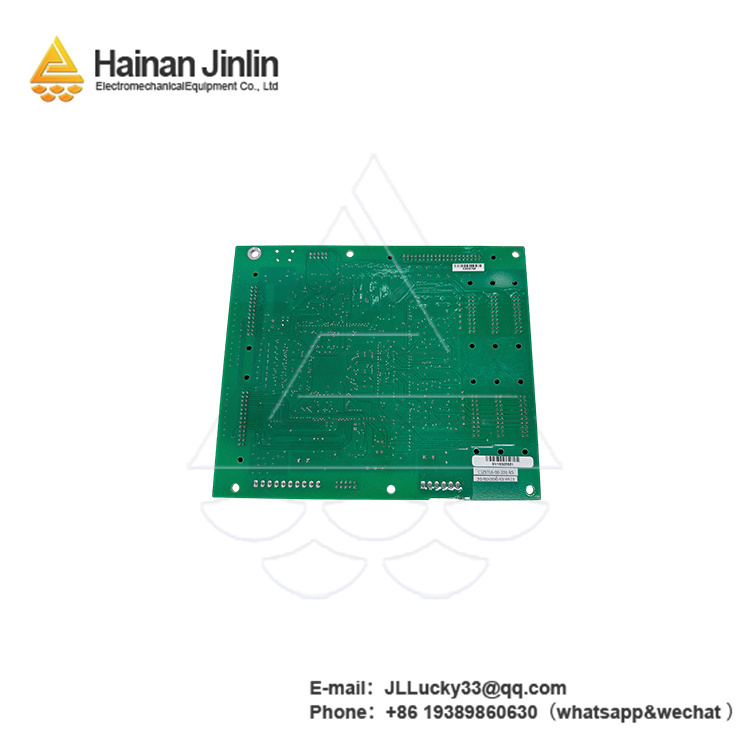

The 03ZSTL6-00-201-RS is a high-performance digital input module engineered for robust industrial automation systems, designed to reliably monitor and process discrete signals from various field devices. As a critical component in industrial control architectures, the 03ZSTL6-00-201-RS excels at converting digital signals (such as those from limit switches, proximity sensors, and pushbuttons) into data that can be processed by PLCs or DCSs. This module is built to deliver exceptional responsiveness and durability, making it ideal for applications where real-time status monitoring is essential—including automotive assembly lines, packaging machinery, and material handling systems. The 03ZSTL6-00-201-RS stands out for its high channel density, fast response time, and robust noise immunity, ensuring consistent performance even in electrically noisy industrial environments. With its seamless integration with standard control systems and user-friendly configuration options, the 03ZSTL6-00-201-RS simplifies system deployment and maintenance, making it a valuable tool for enhancing operational efficiency and ensuring process reliability.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
03ZSTL6-00-201-RS
|
|
Product Type
|
Digital Input Module
|
|
Input Channels
|
16 single-ended channels
|
|
Input Voltage Range
|
24V DC (15V to 30V DC)
|
|
Response Time
|
≤1ms (for signal transition)
|
|
Power Requirements
|
24V DC, 0.3A typical
|
|
Operating Temperature Range
|
-10°C to 65°C (14°F to 149°F)
|
|
Isolation
|
2500V AC channel-to-backplane isolation
|
|
Mounting Type
|
DIN rail mounting (35mm standard)
|
|
Communication Interface
|
RS-485 for module configuration
|
Key Features and Benefits
The
03ZSTL6-00-201-RS is designed to meet the demanding requirements of industrial digital signal monitoring, offering a combination of speed, reliability, and versatility. Its rapid response time of ≤1ms ensures that even the fastest signal transitions are captured, enabling real-time monitoring of critical events such as machine jams or safety interlock triggers—essential for preventing downtime and ensuring operator safety.
Equipped with 16 single-ended channels, the 03ZSTL6-00-201-RS provides high channel density, allowing it to monitor multiple devices within a compact footprint. This reduces the need for additional modules, saving space in control cabinets and lowering overall system costs. The module’s wide input voltage range (15V to 30V DC) ensures compatibility with a broad spectrum of industrial sensors and switches, enhancing its flexibility across different applications.
Durability is a standout feature of the 03ZSTL6-00-201-RS. Its rugged construction, paired with 2500V AC isolation between channels and the backplane, protects against voltage surges, ground loops, and electrical noise—common challenges in industrial environments with heavy machinery or variable power supplies. This robust design ensures long-term reliability, minimizing maintenance needs and extending the module’s operational lifespan.
Installation and configuration are streamlined with the 03ZSTL6-00-201-RS’s DIN rail mounting design and RS-485 communication interface, which allows for easy parameter setup and diagnostics. The module’s compatibility with major PLC and DCS platforms ensures seamless integration into existing systems, reducing downtime during upgrades or expansions. Backed by a one-year warranty and expert technical support, the 03ZSTL6-00-201-RS delivers a cost-effective solution for reliable digital signal monitoring, enhancing system efficiency and process control.
Related Models
- 03ZSTL6-00-200-RS – Base model with 8 channels, suitable for smaller-scale applications
- 03ZSTL6-00-202-RS – Enhanced version with 32 channels and extended temperature range (-20°C to 70°C)
- 03ZSTL6-00-203-RS – High-isolation variant with 5000V AC isolation, ideal for high-voltage industrial settings
- 03ZSTO6-00-201-RS – Digital output counterpart, designed to pair with the 03ZSTL6-00-201-RS for complete I/O control
- 03ZSTL6-00-211-RS – Fast-response model with ≤500µs transition time, perfect for high-speed machinery monitoring
- 03ZSTL6-00-221-RS – Safety-rated version compliant with SIL 3, suitable for safety-critical applications like emergency stops
- 03ZSTL6-00-231-RS – Wireless-enabled variant with Wi-Fi connectivity for remote diagnostics and monitoring
- 03ZSTL6-00-241-RS – Explosion-proof model certified for hazardous areas (ATEX Zone 2), ideal for chemical or oil and gas facilities
As a trusted distributor, we provide expert pre-sales guidance to help you determine if the
03ZSTL6-00-201-RS fits your digital input requirements, along with dedicated after-sales support to ensure smooth integration and operation. All products, including the
03ZSTL6-00-201-RS, come with a one-year warranty. If you need a specific model not listed, please contact us via WhatsApp: [
https://wa.me/+86 19389860630] or email:
jllucky33@qq.com for prompt assistance.
