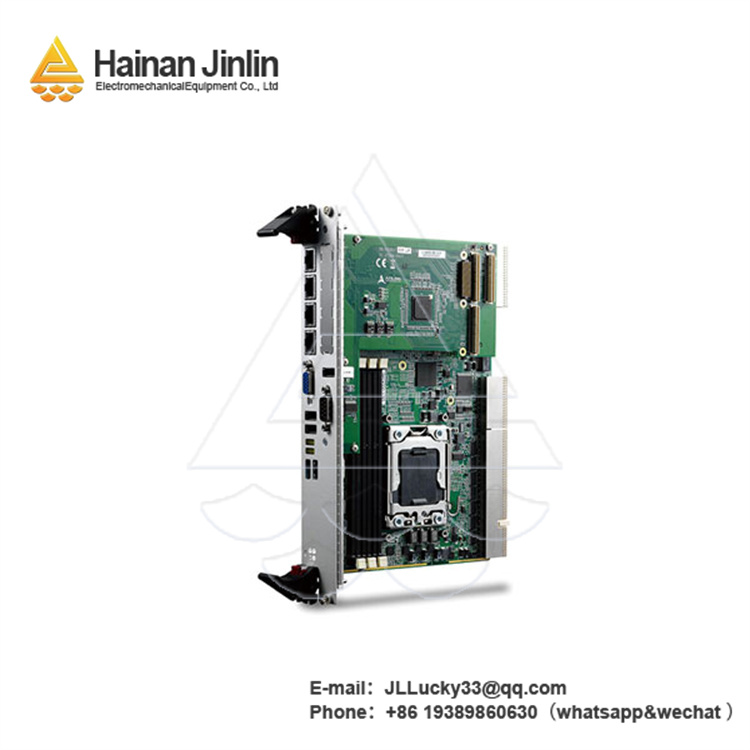

DMV2400A-CPCI Product Description
The DMV2400A-CPCI is a high-performance machine vision processing module, designed to deliver advanced image analysis and inspection capabilities in industrial automation environments. As a key component in machine vision systems, this module integrates powerful processing hardware with specialized software, enabling precise quality control, object recognition, and defect detection in high-speed production lines. The DMV2400A-CPCI is widely used in industries such as electronics manufacturing, automotive assembly, and packaging, where visual inspection accuracy and speed are critical to maintaining product quality and production efficiency. Whether verifying component placements on circuit boards, inspecting weld seams in automotive parts, or checking label alignment on packaging, this module provides reliable and consistent performance, ensuring that even the smallest defects are identified promptly.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
DMV2400A-CPCI
|
|
Product Type
|
Machine Vision Processing Module
|
|
Processor
|
Quad-core industrial-grade CPU with 2.0 GHz clock speed
|
|
Image Inputs
|
4 GigE Vision ports (supports PoE)
|
|
Resolution Support
|
Up to 24 MP per camera input
|
|
Processing Speed
|
1000+ inspections per second (depending on complexity)
|
|
Operating Voltage
|
12V DC ± 5%
|
|
Operating Temperature
|
0°C to 50°C
|
|
Form Factor
|
3U CompactPCI (CPCI)
|
|
Memory
|
8 GB DDR4 RAM, 128 GB SSD
|
Key Features and Benefits
The
DMV2400A-CPCI is powered by a quad-core industrial-grade CPU running at 2.0 GHz, providing ample processing power to handle complex image analysis tasks in real time. This high-performance processor enables the module to process multiple camera feeds simultaneously, supporting up to 4 GigE Vision cameras with PoE (Power over Ethernet) functionality. The ability to handle resolutions up to 24 MP per camera ensures that even fine details are captured and analyzed, making it suitable for applications requiring high precision, such as microelectronics inspection.
One of the standout features of the DMV2400A-CPCI is its exceptional processing speed, capable of performing over 1000 inspections per second depending on task complexity. This rapid throughput is crucial for high-speed production lines, where delays in inspection can disrupt the entire manufacturing process. For example, in automotive assembly, the module can inspect hundreds of components per minute, ensuring that only defect-free parts proceed to the next stage of production.
The module’s 3U CompactPCI form factor allows for easy integration into standard industrial control cabinets, saving space and simplifying system design. Its compatibility with GigE Vision, a widely adopted industrial camera interface standard, ensures seamless connectivity with a wide range of cameras from various manufacturers, providing flexibility in system configuration. Additionally, the DMV2400A-CPCI comes with 8 GB DDR4 RAM and a 128 GB SSD, offering sufficient memory for storing inspection templates, image data, and processing logs, facilitating post-inspection analysis and traceability.
Durability and reliability are key attributes of the DMV2400A-CPCI. Operating within a temperature range of 0°C to 50°C, it can withstand the moderate temperature variations typical of factory environments. The module’s rugged design also ensures resistance to vibration and electromagnetic interference, minimizing downtime due to environmental factors. Its user-friendly software interface, which includes pre-built inspection tools and customizable algorithms, allows technicians to quickly set up and modify inspection parameters, reducing setup time and enabling rapid adaptation to new production requirements.
Related Models
- DMV1800A-CPCI – A compact variant with 2 GigE Vision ports and a dual-core processor, suitable for less complex inspection tasks in space-constrained environments.
- DMV3200A-CPCI – An upgraded model with 8 GigE Vision ports and an 8-core CPU, designed for large-scale inspection systems requiring high camera counts.
- DMV2400A-PXIe – A variant with a PXI Express form factor, offering higher data transfer rates for applications demanding ultra-fast image processing.
- DMV2400B-CPCI – A model with enhanced AI capabilities, featuring machine learning algorithms for advanced defect classification and pattern recognition.
- DMV2400A-CPCI-EX – An extended-temperature version (-20°C to 60°C), designed for harsh industrial environments such as foundries or outdoor installations.
We back the
DMV2400A-CPCI with a one-year warranty, ensuring confidence in its performance and reliability. Our pre-sales team provides expert guidance on system integration, camera selection, and software configuration to ensure optimal setup for your specific inspection needs. Our after-sales service includes technical support, software updates, and troubleshooting assistance, ensuring the module operates at peak efficiency throughout its lifecycle. If you require a model tailored to unique inspection requirements, contact us immediately—we are committed to delivering machine vision solutions that meet the highest standards of accuracy and performance across all industrial sectors.
