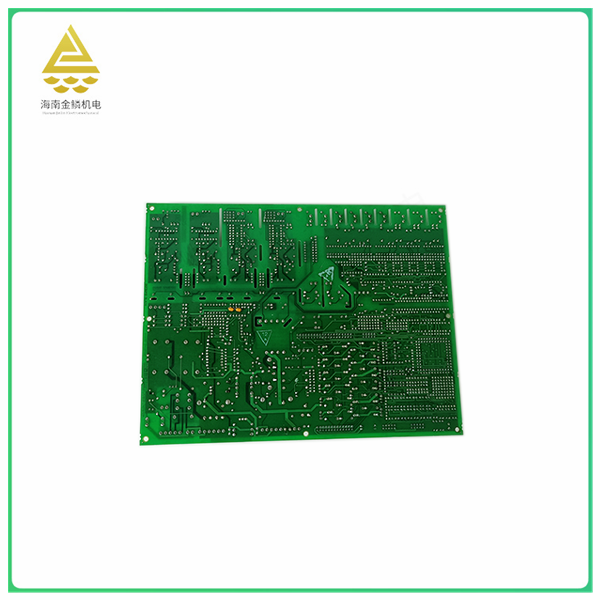

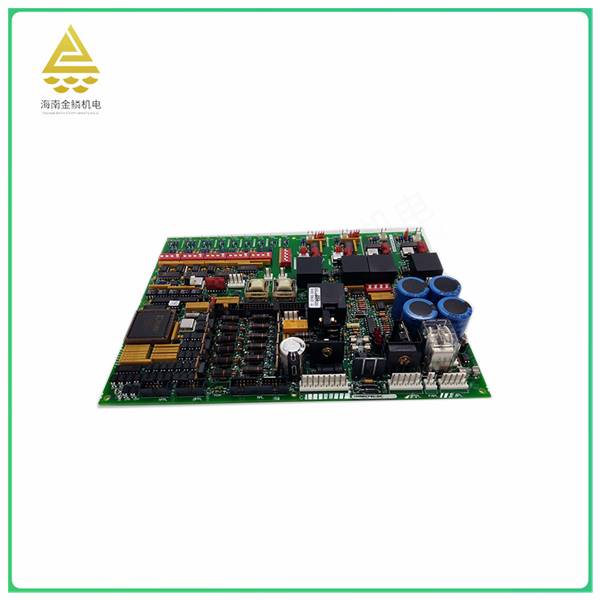

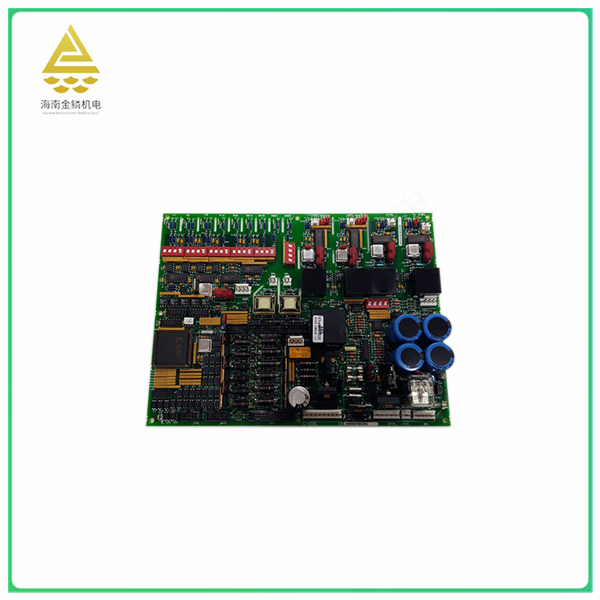

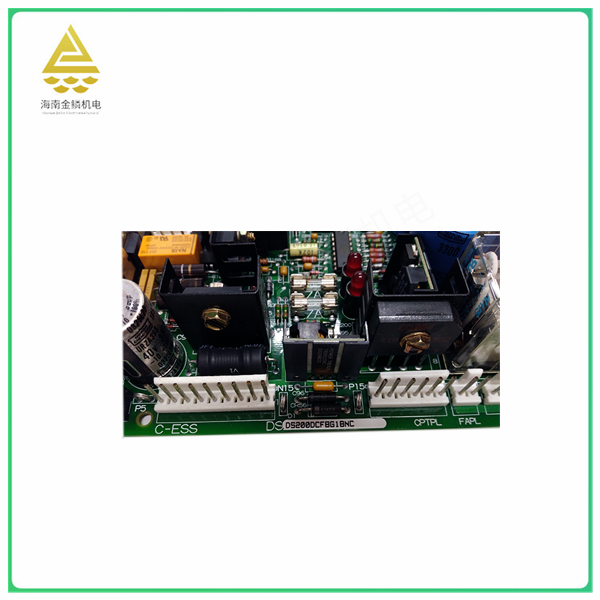

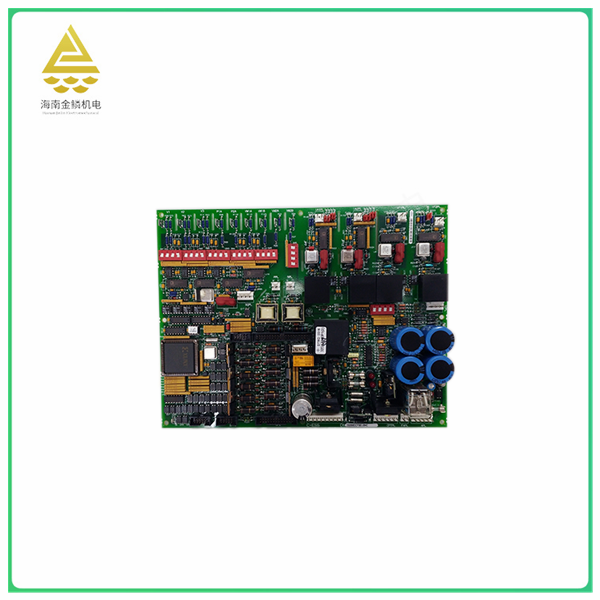

The DS200DCFBG1BNC is a power board manufactured by General Electric (GE) for the Mark V Series replacement and optional boards. It is part of the Speedtronic Mark V control system and powers the system control level power supply as well as the case fan. The card is compatible with many GE branded exciters and drivers and can be installed in a variety of systems. For example, drives in the FC2000, AC2000, DC2000, ME2000, and CB2000 series can use this motherboard.
The functions of DS200DCFBG1BNC include:
Control level power supply: supply power to the system control board and circuit board to ensure the stable operation of the system.
Motor magnetic field power supply circuit and motor magnetic field SCR gate pulse generator drive circuit: provides drive for the motor's magnetic field power supply and SCR gate pulse generator to control the operation of the motor.
Monitor several AC lines and DC motor signals: Monitor and collect signals from AC lines and DC motors to ensure the normal operation of the system.
DS200DCFBG1BNC's application fields mainly include:
Industrial automation: Used in various industrial automation systems, such as factory automation, process automation, etc., to provide stable and reliable power supply and drive for control systems.
Power control: used in power systems and equipment, such as power stations, power plants, etc., to provide stable power supply and monitoring for power equipment and systems.
Traffic signal control: used in traffic signal control system to provide stable power supply and monitoring for traffic signal equipment.
Telecommunication equipment: used in telecommunication base stations and communication equipment to provide stable power supply and monitoring for communication equipment.
In general, DS200DCFBG1BNC has rich functions and wide application fields, and is an important power board product for General Electric.
