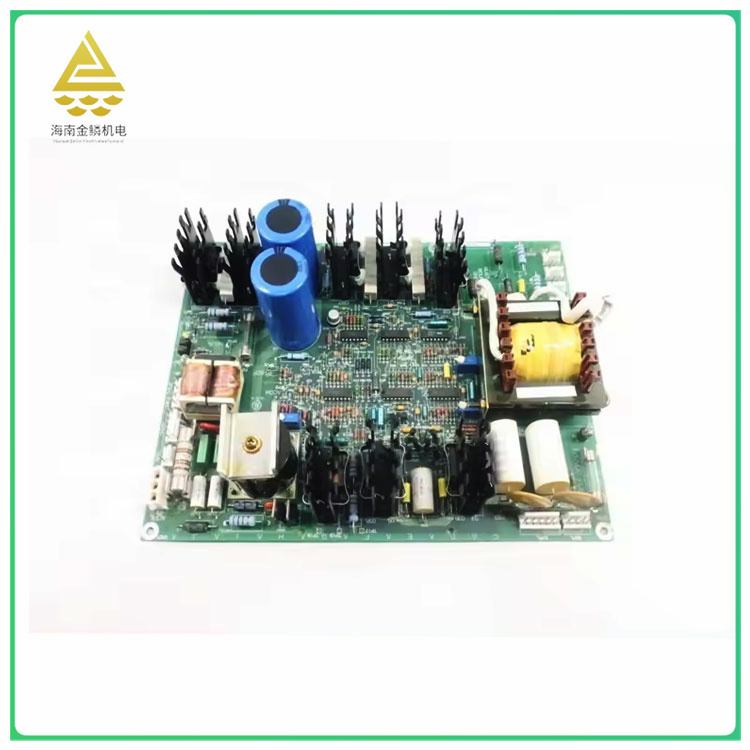

The DS200GDPAG1AKF, or more commonly DS200GDPAG1A, is a high frequency power supply board developed specifically for the General Electric Mark V board family. The following is a detailed explanation of its functions and application areas:
Features:
Power function: This board can input AC and DC power in the power range of 600 to 700W.
Integrated features: Onboard includes a 120 VDC power supply, a 50 VAC output transformer and a control power supply, in addition to onboard control signal level circuits and protection circuits.
Input function: All inputs are isolated to ensure no outages or voltage spikes.
Diagnostic function: There are four leds and two neon indicators on the board to provide users with board status diagnosis.
Conversion function: If the input is DC power, its rated voltage can be between 105 and 140 VDC. The AC power supplied to the board can be measured between 80 and 132 VAC.
Application field:
Industrial Automation: The DS200GDPAG1A can be installed and applied to a wide range of GE manufactured drives and exciters to provide power and control functions for a wide range of industrial equipment.
Energy Management: In the energy sector, this power board may be used to provide a stable and efficient power supply for a variety of energy-related equipment.
Other GE applications: Since it was developed for the GE Mark V board family, it may be suitable for any GE application that requires a high-frequency power board.
The DS200GDPAG1AKF (or DS200GDPAG1A), as a high frequency power supply board specifically designed for the General Electric Mark V Board family, offers the following advantages and possible disadvantages:
Advantages:
Highly integrated: The DS200GDPAG1A integrates a variety of functions, including power conversion, control signal level circuits and protection circuits, which reduces the number of external components and simplifies the system design and installation process.
Flexibility: The power board can handle a variety of input power types, including AC and DC, and can operate within a certain voltage range, which provides great flexibility and adaptability.
High efficiency: The DS200GDPAG1A is designed as an efficient power supply board capable of providing stable output voltage and current to meet the needs of various industrial applications.
Easy diagnosis: leds and neon indicators on the board provide an intuitive status indication for easy fault diagnosis and monitoring.
Good compatibility: Because it was developed for the GE Mark V board family, it has good compatibility with other GE products and systems.
Possible disadvantages:
Specific applications: The DS200GDPAG1A is designed specifically for GE's Mark V board family, which means it may not work with other non-GE systems or platforms, limiting its range of applications.
Rely on Manufacturer support: Since this is a specific manufacturer's product, you may need to rely on the manufacturer's technical support and documentation to resolve issues or make configuration changes.
Cost: As a highly integrated and application-specific power board, the DS200GDPAG1A can be expensive, especially for applications that require only a simple power solution.
Upgrade and maintenance: As technology continues to evolve, this power board may need to be upgraded or maintained to maintain its performance and compatibility. This may involve replacing the entire board or making complex software updates.
