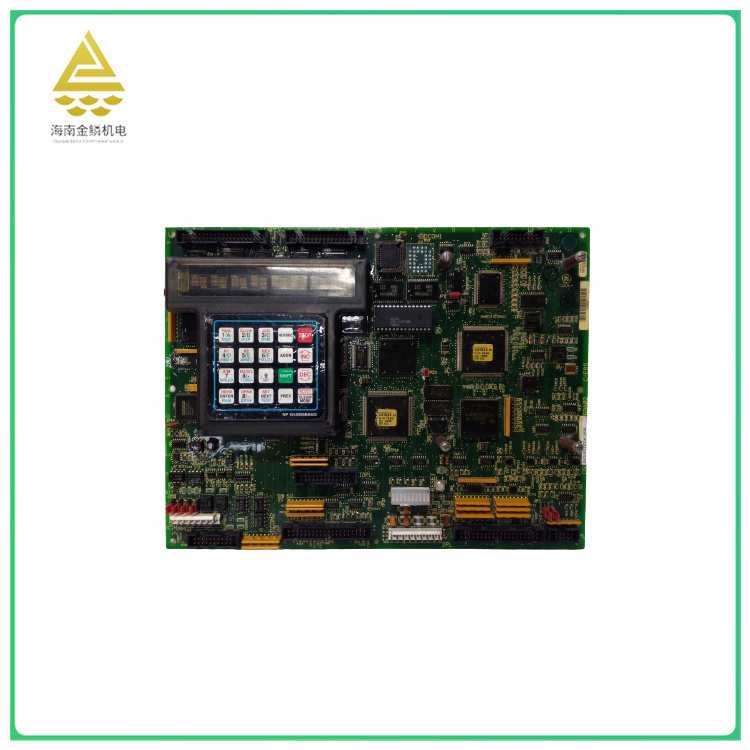

The DS200LDCCH1AGA is a General Electric drive control board module. This drive control board is usually used to control the motor and drive system.
The DS200LDCCH1AGA driver board is primarily used for driver control and local area network (LAN) communication.
Specifically, the DS200LDCCH1AGA card was developed by General Electric to be used as a drive control and local area network (LAN) communication board. When installed in a drive, the board provides the drive with a range of drive and I/O control functions.
In addition, the DS200LDCCH1AGA can also be used to control the motor and drive system to ensure their proper operation and performance.
DS200LDCCH1AGA drive control board is used in a variety of application scenarios.
First, it is widely used in electric power plants, such as thermal power generation, hydroelectric power generation and nuclear power generation. In this application scenario, the DS200LDCCH1AGA can be used to control the drive signals of generators, steam turbines and other power generation equipment, ensuring the stability and reliability of power generation.
Secondly, it is also applicable to power transmission systems and power distribution systems. In high-voltage transmission lines and substations, the drive control board can be used to control and monitor the drive signal of the transmission equipment to ensure the stability and safety of the power during transmission. In the power distribution network, it can also be used to control and monitor the drive signals of transformers, switchgear and distribution lines to ensure the stability and reliability of power distribution.
In addition, the DS200LDCCH1AGA also has communication capabilities and can accommodate up to four microprocessors on board. A Local Area Network Control Processor (LCP) can accept five different bus types to be transferred to the hard disk. A Drive Control Processor (DCP) can also be used to handle analog and digital I/O conversions. DCP is also able to control and convert peripheral I/O devices such as encoders and timers. The motor control processor (MCP) is used to process the digital I/O sent to the drive. If computing requires additional processing power that a DCP cannot provide, a common-motor processor (CMP) will provide the extra power needed to accomplish these functions. The board is equipped with an alphanumeric keyboard for system programming and diagnostics.
