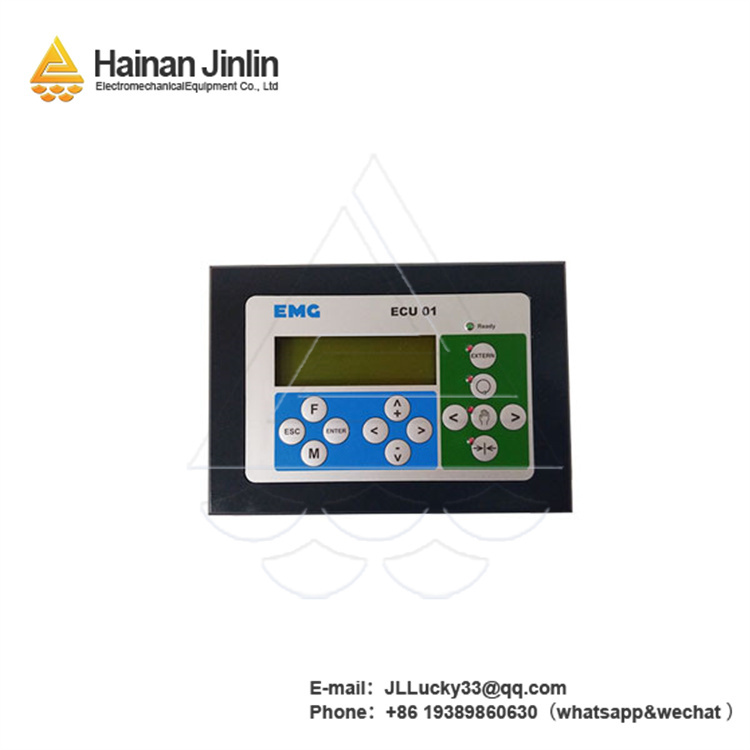

ECU01 Product Description
Product Overview
The ECU01 is an advanced Electronic Control Unit, designed to serve as the core of industrial control systems, managing and regulating various electrical and mechanical processes in industrial environments. This compact yet powerful unit integrates sophisticated hardware and software to monitor inputs from sensors, execute control algorithms, and generate outputs to actuators, ensuring precise and efficient operation of industrial equipment.
In industrial settings such as manufacturing lines, automated production facilities, and process control systems, the ECU01 plays a pivotal role. It can handle a wide range of tasks, from simple on/off control of machinery to complex proportional-integral-derivative (PID) regulation of process variables like temperature, pressure, and flow. By centralizing control functions, the ECU01 simplifies system architecture, enhances operational accuracy, and reduces the risk of human error, making it an essential component for modern industrial automation.
Hainan Jinlin Mechanical & Electrical, a trusted distributor of industrial control products, offers the ECU01 Electronic Control Unit. We adhere to the "Customer First, Forge Ahead" business philosophy, providing comprehensive support for system integration, programming, and maintenance to ensure optimal performance.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
ECU01
|
|
Product Type
|
Electronic Control Unit
|
|
Processor
|
32-bit ARM Cortex-M4, 100 MHz clock speed]
|
|
Memory
|
256 KB RAM, 1 MB Flash]
|
|
Input Channels
|
8 analog inputs (4-20 mA), 16 digital inputs]
|
|
Output Channels
|
[e.g., 4 analog outputs (4-20 mA), 8 relay outputs (5 A @ 250 VAC)]
|
|
Communication Interfaces
|
[e.g., RS485 (Modbus RTU), Ethernet (Modbus TCP/IP), USB]
|
|
Operating Voltage
|
24 VDC ± 10%
|
|
Operating Temperature
|
-20°C to 70°C
|
|
Humidity Range
|
5% - 95% non-condensing
|
|
Enclosure Rating
|
IP65 (dust-tight and water-resistant)
|
|
Programming Language
|
[e.g., Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD)]
|
|
Certifications
|
CE, UL, RoHS
|
Key Features and Benefits
Powerful Processing Capability: Equipped with a high-performance 32-bit processor, the
ECU01 can execute complex control algorithms at high speeds, ensuring rapid response to changes in input signals. This is critical in applications such as high-speed packaging lines, where even a slight delay in control actions can lead to product defects or production bottlenecks. The processor’s efficiency also allows for simultaneous handling of multiple control tasks without compromising performance.
Flexible I/O Configuration: With a versatile range of analog and digital input/output channels, the ECU01 can interface with a wide variety of industrial sensors and actuators. For example, it can connect to temperature sensors, pressure transducers, and flow meters via analog inputs, while digital inputs can monitor limit switches and proximity sensors. The analog and relay outputs enable control of valves, motors, and heaters, making the unit adaptable to diverse industrial processes.
Robust Communication: The ECU01 features multiple communication interfaces, including RS485 and Ethernet, enabling seamless integration with supervisory control systems, human-machine interfaces (HMIs), and other ECUs. This allows for centralized monitoring and data logging, as well as remote configuration and troubleshooting. In a factory-wide automation system, the ECU01 can communicate with a central SCADA system to provide real-time process data and receive control commands, enhancing overall system visibility and manageability.
Durable Design for Industrial Environments: Built to withstand harsh industrial conditions, the ECU01 has an IP65-rated enclosure, protecting it from dust, water spray, and vibration. Its wide operating temperature range (-20°C to 70°C) ensures reliable performance in environments such as foundries, where temperatures fluctuate significantly, or outdoor industrial facilities exposed to varying weather conditions. This durability minimizes downtime and reduces maintenance costs.
User-Friendly Programming: Supporting industry-standard programming languages like Structured Text and Ladder Diagram, the ECU01 is easy to program and customize for specific applications. Engineers and technicians familiar with standard industrial programming practices can quickly develop and debug control logic, reducing setup time. Additionally, the unit may include pre-built function blocks for common control tasks (e.g., PID loops), simplifying the implementation of complex control strategies.
Related Models
- ECU02: An upgraded version of the ECU01 with enhanced processing power and expanded I/O capabilities. It may feature a faster processor, more memory, and additional communication interfaces (e.g., Profibus DP), making it suitable for larger-scale industrial systems with higher complexity, such as multi-zone temperature control in chemical reactors.
- ECU01-Lite: A compact variant of the ECU01 with reduced I/O channels and simplified communication options. It is ideal for small-scale applications where space and cost are critical factors, such as standalone equipment control in laboratory settings or small manufacturing cells.
- ECU01-EX: An explosion-proof version of the ECU01, certified for use in hazardous areas (e.g., ATEX Zone 2). It features a reinforced enclosure and intrinsic safety barriers, making it suitable for applications in oil refineries, gas processing plants, and other environments where flammable substances are present.
- ECU03: A specialized model designed for mobile industrial equipment, such as agricultural machinery or construction vehicles. It includes features like ruggedized connectors, extended temperature range (-40°C to 85°C), and compatibility with vehicle-specific communication protocols (e.g., CAN bus), distinguishing it from the standard ECU01 which is focused on stationary industrial systems.
As a certified partner of industry leaders, we supply components for diverse industrial sectors. The ECU01 is widely used in manufacturing (controlling assembly line robots and conveyor systems), food and beverage processing (regulating mixing and packaging equipment), energy production (managing auxiliary systems in power plants), and water treatment (controlling pumps and filtration processes).
We offer a one-year warranty for the
ECU01 Electronic Control Unit. Our pre-sales team provides guidance on system design and programming, while after-sales support includes troubleshooting, firmware updates, and technical training. If you need detailed specifications or have specific application requirements, please contact us immediately—we are committed to providing tailored solutions for your industrial control needs.
