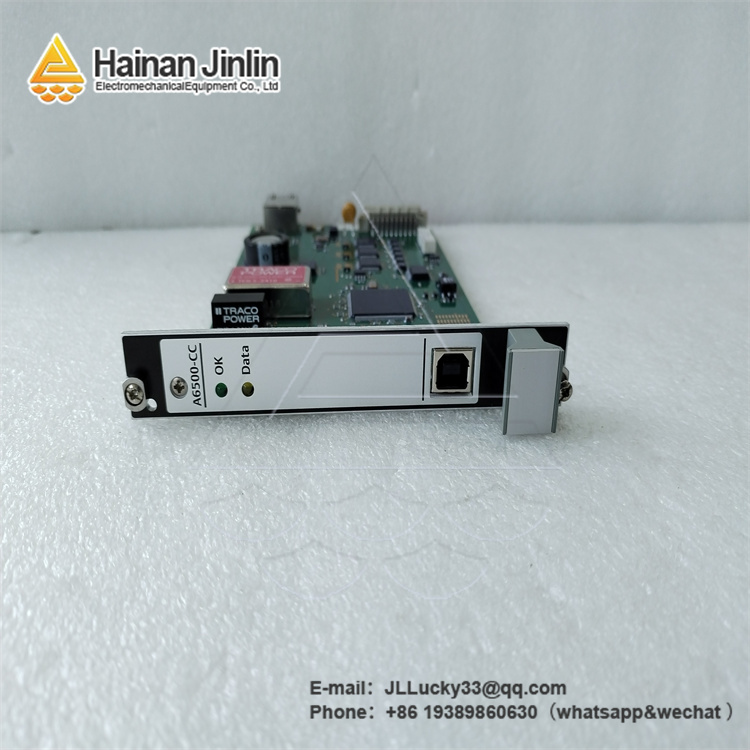

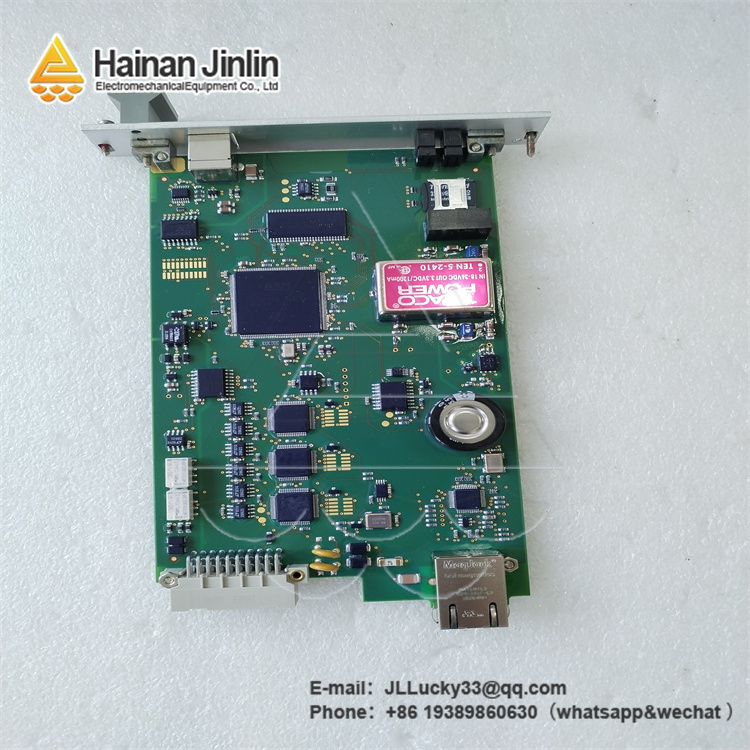

Product Overview
The EMERSON A6500-CC is a high-reliability control module engineered for seamless integration with Emerson’s DeltaV DCS (Distributed Control System)—a cornerstone platform for process automation in industries requiring uncompromised operational control. Designed to handle core regulatory and sequence control tasks, the EMERSON A6500-CC delivers consistent performance in demanding environments, ensuring precise management of process variables like flow, pressure, and temperature. Its modular architecture supports easy scalability, allowing facilities to expand control capabilities without overhauling existing systems, while its advanced firmware minimizes latency for real-time decision-making. As a key component of Emerson’s automation portfolio, the EMERSON A6500-CC enhances system uptime, simplifies maintenance, and aligns with industry standards for safety and efficiency. Whether deployed in petrochemical refineries, pharmaceutical plants, or water treatment facilities, the EMERSON A6500-CC stands out for its durability, compatibility, and ability to optimize process control workflows.
We are a distributor of industrial control products, specializing in a wide range of brands including Emerson, Honeywell, and ABB. With extensive industry knowledge and market insights, we adhere to the "Customer First, Forge Ahead" business philosophy, providing high-quality pre-sales consultation and after-sales support. We’re here for you, dedicated to meeting your automation needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
EMERSON A6500-CC
|
|
Manufacturer
|
Emerson
|
|
Product Type
|
DCS Control Module (Regulatory & Sequence Control)
|
|
Processing Speed
|
1.2 GHz 32-bit microprocessor
|
|
Operating Temperature Range
|
-20°C to +60°C (-4°F to +140°F)
|
|
Power Supply
|
24 V DC (18-32 V DC range), 10 W (max)
|
|
Communication Protocol
|
Emerson DeltaV Ethernet, Modbus TCP/IP
|
|
I/O Expansion Support
|
Up to 16 external I/O modules via backplane
|
|
Mounting Type
|
19-inch Rack Mount (2U height)
|
|
IP Rating
|
IP20 (Front Panel); IP30 (Chassis)
|
Key Features and Benefits
The EMERSON A6500-CC is built to address the evolving demands of modern process automation, offering technical advantages that elevate system performance and reliability:
- High-Speed Processing: Equipped with a 1.2 GHz 32-bit microprocessor, the EMERSON A6500-CC executes control algorithms in milliseconds, ensuring real-time response to process changes (e.g., adjusting valve positions to maintain pressure setpoints). This speed reduces process variability, improves product consistency, and supports tight control loops critical in pharmaceutical or food and beverage manufacturing.
- Seamless DeltaV Integration: Optimized for Emerson’s DeltaV DCS, the EMERSON A6500-CC leverages the platform’s intuitive configuration tools, eliminating the need for custom programming. It also supports backward compatibility with legacy DeltaV components, making it ideal for system upgrades without replacing existing infrastructure—saving time and capital costs.
- Scalable I/O Expansion: The EMERSON A6500-CC can connect to up to 16 external I/O modules via its backplane, allowing facilities to tailor input/output capacity to their needs (e.g., adding analog input modules for temperature sensors or digital output modules for actuator control). This scalability ensures the module grows with changing process requirements.
- Robust Environmental Tolerance: Designed to operate in temperatures ranging from -20°C to +60°C and resist electrical noise, the EMERSON A6500-CC maintains performance in harsh industrial settings (e.g., petrochemical refineries with high humidity or power plants with voltage fluctuations). Its rugged chassis also protects internal components from dust and vibration, extending service life.
- Built-In Safety & Diagnostics: The EMERSON A6500-CC includes self-monitoring features that detect hardware faults (e.g., power supply anomalies or communication failures) and send alerts to the DeltaV operator interface. It also supports safety interlock logic, aligning with IEC 61508 standards for functional safety—critical for industries where process failures pose safety risks.
As a certified partner of Emerson, we ensure the EMERSON A6500-CC meets strict quality standards, and all units come with a one-year warranty for added peace of mind. Our team provides pre-sales technical consultation to confirm compatibility with your DeltaV system and post-sales support for installation, calibration, and troubleshooting.
Related Models
- EMERSON A6500-CN: Communication module—companion to the EMERSON A6500-CC, enabling secure data transfer between the control module and DeltaV controllers via Ethernet.
- EMERSON A6500-IO: Analog I/O module—works with the EMERSON A6500-CC to expand input/output capacity for measuring and controlling analog process variables (e.g., 4-20 mA signals from pressure transducers).
- EMERSON A6500-SC: Safety Control module—upgraded variant of the EMERSON A6500-CC certified for SIL 2/3 applications (e.g., emergency shutdown systems in oil refineries).
- EMERSON A6400-CC: Previous generation control module—basic alternative to the EMERSON A6500-CC with lower processing speed (ideal for legacy DeltaV systems not requiring high-performance control).
- EMERSON A6500-DI: Digital Input module—paired with the EMERSON A6500-CC to capture discrete signals (e.g., limit switch status or pump run/stop commands) in mixed-signal control loops.
- EMERSON A6500-DO: Digital Output module—compatible with the EMERSON A6500-CC to send control signals to actuators (e.g., solenoid valves or motor starters) in industrial processes.
- EMERSON A6500-PW: Power Supply module—dedicated to powering the EMERSON A6500-CC and connected I/O modules, ensuring stable voltage delivery in critical applications.
Typical Application Areas
The EMERSON A6500-CC is a vital component in:
- Process Industries: DCS system upgrades and regulatory control in petrochemicals (e.g., controlling reactor temperature), pharmaceuticals (e.g., monitoring batch mixing speeds), and energy (e.g., managing steam turbine pressure).
- Discrete Manufacturing: Sequence control for automotive component production lines (e.g., coordinating robotic assembly steps) and food processing (e.g., regulating conveyor speed and packaging machine cycles).
- Infrastructure: Water and wastewater treatment (e.g., controlling chemical dosing systems to maintain pH levels) and municipal power distribution (e.g., monitoring transformer load and voltage).
Service Commitment
As a certified partner of industry leaders like Emerson, Bentley Nevada, and Honeywell, we prioritize professionalism in every interaction:
- Pre-Sales Support: Our team provides technical assessments to confirm the EMERSON A6500-CC is compatible with your DeltaV system, including firmware version checks and I/O capacity planning.
- After-Sales Service: All products, including the EMERSON A6500-CC, come with a one-year warranty. We offer on-demand troubleshooting, firmware updates, and replacement services to minimize downtime.
- Custom Solutions: If you cannot find the model you need (or require specialized configurations, such as safety-certified setups), contact us immediately for personalized support.
