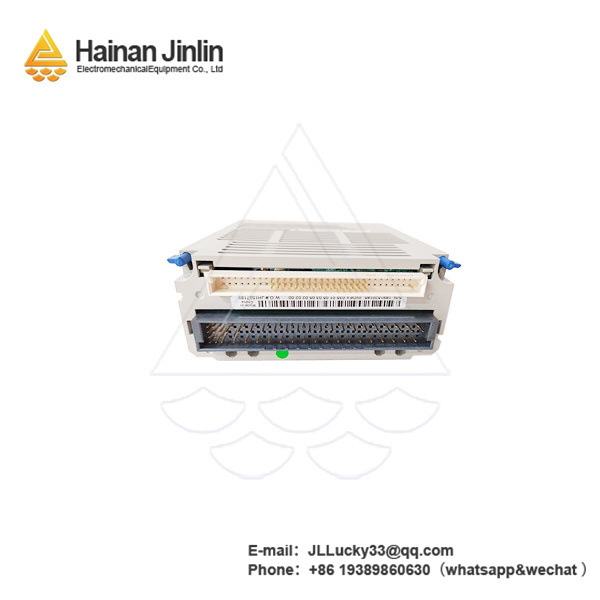

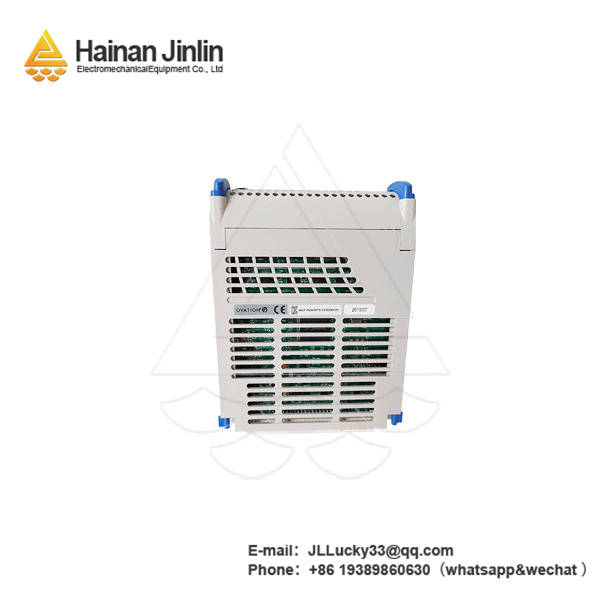

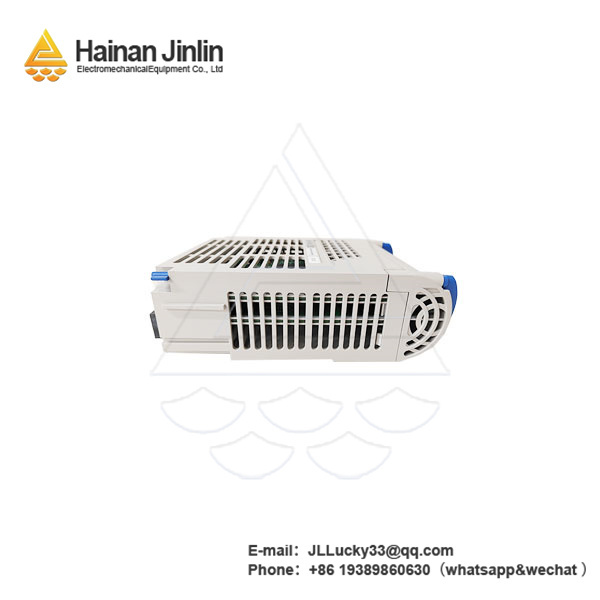

Product Overview
The 5X00499G01 is a critical industrial control module designed to enhance the functionality and reliability of distributed control systems (DCS) in demanding industrial environments. As a key component in automation architectures, the 5X00499G01 excels at processing and relaying control signals, making it ideal for applications where precise system coordination is essential—such as in power generation plants, chemical processing facilities, and large-scale manufacturing operations. This module stands out for its robust build quality, high processing efficiency, and seamless integration with existing control systems, ensuring consistent performance even in high-stress operational conditions. With its advanced diagnostic capabilities and compatibility with industry-standard protocols, the 5X00499G01 simplifies system maintenance while improving overall operational efficiency.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
5X00499G01
|
|
Manufacturer
|
Emerson Ovation
|
|
Product Type
|
Control Module
|
|
Processing Capacity
|
32-bit microprocessor with 16 MB RAM
|
|
Input/Output Signals
|
Supports up to 64 digital I/O points, 16 analog inputs
|
|
Communication Protocols
|
Modbus RTU, Ethernet/IP, Ovation DCS protocol
|
|
Power Requirements
|
24V DC, 1.2A typical
|
|
Operating Temperature Range
|
0°C to 60°C (32°F to 140°F)
|
|
Mounting Type
|
Rack-mounted (compatible with Ovation DCS racks)
|
|
Isolation Rating
|
2500V AC channel-to-ground isolation
|
|
Dimensions
|
150mm x 100mm x 30mm (L x W x H)
|
Key Features and Benefits
The 5X00499G01 is engineered to deliver exceptional performance in industrial control applications, combining processing power, durability, and versatility. Its 32-bit microprocessor with 16 MB RAM ensures fast and efficient signal processing, enabling rapid response to dynamic system changes—critical for maintaining stable operations in time-sensitive processes like power grid regulation or batch chemical production.
A standout advantage of the 5X00499G01 is its extensive I/O capacity, supporting up to 64 digital I/O points and 16 analog inputs. This flexibility allows it to handle diverse control tasks, from monitoring pressure and flow rates via analog signals to triggering alarms or actuating valves through digital outputs. The module’s 2500V AC isolation rating provides robust protection against electrical noise and ground loops, ensuring signal integrity in environments with high electromagnetic interference.
Durability is a core strength of the 5X00499G01. Its rugged construction, combined with an operating temperature range of 0°C to 60°C, allows it to thrive in harsh industrial settings, reducing downtime and maintenance costs. The module’s compatibility with multiple communication protocols—including Modbus RTU and Ethernet/IP—enhances its integration capabilities, enabling seamless communication with both legacy devices and modern smart sensors.
Installation and troubleshooting are streamlined with the
5X00499G01’s rack-mounted design and advanced diagnostic features, which include real-time error logging and remote monitoring capabilities. This allows technicians to quickly identify and resolve issues, minimizing system downtime. Backed by a one-year warranty and expert technical support, the
5X00499G01 offers a reliable, cost-effective solution for enhancing DCS performance, ensuring operational stability across critical industrial processes.
Related Models
- 5X00498G01 – Lower I/O variant with 32 digital I/O points, suitable for smaller-scale control systems
- 5X00500G01 – Enhanced model with 128 digital I/O points and 32 analog inputs, designed for large-scale applications
- 5X00499G02 – Safety-certified version compliant with SIL 2, ideal for safety instrumented systems in critical processes
- 5X00499G11 – Extended temperature variant operating from -20°C to 70°C, built for extreme environment deployments
- 5X00497G01 – Communication-focused model with expanded protocol support (including Profibus DP)
- 5X00501G01 – Redundant configuration module with dual processors, ensuring failover capability in mission-critical systems
- 5X00499G21 – High-speed processing variant with 32 MB RAM, optimized for dynamic control applications
- 5X00502G01 – Compact version with reduced footprint, perfect for space-constrained control cabinets
As a trusted distributor, we provide expert pre-sales guidance to help you determine if the
5X00499G01 meets your control module requirements, along with dedicated after-sales support to ensure seamless integration and operation. All products, including the
5X00499G01, come with a one-year warranty. If you need a specific model not listed, please contact us via WhatsApp: [
