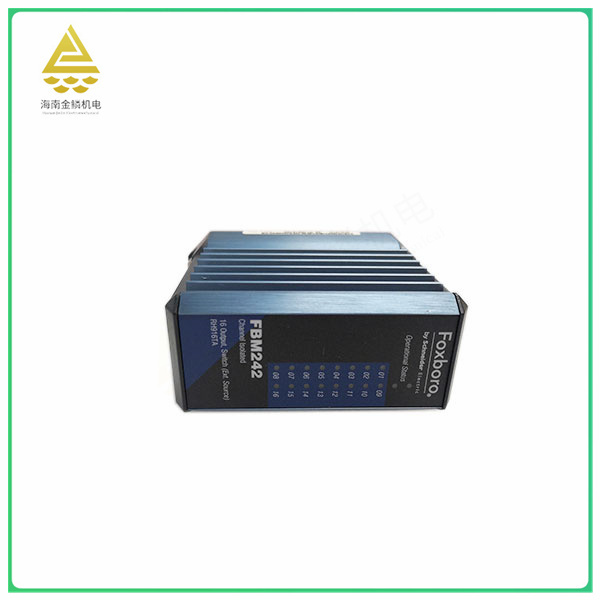

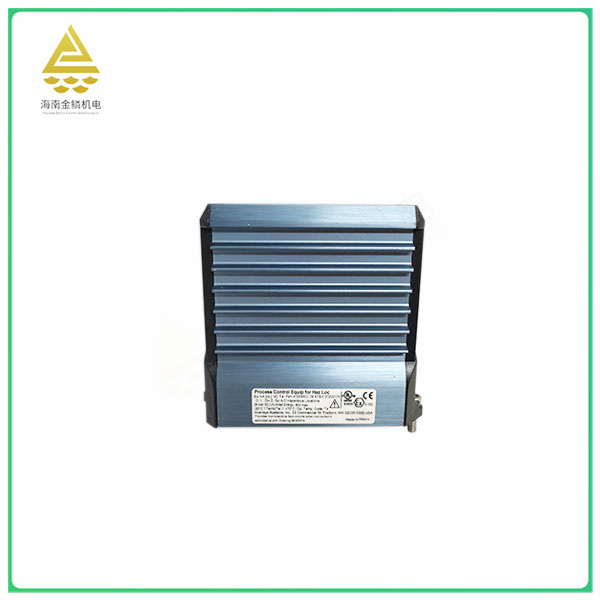

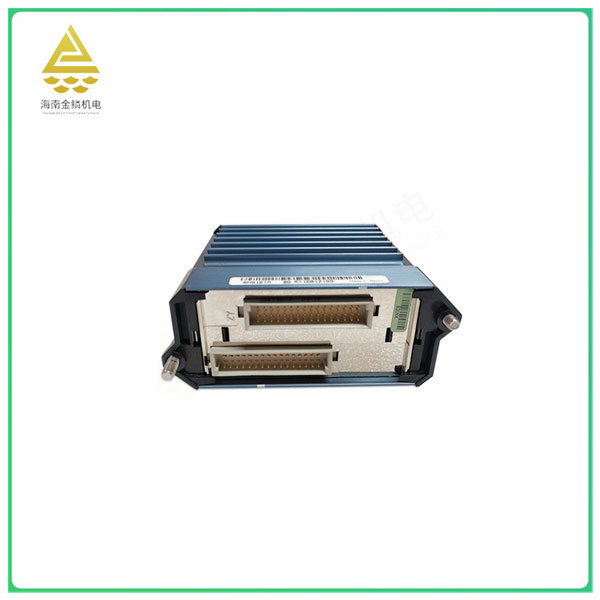

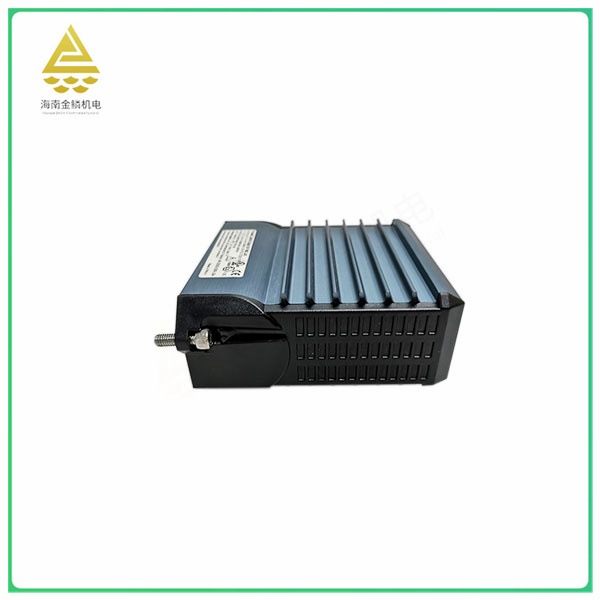

FBM242 RH916TA FOXBORO Discrete Output interface module FOXboro (Schneider Electric) Product Number :FBM242 Product type: External source, discrete output interface module Features :16 discrete outputs, Supports discrete output signals at 15 to 60 V dc, 120 V ac/125 V dc, 240 V ac voltages, each input and output is current isolated, group isolated when used with external excitation, compact, rugged design for enclosures in G3 (harsh) environments, performs discrete I/O or ladder logic programs, The following configurable options are available for input filtering time, fail-safe configuration, failure, safe rollback, and continuous or instantaneous output.
The FBM242-RH916TA is a discrete output interface module that provides the following features and application scenarios:
Discrete output: Supports discrete output signals at voltages from 15 to 60Vdc, 120Vac/125Vdc, 240Vac. Each input and output is current isolated and group isolated when used with an external excitation.
Compact and rugged design: Suitable for enclosures in G3 (harsh) environments.
Execute discrete I/O or ladder logic programs.
In addition, the module has configurable input filtering options for applications such as grinding, turning, grinding, automation and can interpolate up to four axes simultaneously. Its ultra-compact solutions are suitable for small CNC machines, networked multi-transporters and flexible units, providing the scalability and functionality of an open system architecture.
In summary, the FBM242-RH916TA module is a powerful discrete output interface module with a wide range of application scenarios to meet the needs of various industrial automation and control systems.
A discrete input interface module is an electronic component or device used to receive and process discrete signals. Discrete signals are signals that are not continuous in time and usually have only two states, such as the opening and closing of a switch, the pressing and releasing of a button, and so on.
The main role of the FBM242-RH916TA discrete input interface module is to convert the discrete signal into a form that can be understood and processed by a computer or other device. It usually has the following functions:
Signal acquisition: Receiving external discrete signals and converting them into digital signals or logic levels.
Dejitter: The FBM242-RH916TA filters and dejitter the input signal to eliminate signal noise and jitter caused by mechanical switching or poor contact.
Electrical isolation: The input signal is isolated from the rest of the system to prevent interference and protect equipment.
Status detection: The FBM242-RH916TA detects the status of the input signal and passes it to a computer or other device for processing.
FBM242-RH916TA discrete input interface module is widely used in industrial automation, instrumentation, control system and other fields. They can be connected with a variety of discrete input devices, such as switches, buttons, sensors, etc., to achieve control and monitoring of external devices.
The common FBM242-RH916TA discrete input interface module includes a digital input module and a switch input module. These modules typically have standardized interfaces and communication protocols for integration with different devices and systems.
