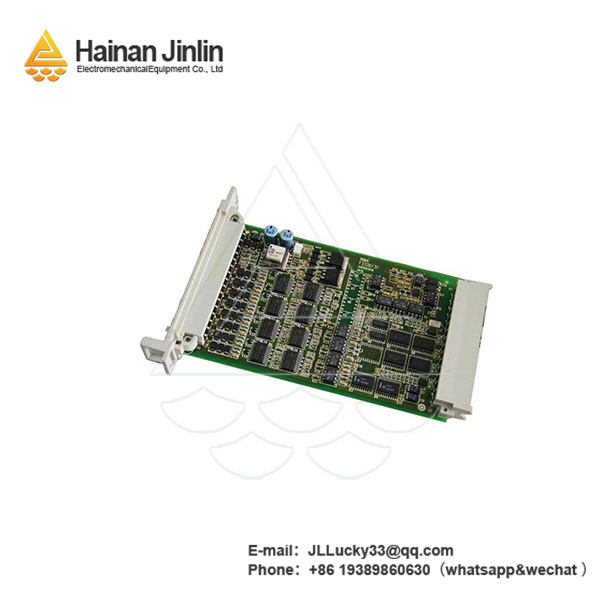

Product Overview
The FC-SDO-0824 is a rugged, high-density digital output (DO) module engineered for industrial automation systems, designed to reliably switch and control external field devices such as solenoid valves, relays, contactors, and indicator lights. As a critical component in discrete control and process automation workflows, this module stands out for its 8-channel configuration, 24V DC operating voltage (optimized for industrial standards), and robust design that withstands harsh environmental conditions. Whether deployed in manufacturing lines, packaging machinery, or infrastructure monitoring systems, the FC-SDO-0824 delivers consistent switching performance, ensuring precise control of downstream devices to maintain operational efficiency. Its compact form factor simplifies cabinet installation, while compatibility with common industrial communication protocols enables seamless integration with PLCs and DCS systems. By prioritizing durability, flexibility, and ease of use, the FC-SDO-0824 meets the demands of 24/7 industrial operations, reducing downtime and supporting scalable control system designs.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
FC-SDO-0824
|
|
Product Type
|
Digital Output (DO) Module
|
|
Number of Output Channels
|
8 isolated channels
|
|
Output Voltage
|
24V DC (nominal); 18-30V DC (operating range)
|
|
Maximum Output Current per Channel
|
2A (continuous); 5A (peak, 1s)
|
|
Isolation
|
Channel-to-channel: 500V AC (rms); Channel-to-ground: 1000V AC (rms)
|
|
Operating Temperature Range
|
-25°C to +70°C (ambient); -40°C to +85°C (storage)
|
|
Communication Interface
|
Modbus RTU, Ethernet/IP (compatible with major PLC/DCS platforms)
|
|
IP Rating
|
IP20 (front panel); IP40 (when installed in a sealed cabinet)
|
|
Mounting Type
|
DIN rail (35mm standard)
|
Key Features and Benefits
High Reliability and Isolation
The FC-SDO-0824 incorporates robust galvanic isolation between channels and from ground, withstanding up to 1000V AC (rms) to prevent electrical interference and protect both the module and connected devices from voltage spikes or transients—common in industrial environments with heavy machinery. Each of the 8 channels operates independently, so a fault in one channel (e.g., short circuit) does not affect others, ensuring system uptime. The module’s output stages use high-quality solid-state relays (SSRs) instead of mechanical contacts, eliminating wear and tear from switching cycles and extending the module’s lifespan to over 100 million operations—ideal for high-cycle applications like packaging line solenoids.
Flexible Load Compatibility
With a maximum continuous output current of 2A per channel (5A peak), the
FC-SDO-0824 supports a wide range of industrial loads, from low-power indicator lights (10mA) to high-current contactors (2A). Its broad input voltage range (18-30V DC) accommodates fluctuations in industrial power supplies, ensuring stable performance even in areas with inconsistent voltage. Additionally, the module includes built-in surge protection (per IEC 61000-4-5) for each channel, safeguarding against voltage surges caused by load switching—critical for protecting sensitive devices like programmable relays.
Easy Integration and Configuration
The FC-SDO-0824 is designed for plug-and-play compatibility with major industrial control systems, supporting Modbus RTU (via RS-485) and Ethernet/IP protocols for seamless communication with PLCs (e.g., Siemens S7, Allen-Bradley CompactLogix) and HMI software. It can be configured via a web-based interface (no proprietary software required) or through the connected control system, allowing engineers to set output delays, fault thresholds, and diagnostic parameters in minutes. The module’s DIN rail mounting design (35mm standard) enables quick installation in control cabinets, while clearly labeled terminal blocks simplify wiring and reduce the risk of connection errors.
Comprehensive Diagnostics and Monitoring
To minimize downtime, the FC-SDO-0824 includes real-time diagnostic features that monitor channel status, output current, and power supply voltage. Faults such as overcurrent, open load, or voltage loss are detected instantly, with alerts transmitted to the control system via the communication protocol and indicated by LED lights on the front panel (green for normal operation, red for faults). The module also logs historical fault data, enabling maintenance teams to identify recurring issues and implement preventive measures—reducing unplanned outages in critical processes like automotive assembly or food processing.
Rugged Industrial Design
Built to withstand the rigors of industrial use, the FC-SDO-0824 operates in temperatures ranging from -25°C to +70°C, making it suitable for both cold storage facilities and hot manufacturing floors. It is resistant to dust, vibration (up to 5 g per IEC 60068-2-6), and humidity (95% non-condensing), ensuring reliable performance in harsh environments. The module’s flame-retardant plastic housing (UL 94 V-0) meets safety standards for electrical equipment, reducing fire risk in control cabinets with multiple components.
Related Models
- FC-SDO-0424 – Lower-channel variant of the FC-SDO-0824 (4 output channels) for small-scale control systems or applications with minimal load requirements.
- FC-SDO-1624 – Higher-density upgrade of the FC-SDO-0824 (16 output channels) for large-scale automation systems like automotive assembly lines.
- FC-SDO-0848 – 48V DC version of the FC-SDO-0824, compatible with high-voltage industrial loads such as large relays or motors.
- FC-SDI-0824 – Digital input (DI) companion module to the FC-SDO-0824, featuring 8 isolated input channels for monitoring sensors (e.g., limit switches, photoelectric sensors).
- FC-SDO-0824-EX – Explosion-proof variant of the FC-SDO-0824, certified for Zone 1/2 hazardous areas (ATEX/IECEx compliant) for use in petrochemical or pharmaceutical facilities.
- FC-SDO-0824-HV – High-current version of the FC-SDO-0824, supporting up to 5A continuous output per channel for heavy-duty loads like small motors.
- FC-SDO-0824-W – Weatherproof version of the FC-SDO-0824 (IP65 rating) for outdoor applications such as wastewater treatment plant pumps or solar panel control systems.
- FC-MODBUS-GW – Communication gateway module compatible with the FC-SDO-0824, enabling integration with non-Modbus/Ethernet/IP control systems (e.g., Profibus DP).
Typical Application Areas
- Manufacturing Automation: Used in automotive assembly lines to control solenoid valves for part clamping, relay-driven conveyor motors, and indicator lights for process status. The FC-SDO-0824’s independent channel isolation ensures a single fault does not stop the entire line, maintaining high production throughput.
- Packaging Machinery: Deployed in horizontal form-fill-seal (HFFS) machines and labeling systems to switch pneumatic actuators (for sealing jaws) and drive motors for film unwinding. Its high switching cycle life (100M+ operations) supports 24/7 packaging of consumer goods.
- Food and Beverage Processing: Integrated into filling lines to control valve manifolds for liquid dispensing and contactors for heating elements. The module’s resistance to humidity and dust (IP40) ensures compliance with food safety standards (e.g., FDA, EHEDG).
- Water and Wastewater Treatment: Used to control pump motors, valve actuators, and alarm systems in treatment plants. The FC-SDO-0824’s wide temperature range (-25°C to +70°C) allows deployment in outdoor pump stations or cold storage areas for chemical dosing.
As a certified partner of industry leaders such as Siemens, Bentley Nevada, and Honeywell, we provide professional pre-sales and after-sales service. We offer a one-year warranty for the FC-SDO-0824 and all our industrial control products, covering manufacturing defects and providing prompt technical support for configuration, integration, or troubleshooting. If you cannot find the model you need, or require assistance with system design (e.g., matching the module to specific loads), please contact us immediately.
