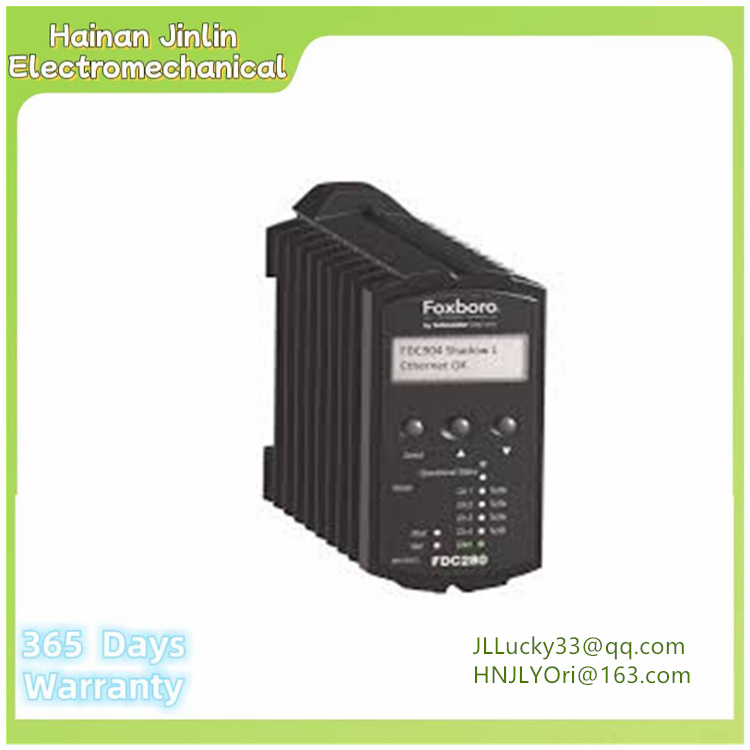

Model: FDC280
Category: Distributed control system
Brand: Foxboro
Operating temperature: -20 to 60°C (-4 to 140°F)
Storage temperature: -40 to +70°C (-40 to +158°F)
Operating relative humidity: 5 to 95% (non-condensing)
Relative humidity storage: 5 to 95% (non-condensing)
Working altitude: Maximum +3,000 m (+10,000 ft)
Altitude storage: -300 to +12,000 m (-1,000 to +40,000 ft) | according to MIL-STD 810G, method 500.5, PI
Height: 105 mm (4.13 in) or 116 mm (4.59 in), including mounting lugs
Width: 51.8 mm (2.04 in)
Depth: 147 mm (5.80 in)
Weight: Single non-fault-tolerant module 0.8 kg (1.78 lb)
Shipping weight: 2 kg
trait
Liquid Crystal Display (LCD) - Displays letter errors and real-time roles and status.
Supports multiple network connections - Ethernet, RS232, RS485, RS422.
50% less footprint and wiring compared to the CP plus FDSI solution.
Online downloadable and upgradeable protocol drivers.
Drivers include:
Serial (RS232; RS422; RS485 RS485 port) :
Modbus RTU.
Ethernet:
Modbus TCP client.
TSAA (Triconex™ System Access).
OPC UA client.
Ethernet /IP scanner.
advantage
Reduce engineering work and installation footprint.
Reduce cost of ownership with future-proof design.
Greater flexibility in control system design/implementation.
Apply
Hydrocarbon processing.
Chemicals and specialty chemicals.
Upstream oil and gas.
Generate electricity.
Metals and mining.
Water and wastewater.
Pharmaceutical and life sciences.
